Home
>>
BMW
>>
2009
>>
750Li (F02) V8-4.4L Turbo (N63)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Audio, Video, Navigation, Telephone (MOST Ring)
>>
Rear Seat Entertainment (RSE Rear-Cabin Entertainment System Mid or RSE Rear-Seat Entertainment System, High)
>>
Rear Seat Entertainment (As of 09/08 Up to 03/09 Or RSE, High or (RSE Mid with DVDC))
Rear Seat Entertainment (As of 09/08 Up to 03/09 Or RSE, High or (RSE Mid with DVDC))

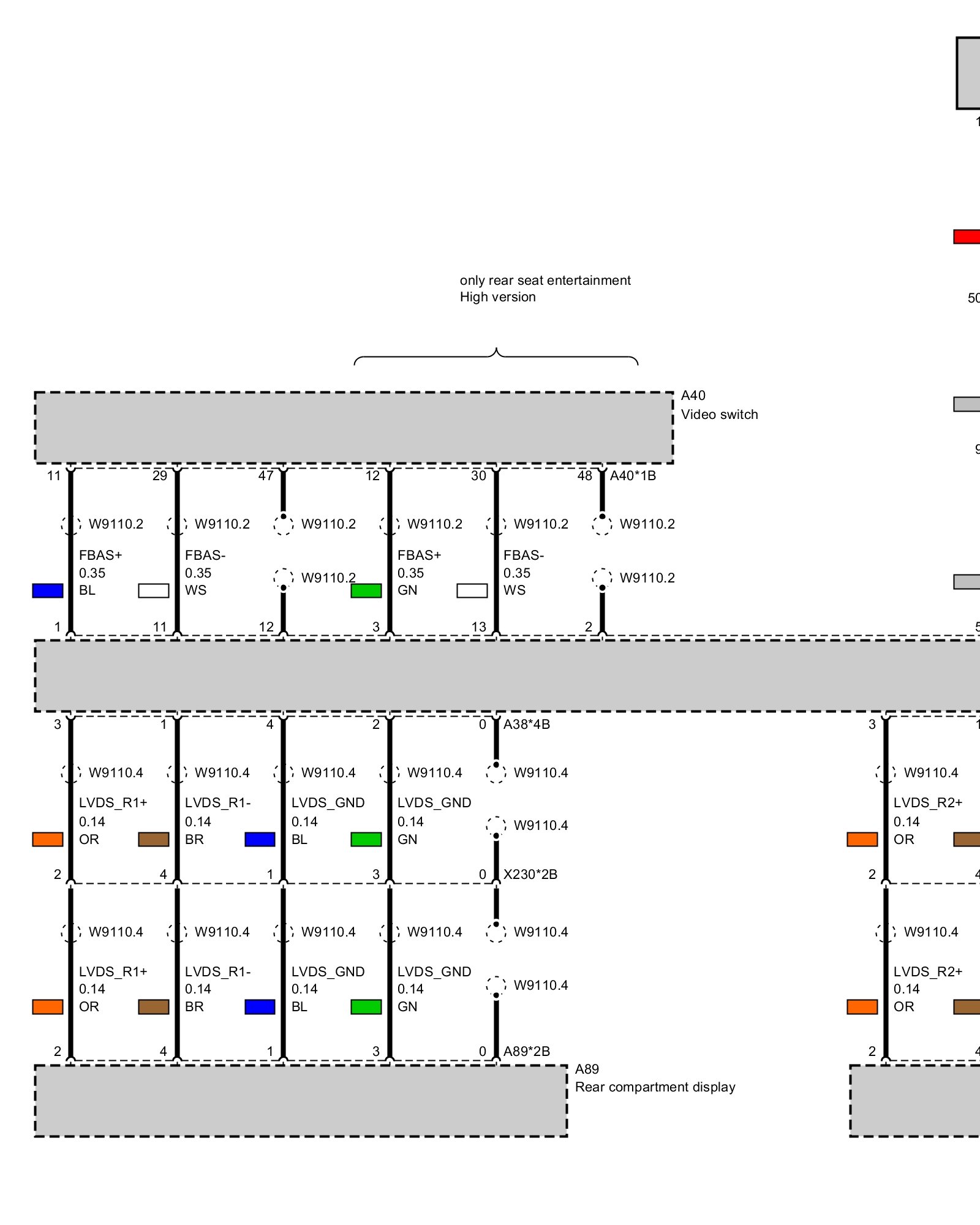

Rear seat entertainment
