750Li (F02) V8-4.4L Turbo (N63)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X6
>>
X60002
X60002
X60002 (N63 Engine)
A46 Digital Motor Electronics
Pin assignments X60002
Pin 1 To 14:

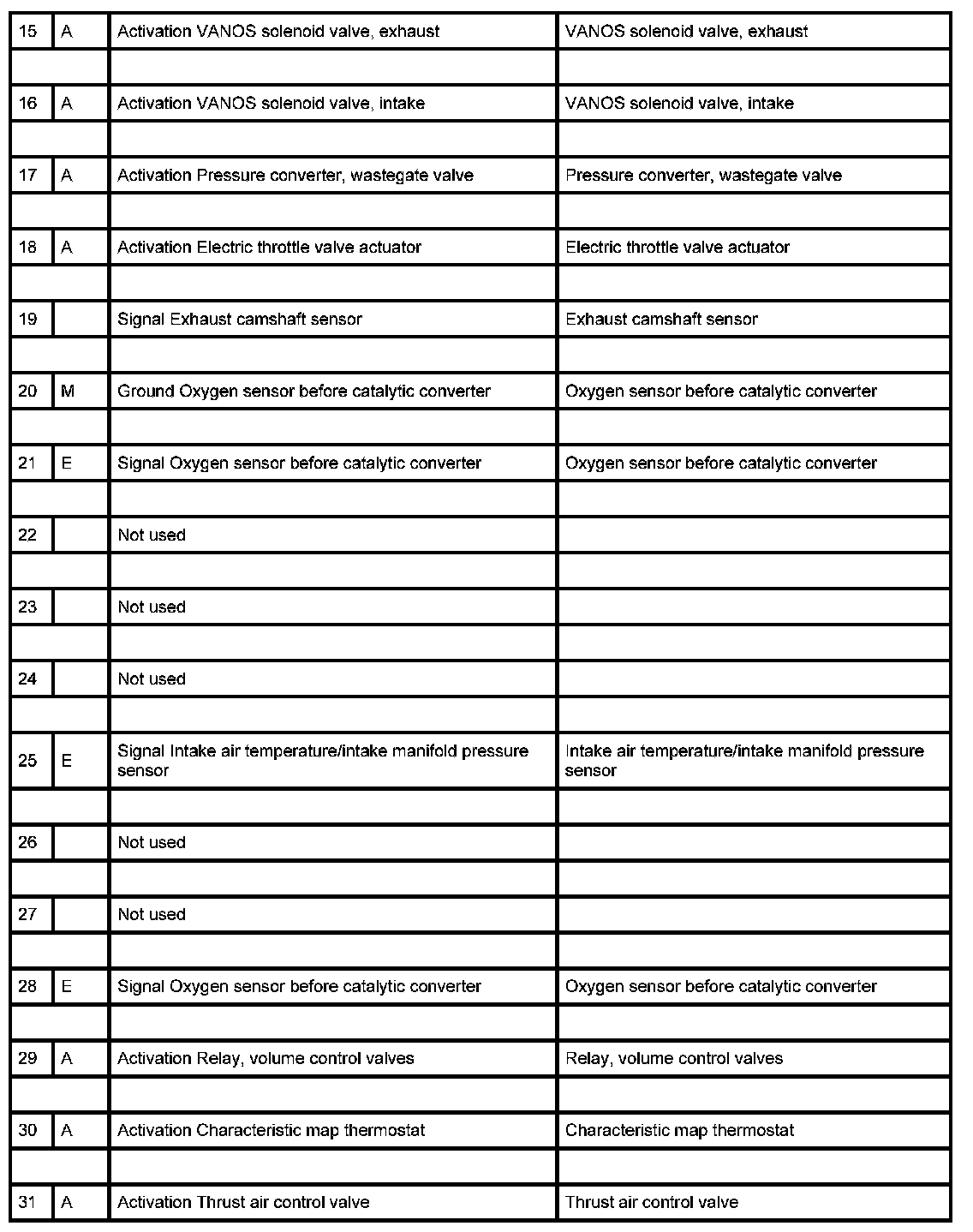

Pin 15 To 31:

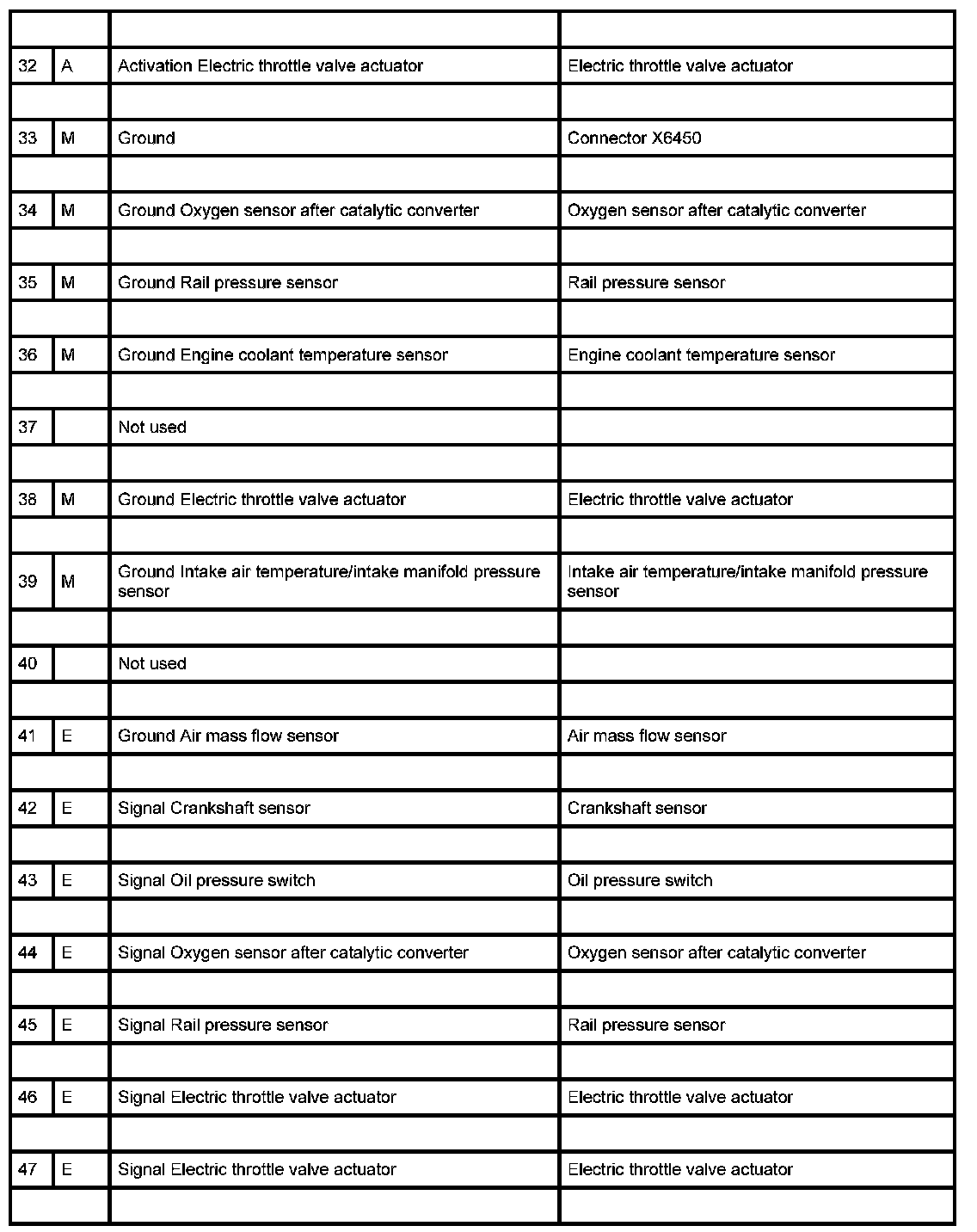

Pin 32 To 47:

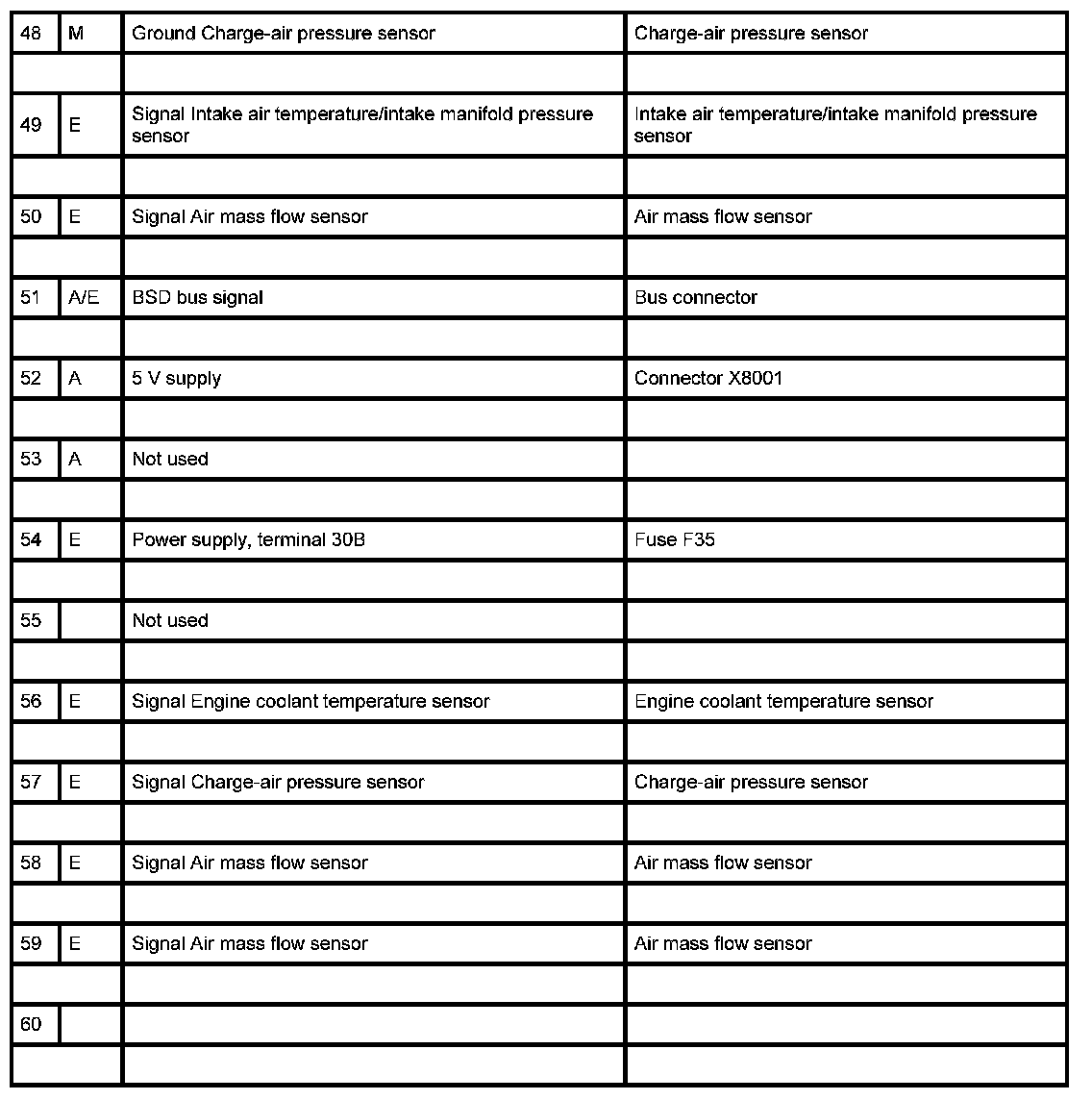

Pin 48 To 60:

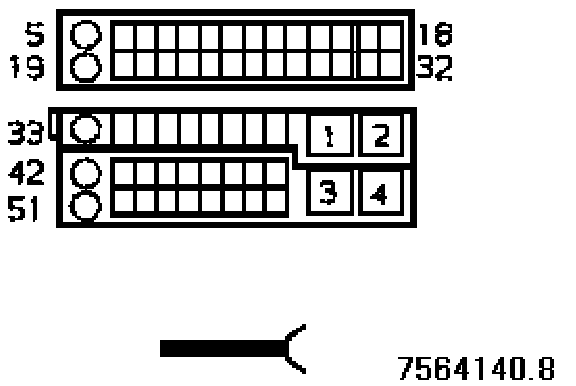

X60002 No Adapter
