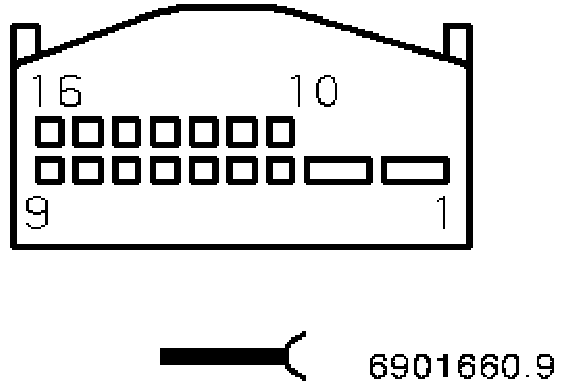

A98_1B
A98_1B
A98_1B
A98
Fuel Pump
Control (EKPS)

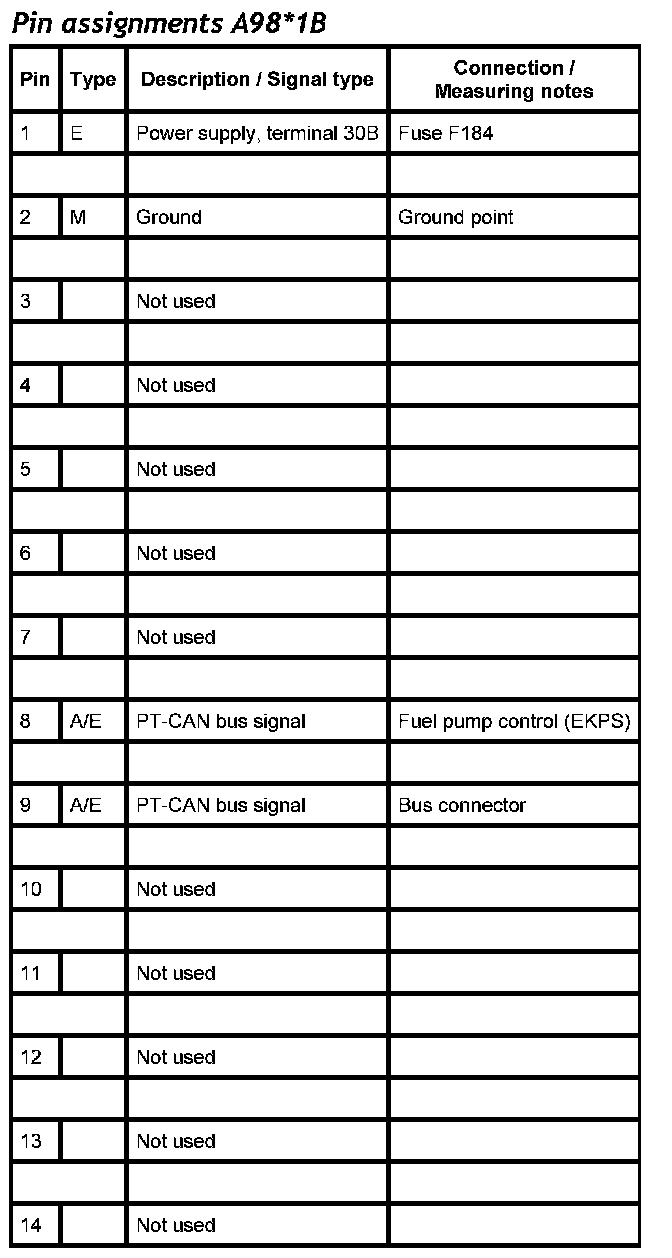

Pin 1 To 14:

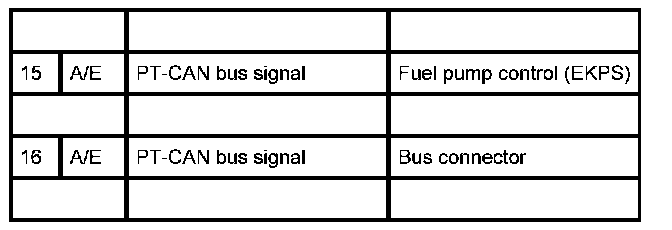

Pin 15 To 16:
A98*1B Adapter 631030, Storage Location P211
