A95 Heating/Air Conditioning System (Without FKA Rear-Cabin Automatic A/C)

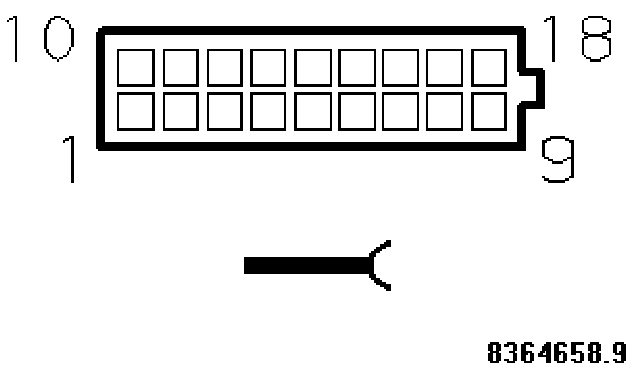

A95_2B

A95 Heating/Air Conditioning System (Without FKA Rear-Cabin Automatic A/C)

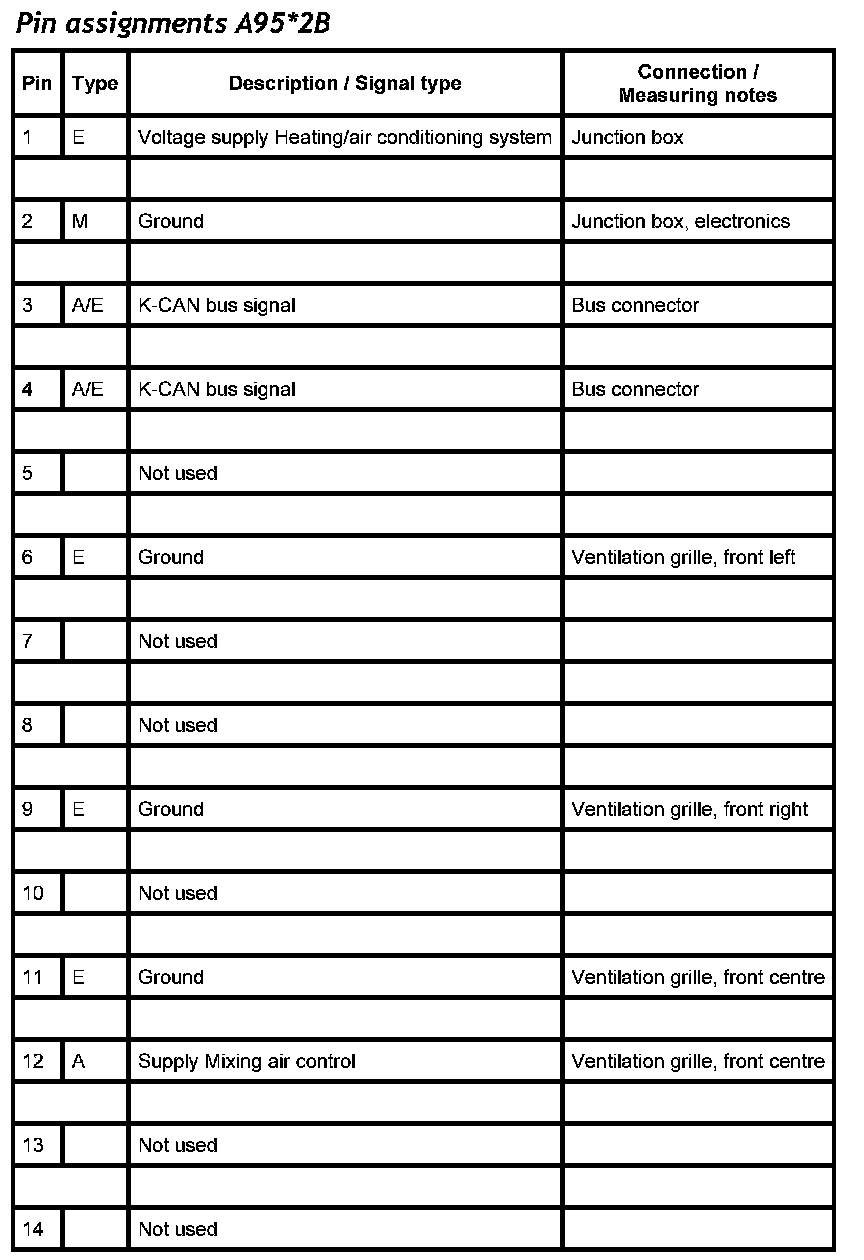

Pin 1 To 14:

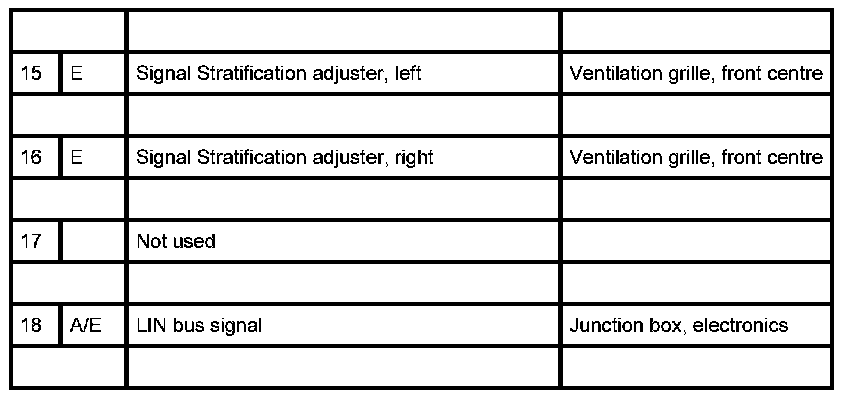

Pin 15 To 18:






A95*2B Adapter 614470, Storage Location C110
