A93 Driver's Seat Module (Lumbar Support, Driver/Passenger With Active Seat For Driver/Passenger)

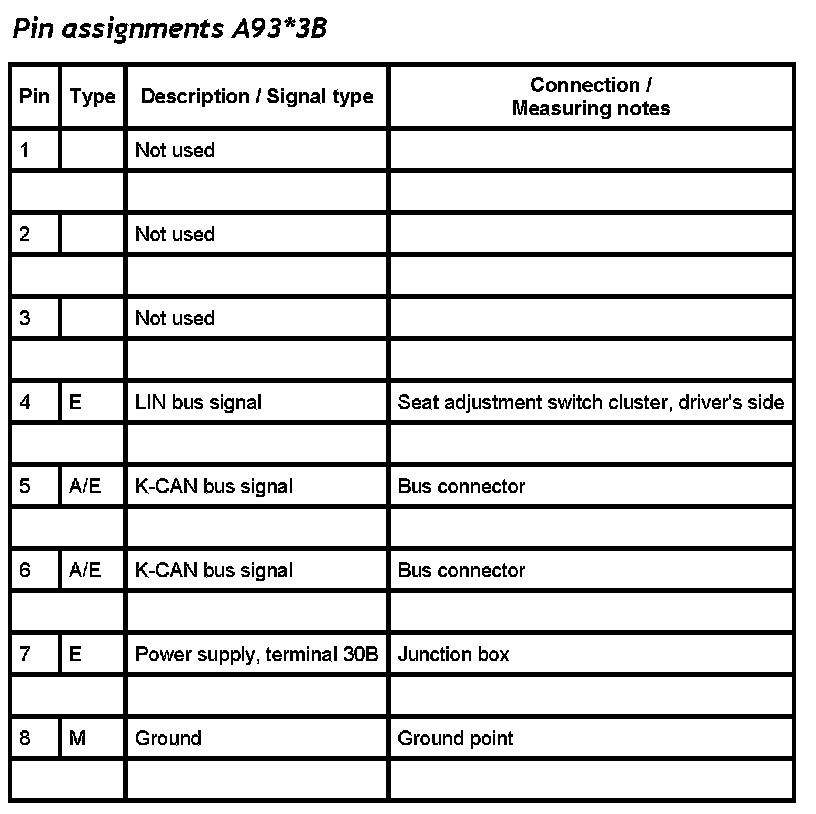

A93_3B

A93 Driver's Seat Module (Lumbar Support, Driver/Passenger With Active Seat For Driver/Passenger)







A93*3B Adapter 612180, Storage Location P208
