A91_1B



A91_1B

A91 Dynamic Stability Control (DSC)

Pin 1 To 15:




Pin 16 To 32:

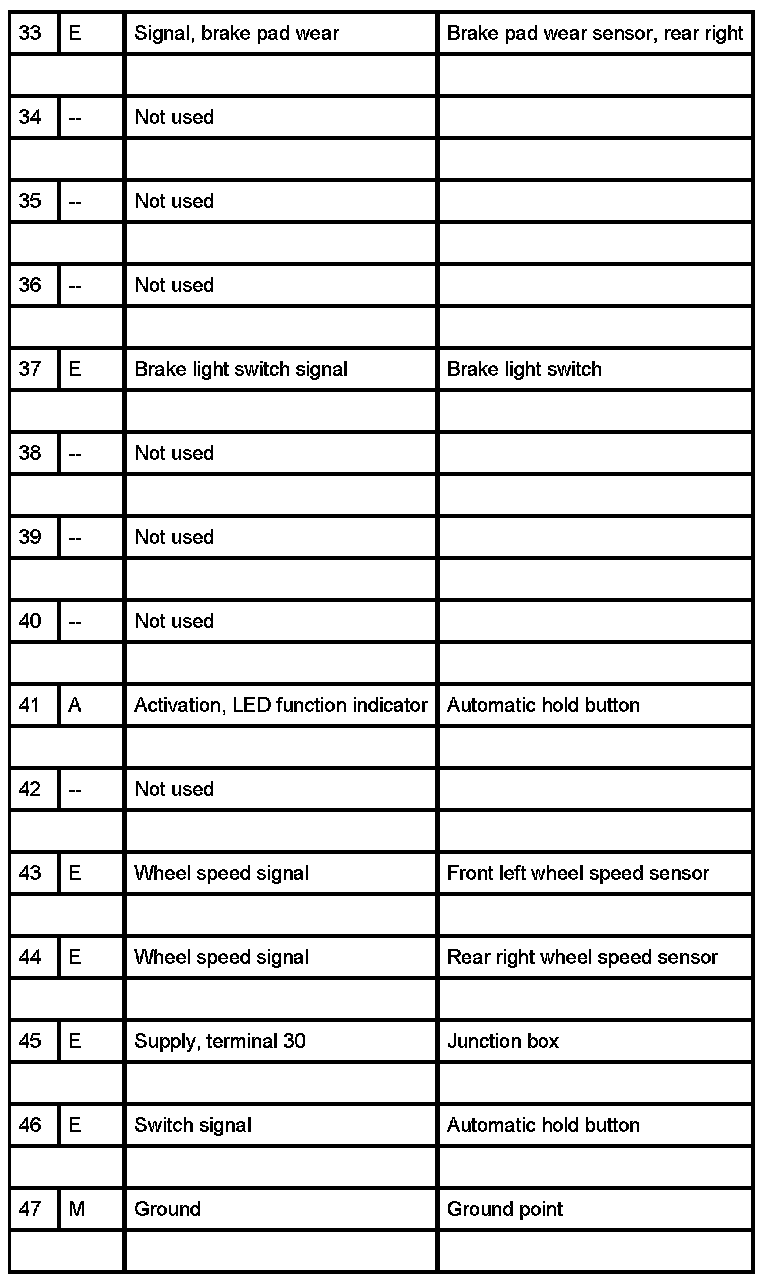

Pin 33 To 47:

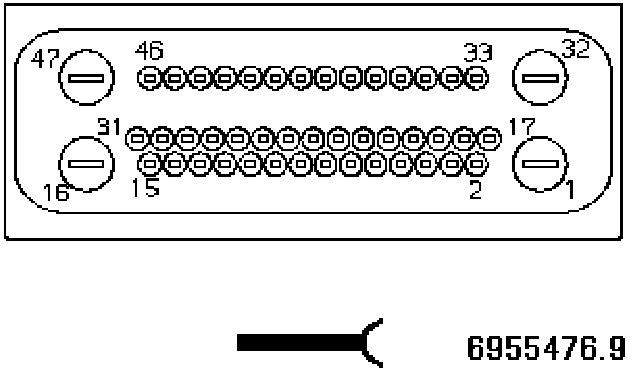

A91*1B Adapter 345250, Storage Location N205
