A77_4B
A77_4B
A77_4B

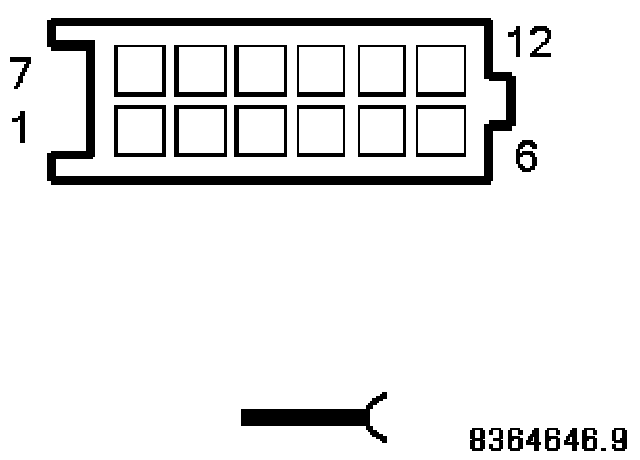

A77 Rear Axle King Pin Inclination Control

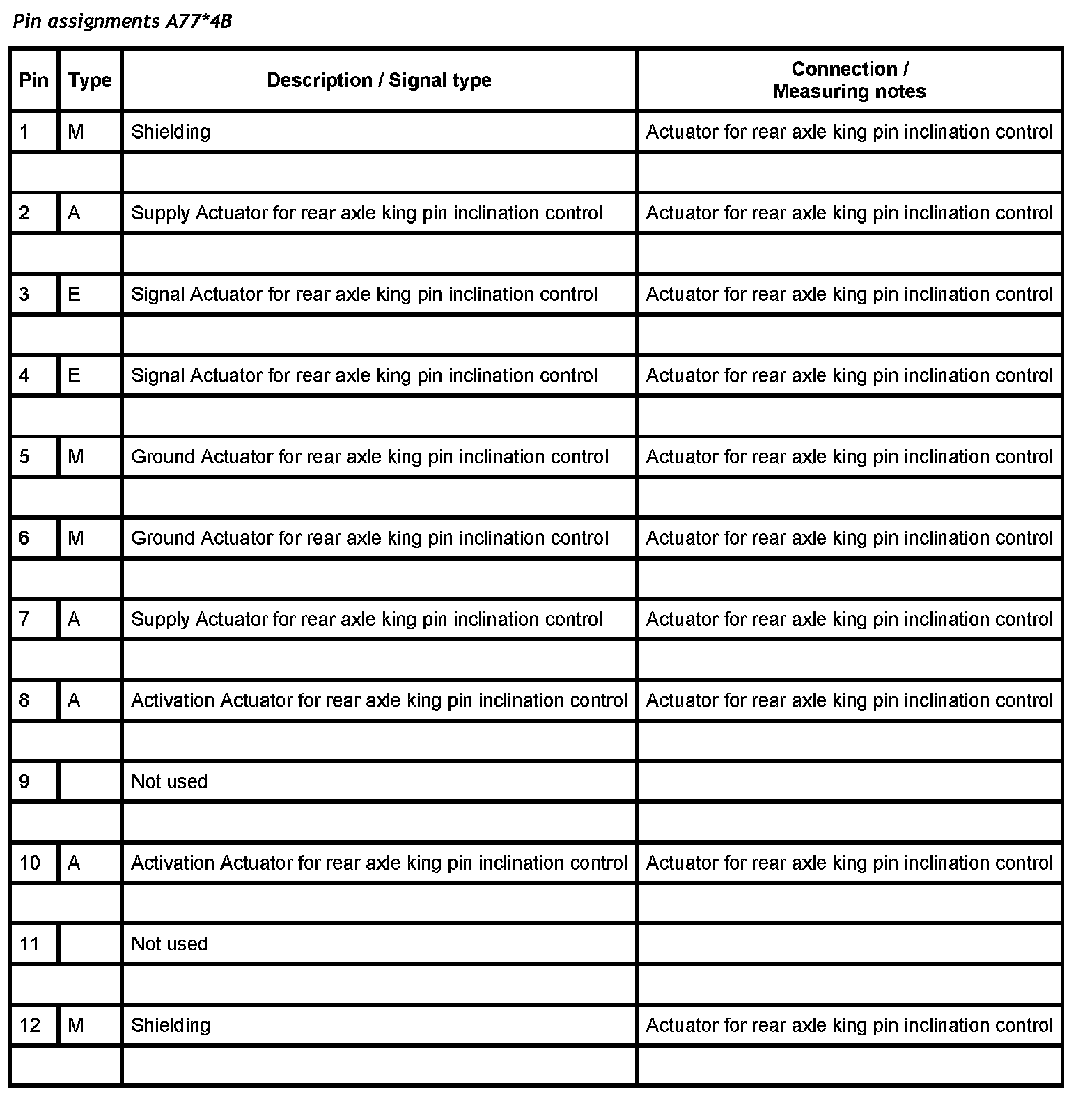

A77*4B Adapter 614480, Storage Location C111
