A77_1B
A77_1B
A77_1B
A77 Rear Axle King Pin Inclination Control

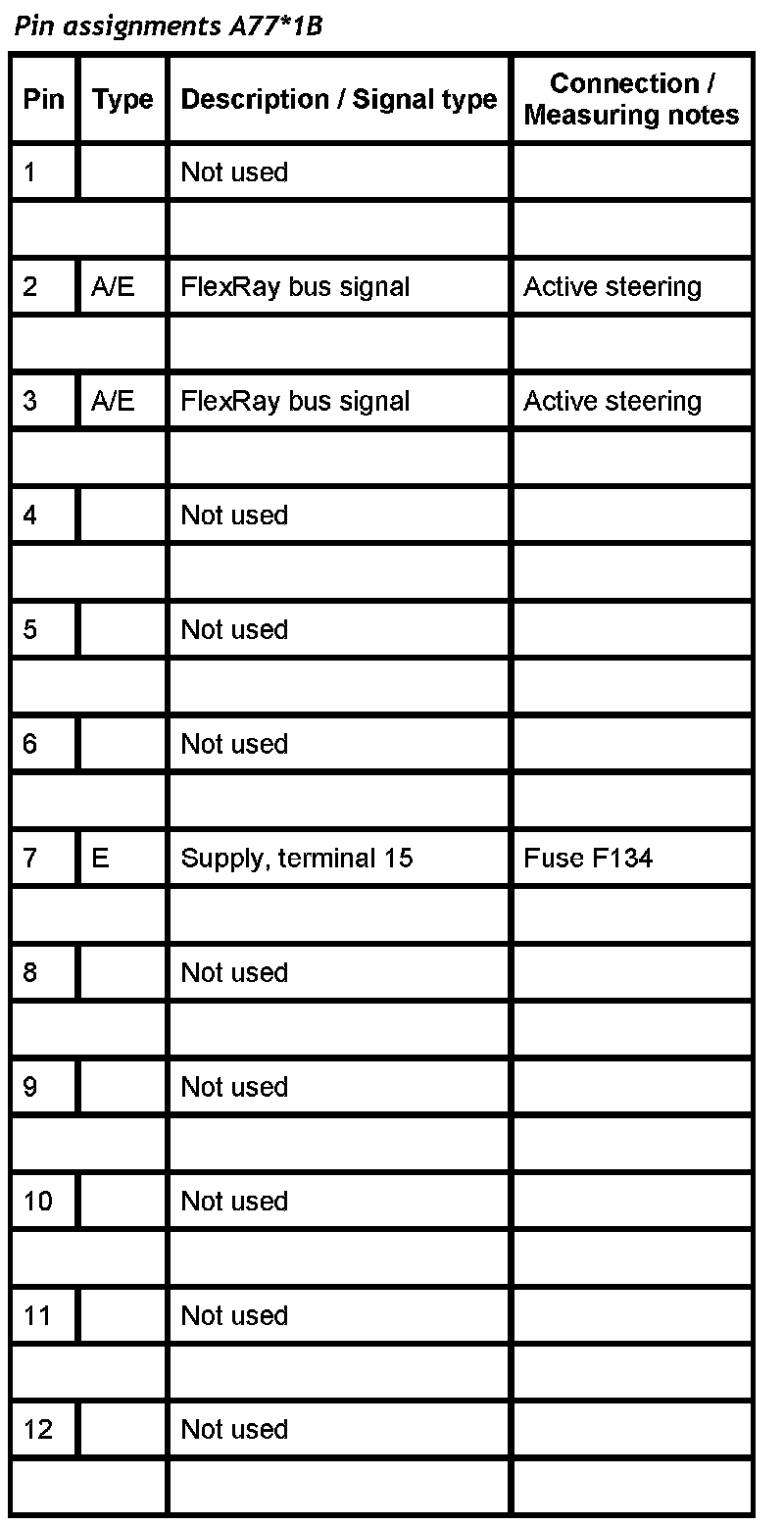

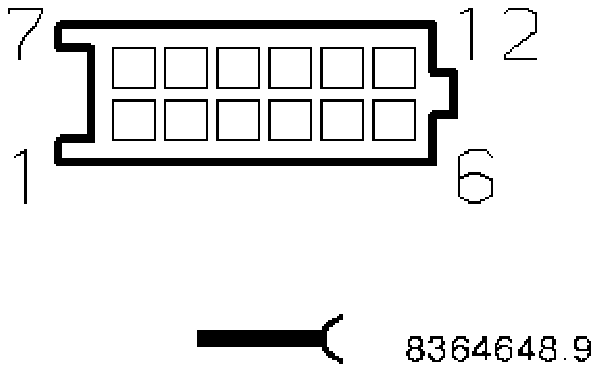

A77*1B Adapter 614480, Storage Location C111
