A60_1B
A60_1B
A60_1B
A60 Electrochromic Interior Rear View Mirror

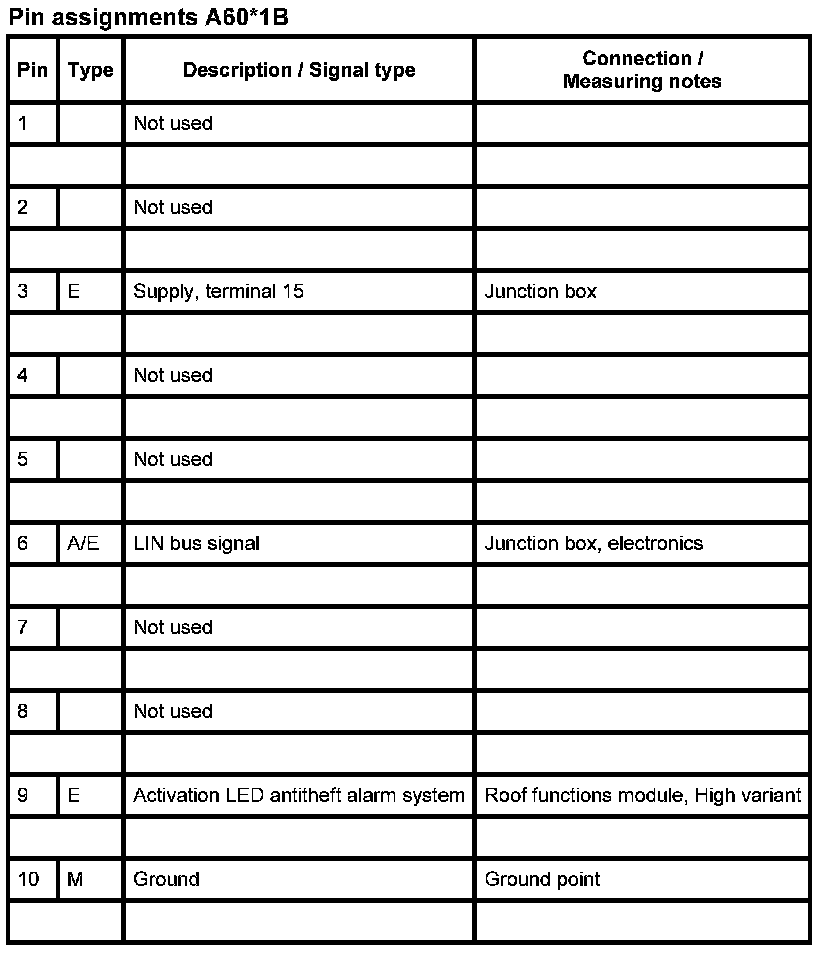

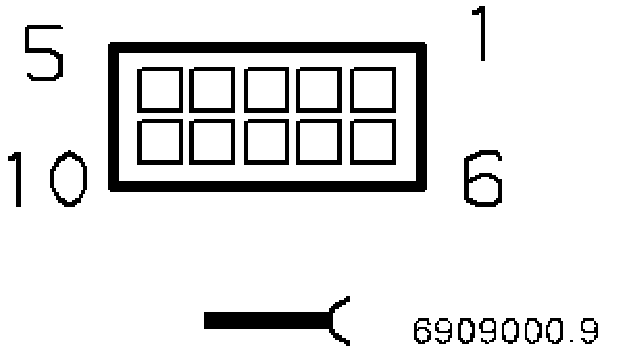

A60*1B Adapter 616035, Storage Location D111
