BMW
>>
2009
>>
750Li (F02) V8-4.4L Turbo (N63)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From A
>>
A58_2B
A58_2B
A58_2B

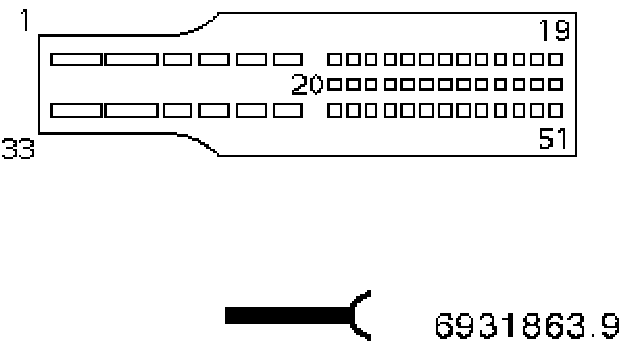

A58 Footwell Module

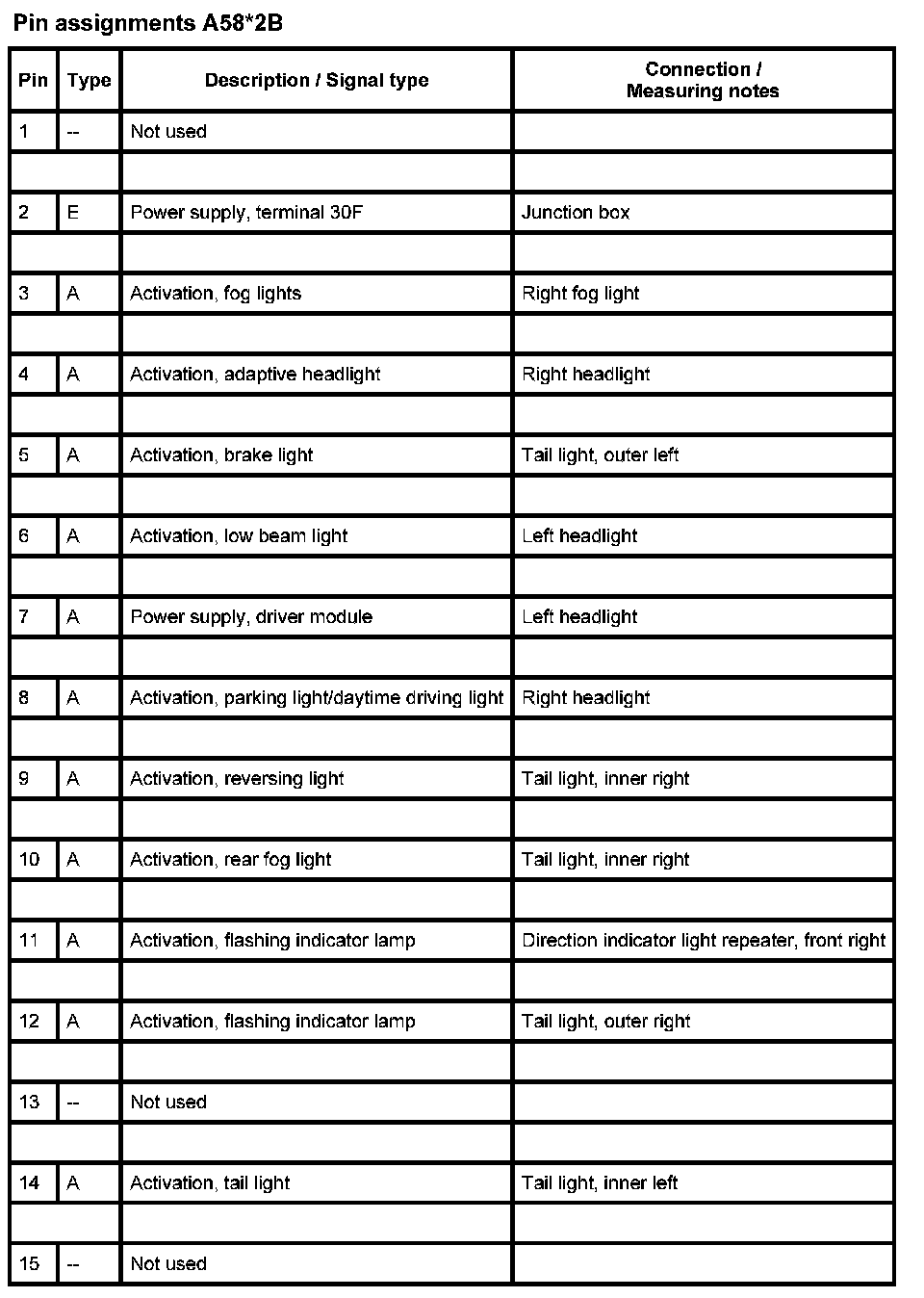

Pin 1 To 15:

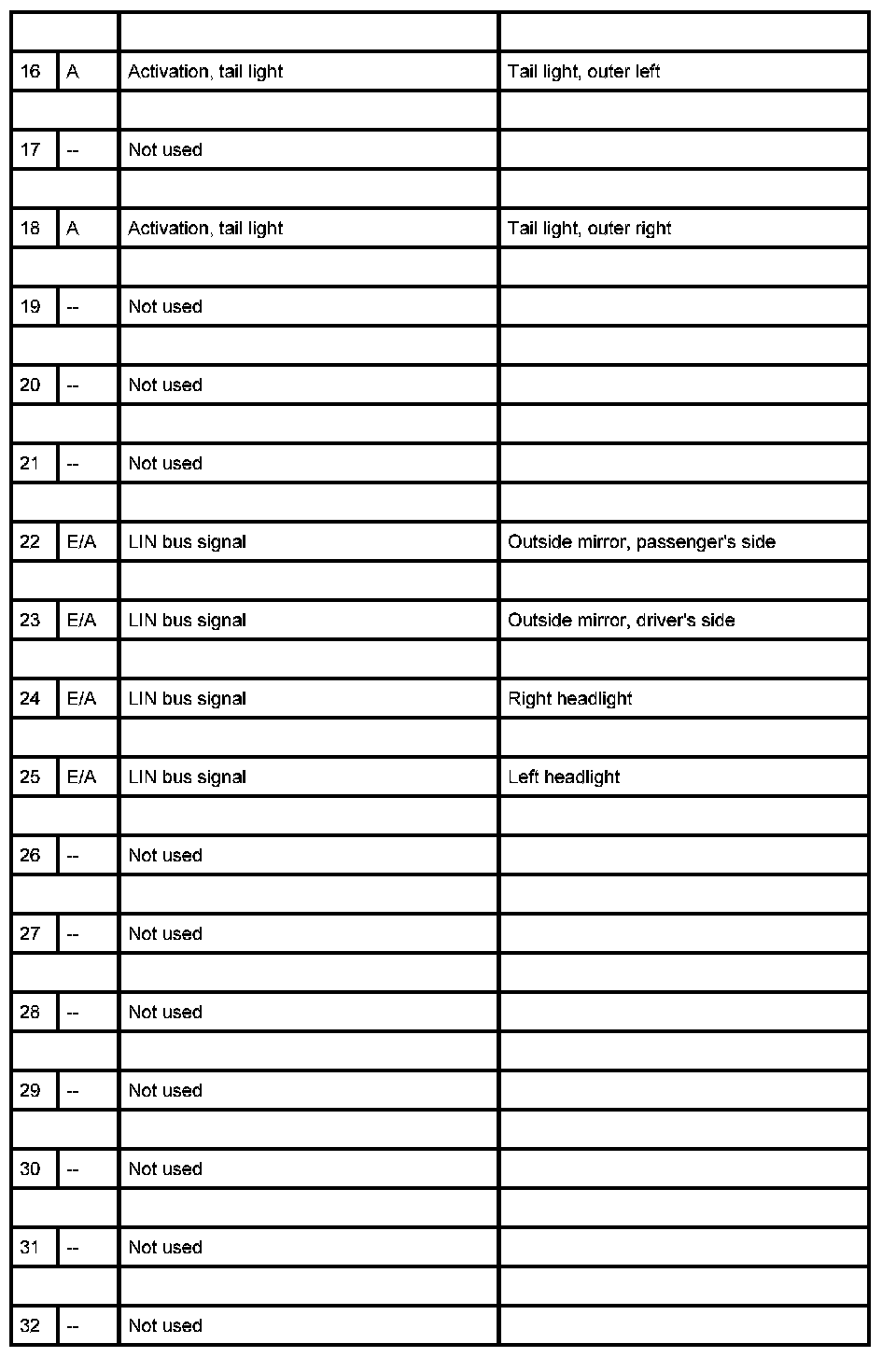

Pin 16 To 32:

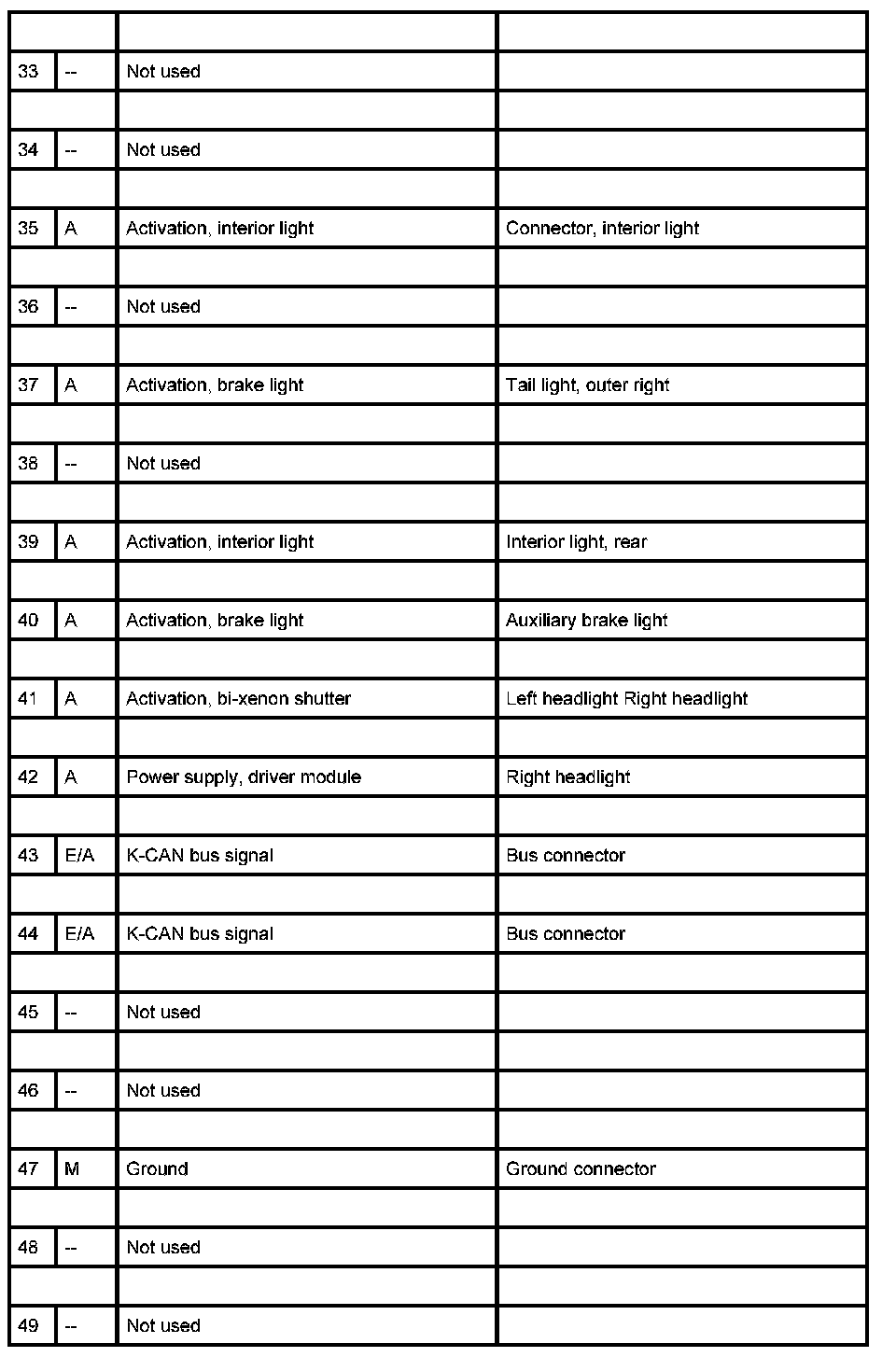

Pin 33 To 49:

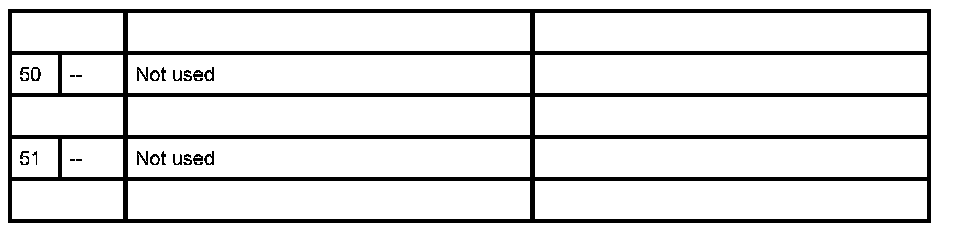

Pin 50 To 51:
A58*2B Adapter 612340, Storage Location F101
