BMW
>>
2009
>>
750Li (F02) V8-4.4L Turbo (N63)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From A
>>
A58_1B
A58_1B
A58_1B
A58 Footwell Module

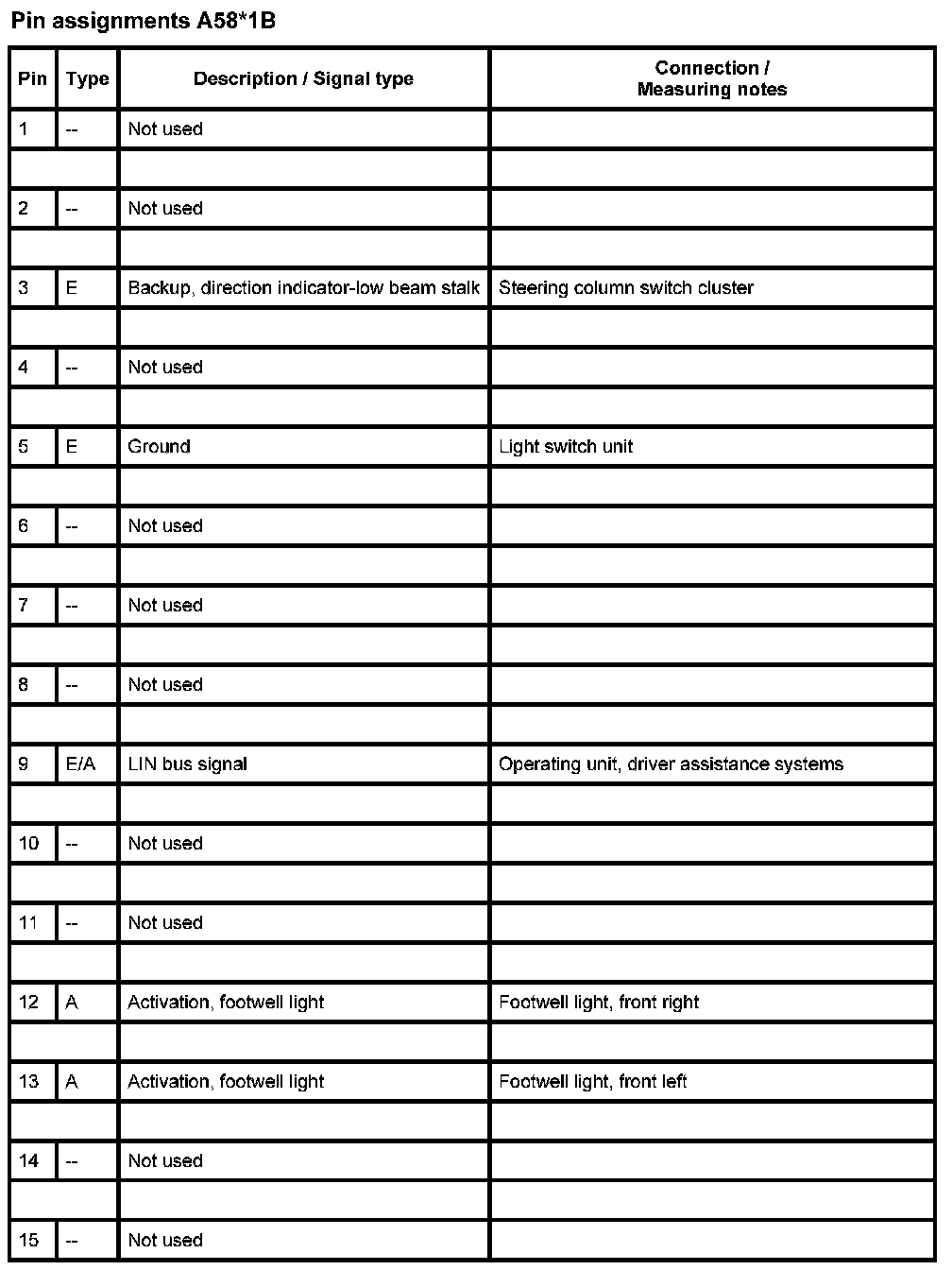

Pin 1 To 15:

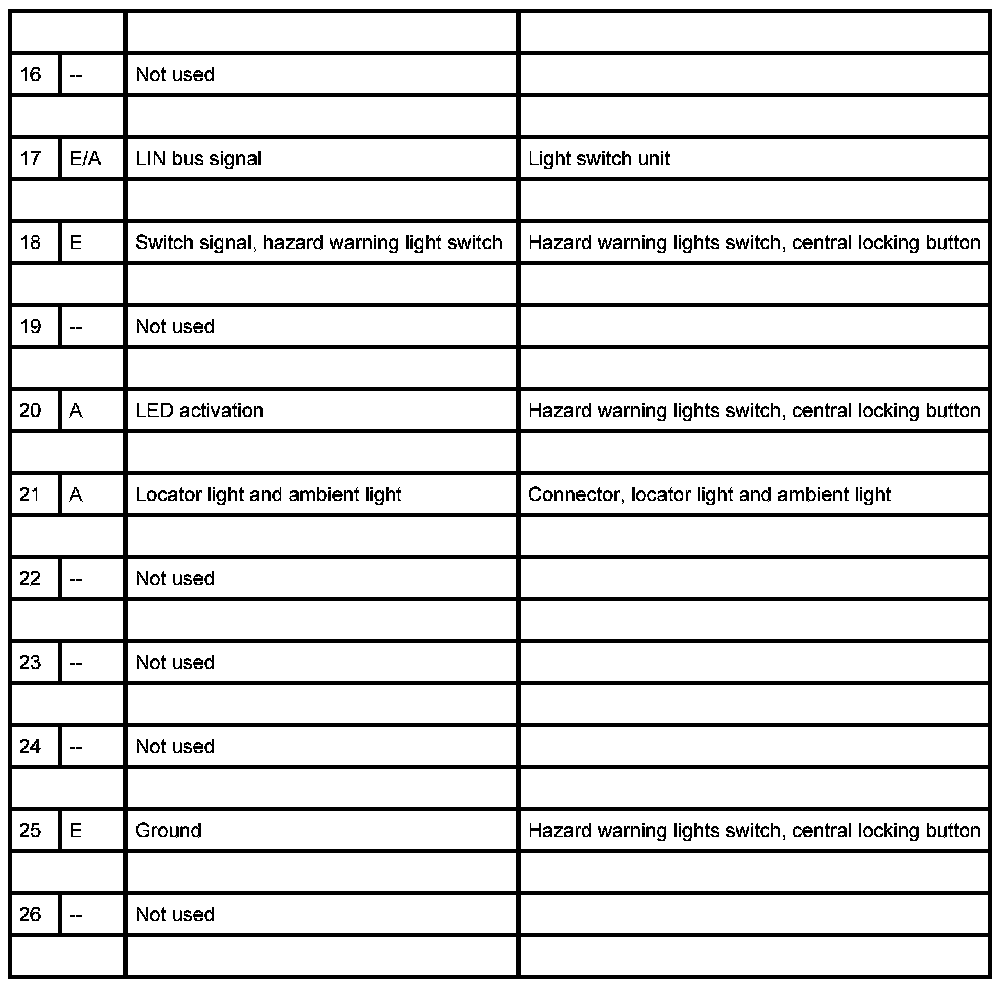

Pin 16 To 26:

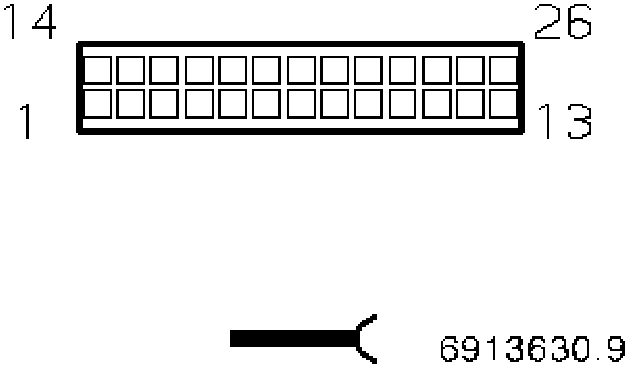

A58*1B Adapter 614464, Storage Location C109
