Home >> BMW >> 2009 >> 750Li (F02) V8-4.4L Turbo (N63) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From A >> A51_3B

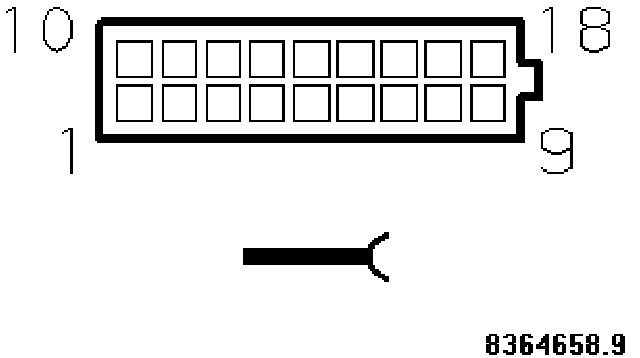

A51_3B



A51_3B

A51 Central Gateway Module

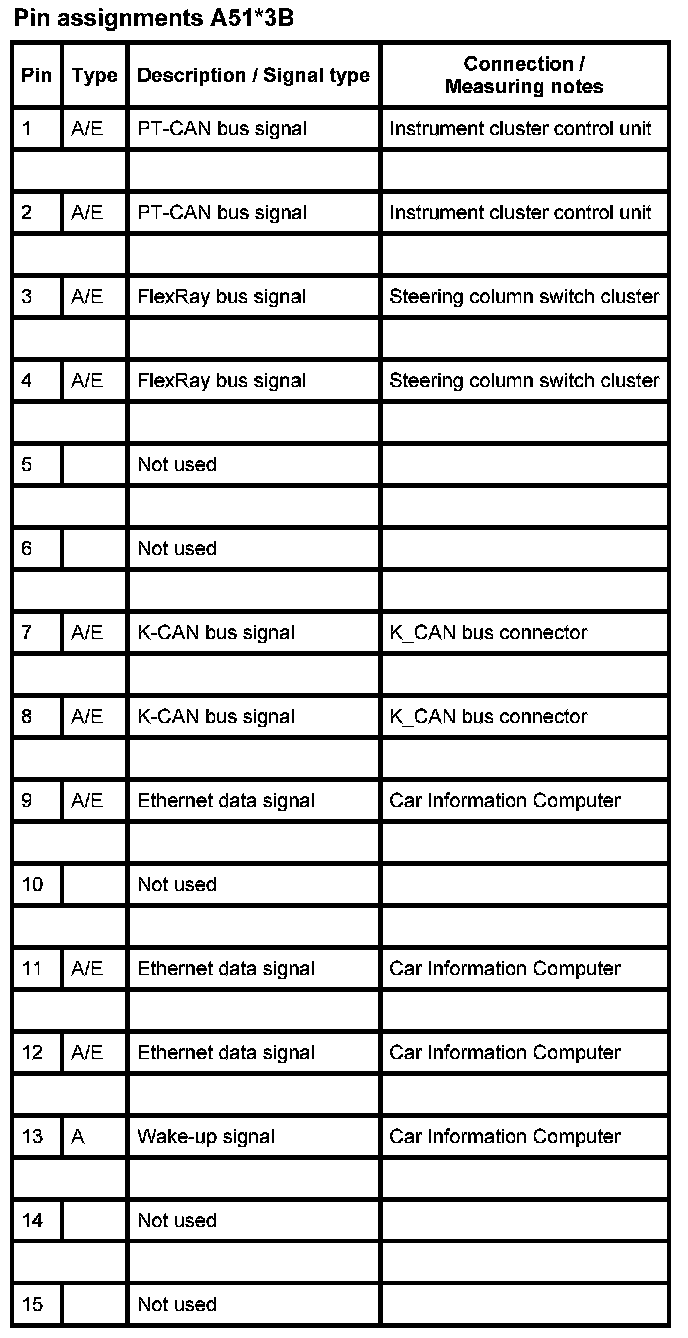

Pin 1 To 15:

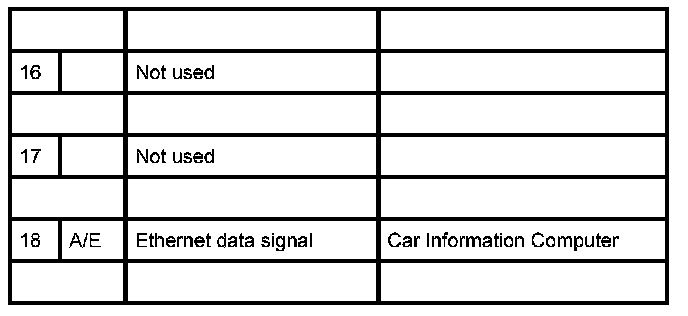

Pin 16 To 18:






A51*3B 614470, Storage Location C110
