750Li (F02) V8-4.4L Turbo (N63)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From A
>>
A51_1B
A51_1B
A51_1B

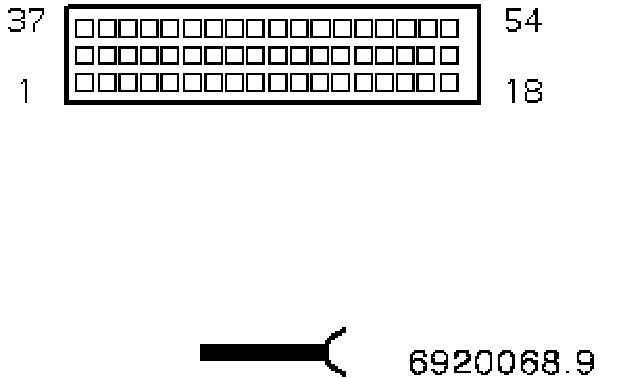

A51 Central Gateway Module

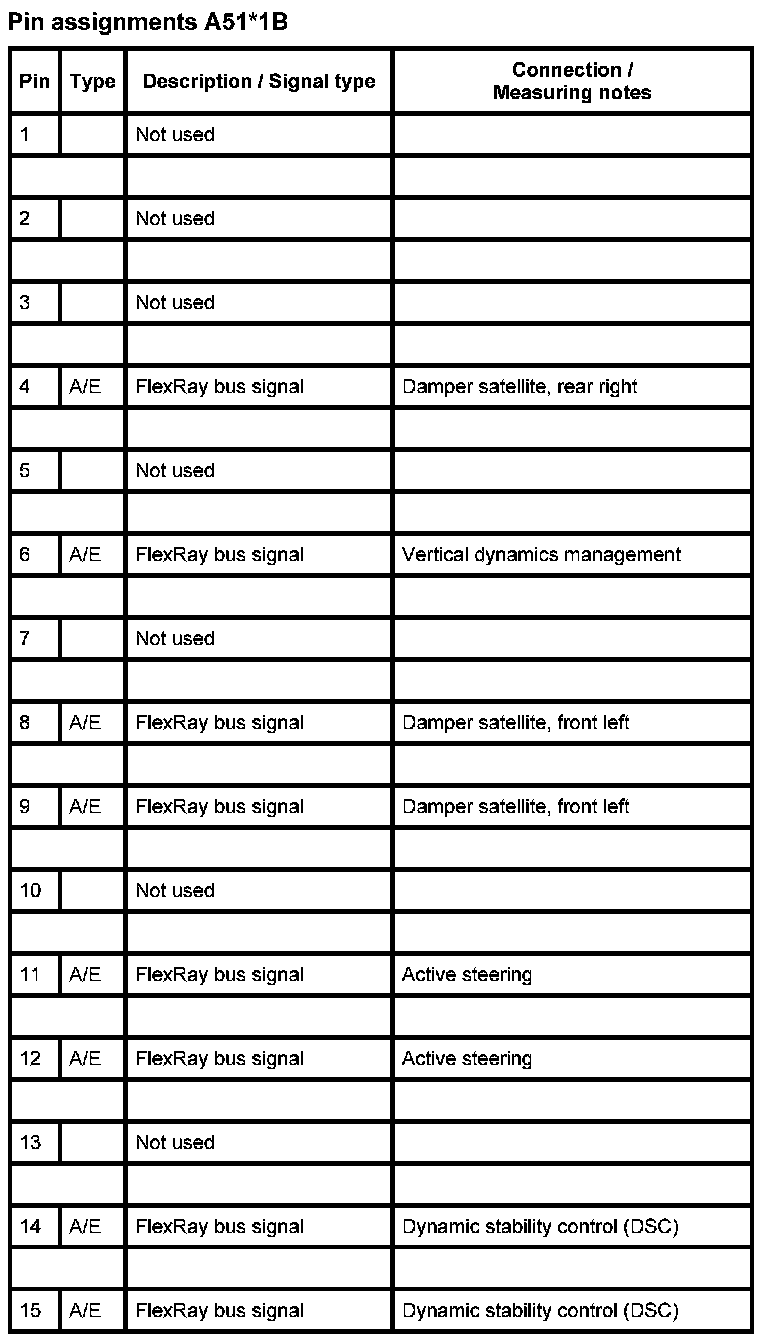

Pin 1 To 15:
Pin 16 To 32:

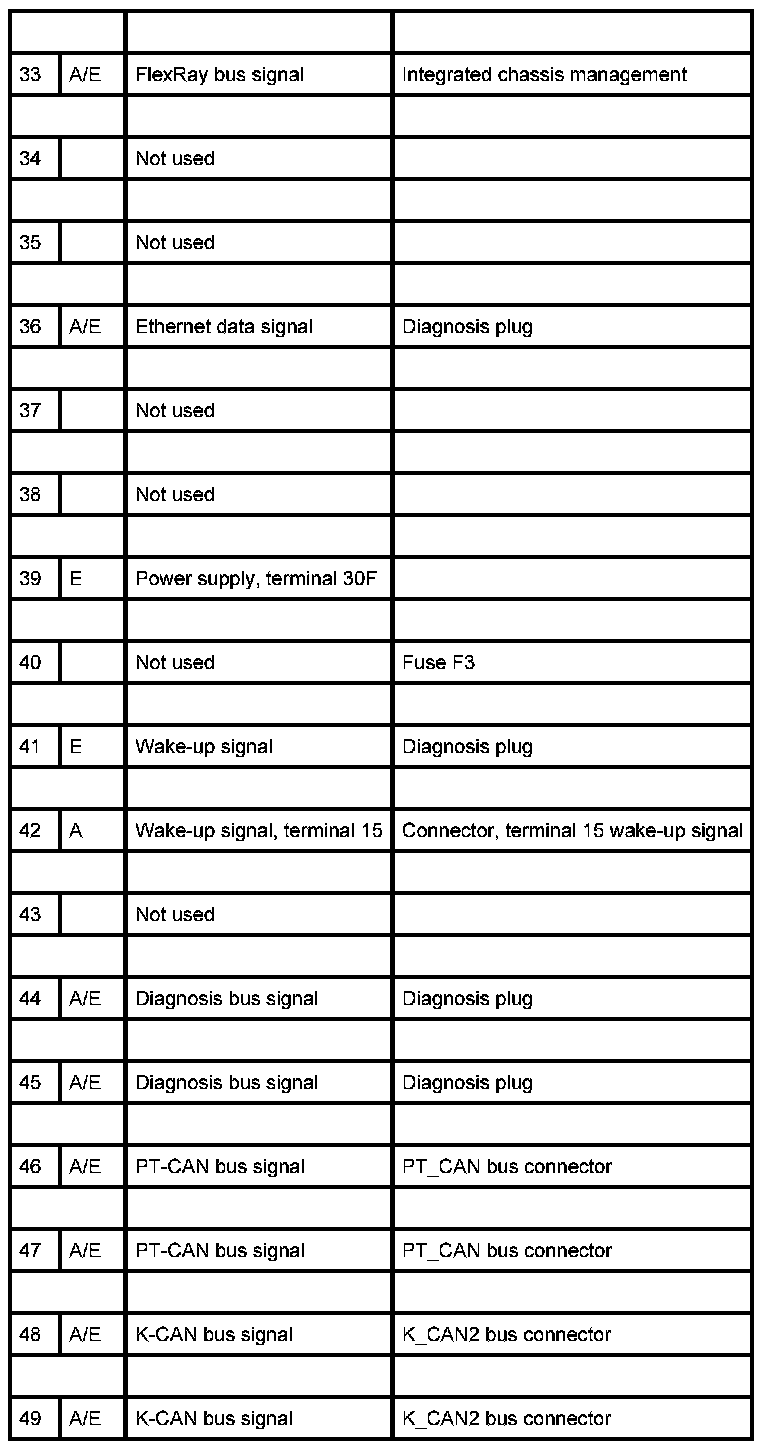

Pin 33 To 49:
Pin 50 To 54:
A51*1B Adapter 630410, Storage Location L201
