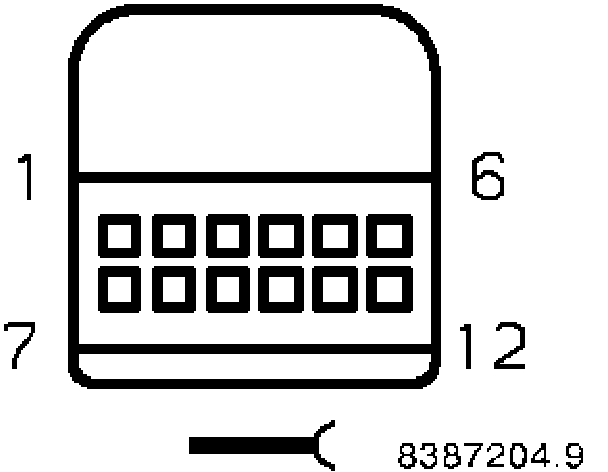

A4 Rear Passenger's Side Seat Module (Massage Function In Rear Seat Backs)

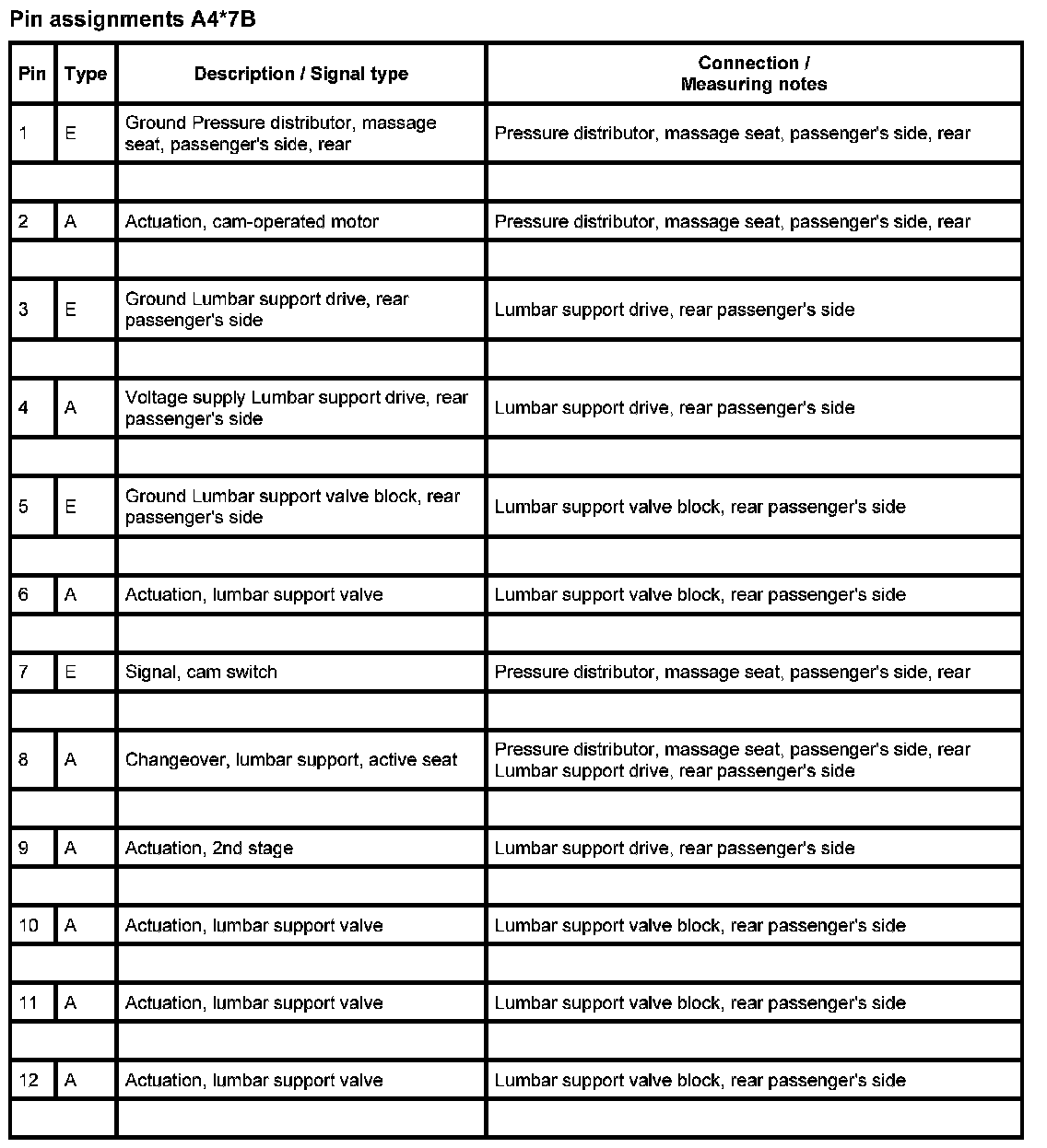

A4_7B

A4 Rear Passenger's Side Seat Module (Massage Function In Rear Seat Backs)







A4*7B Adapter Is Being Developed
