A4 Rear Passenger's Side Seat Module (Without Massage Function In Rear Seat Backs)

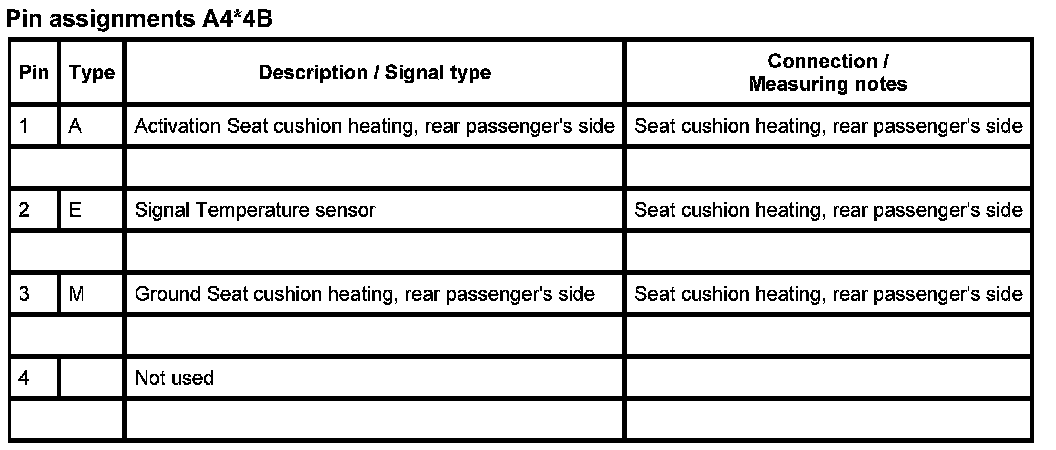

A4_4B

A4 Rear Passenger's Side Seat Module (Without Massage Function In Rear Seat Backs)







A4*4B Adapter 612160, Storage Location P206
