A4 Rear Passenger's Side Seat Module (Without Massage Function In Rear Seat Backs)

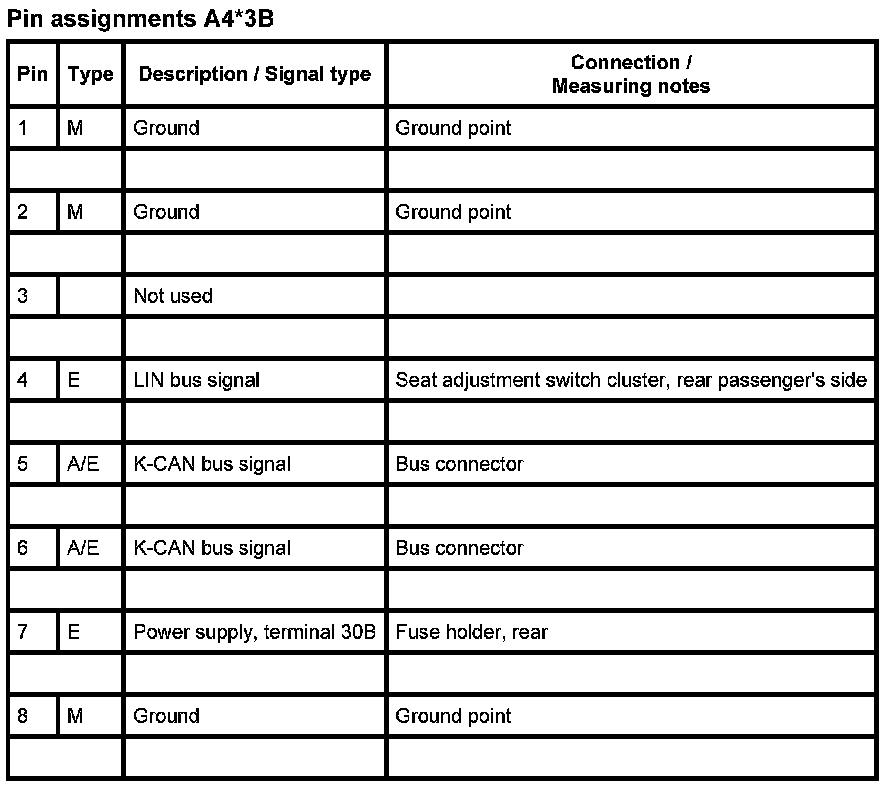

A4_3B

A4 Rear Passenger's Side Seat Module (Without Massage Function In Rear Seat Backs)







A4*3B Adapter 612180, Storage Location P208
