A4 Rear Passenger's Side Seat Module (Massage Function In Rear Seat Backs)



A4 Rear Passenger's Side Seat Module (Massage Function In Rear Seat Backs)

Pin assignments A4*2B

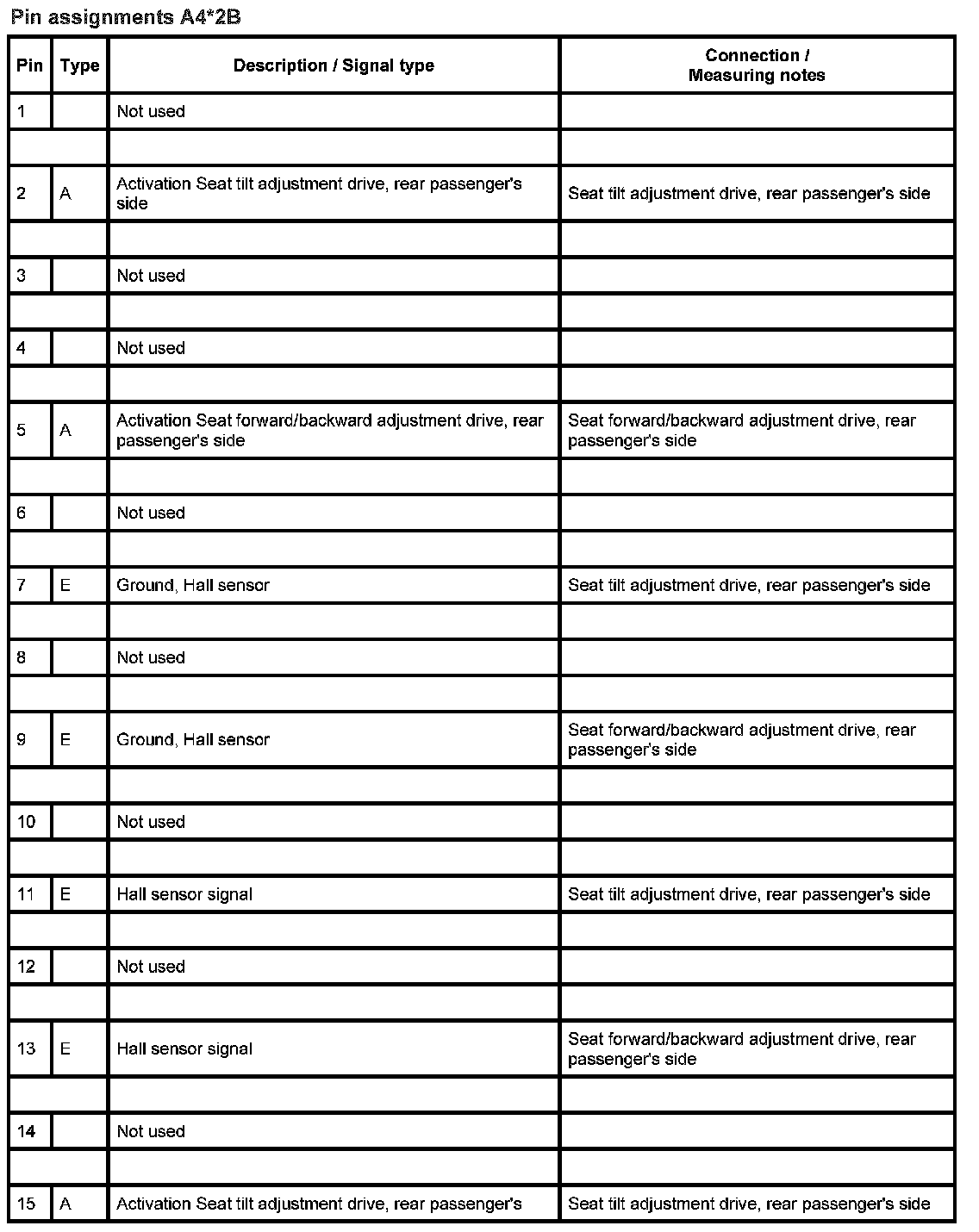

Pin 1 To 15:

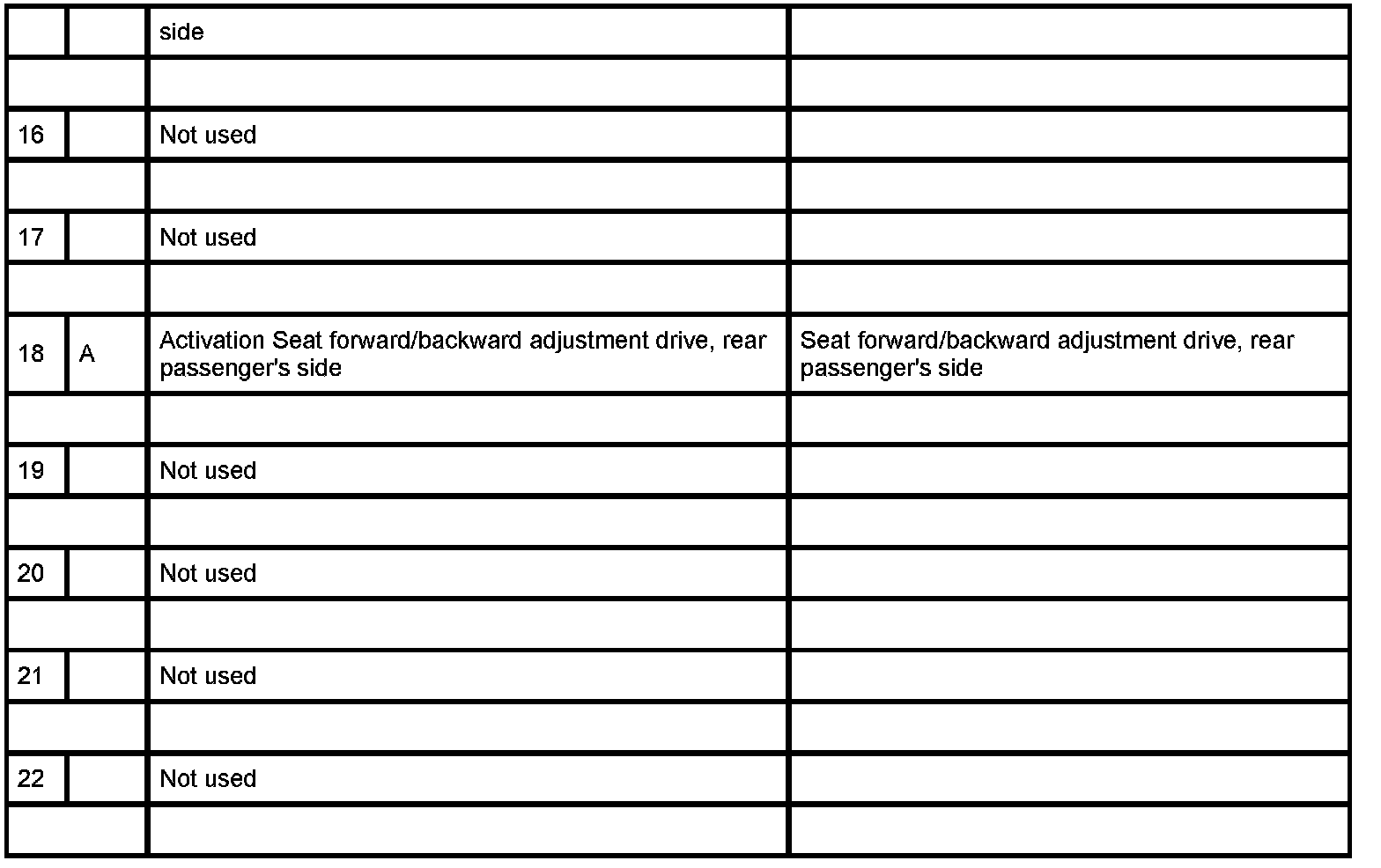

Pin 16 To 22:
