A4 Rear Passenger's Side Seat Module (Massage Function In Rear Seat Backs)



A4_1B

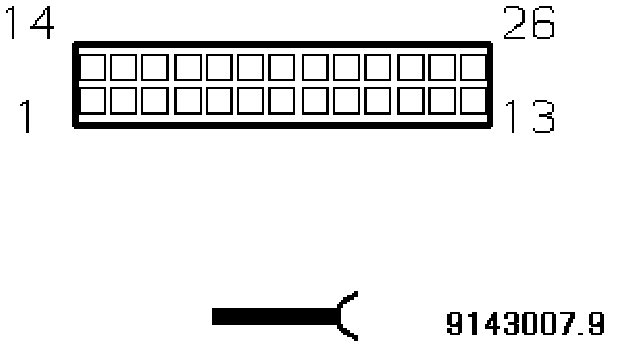

A4 Rear Passenger's Side Seat Module (Massage Function In Rear Seat Backs)

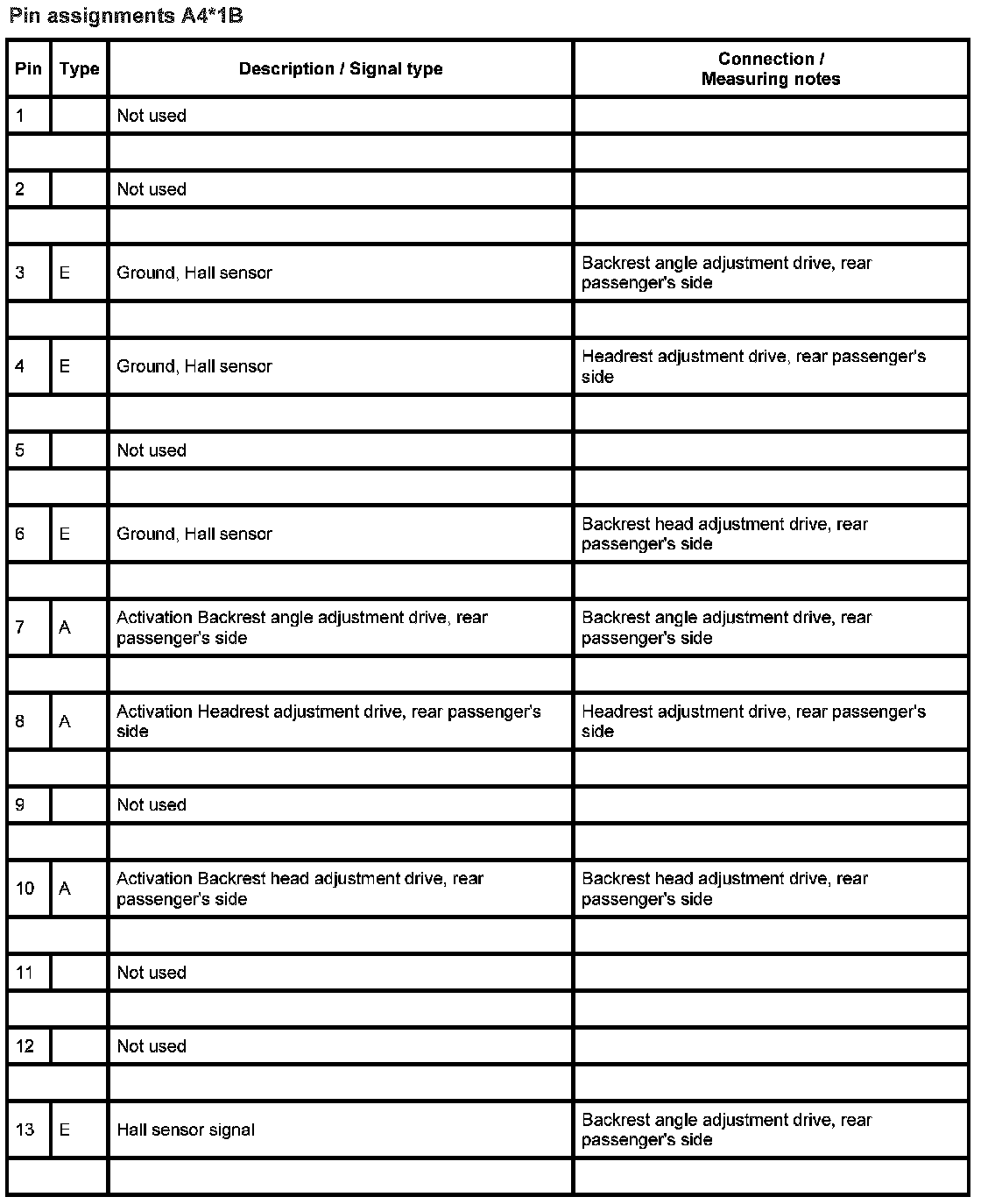

Pin 1 To 13:

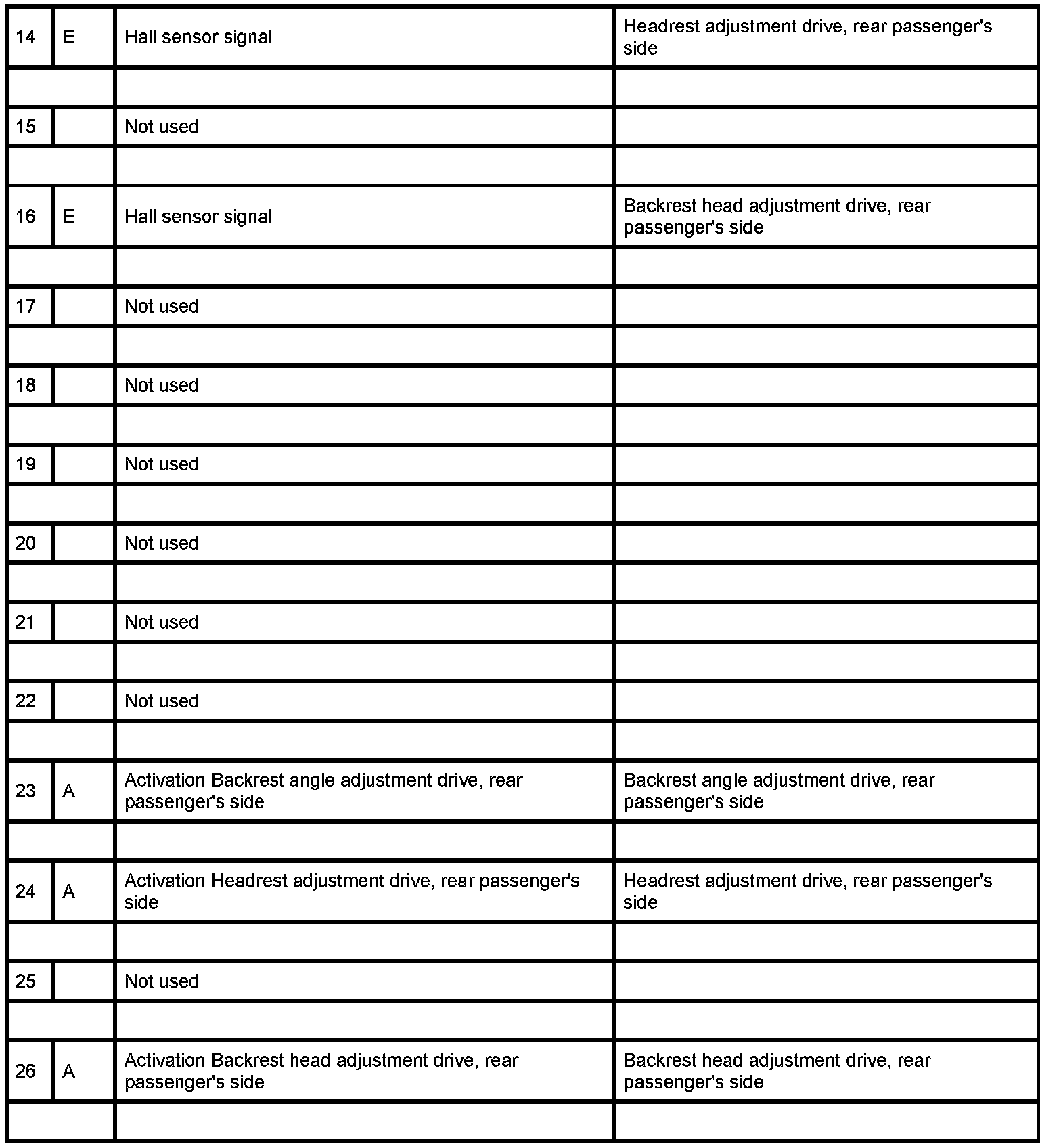

Pin 14 To 26:






A4*1B Adapter Is Being Developed
