BMW
>>
2009
>>
750Li (F02) V8-4.4L Turbo (N63)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From A
>>
A49_1B
A49_1B
A49_1B
A49 Vertical Dynamics Management

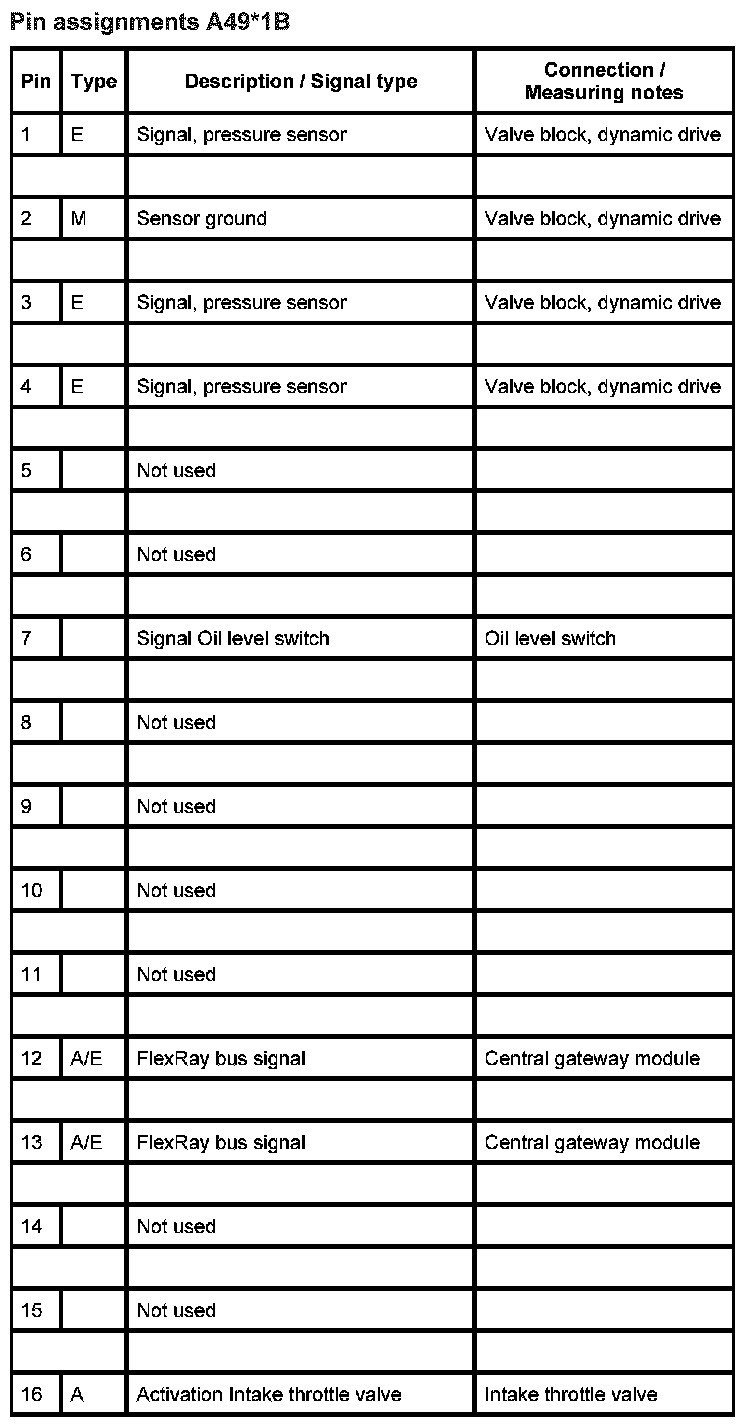

Pin 1 To 16:

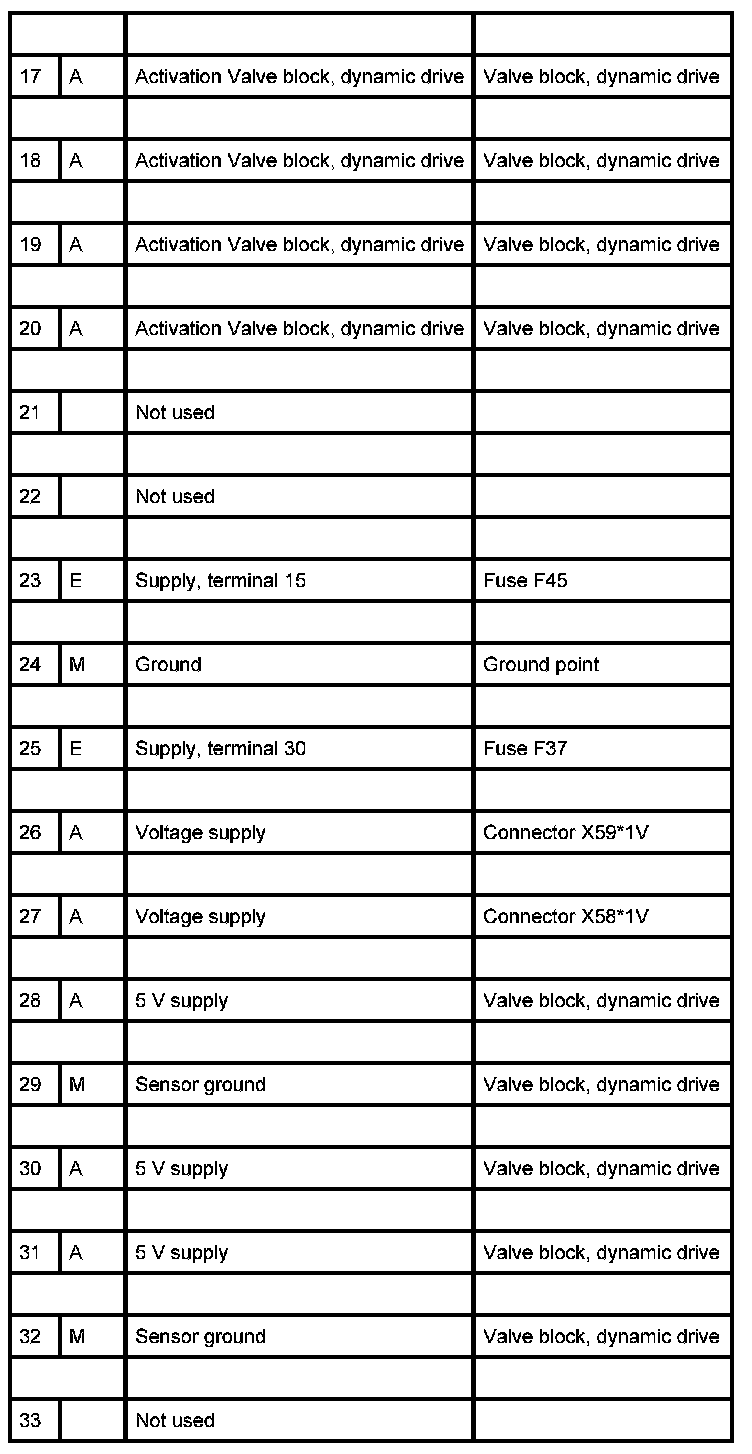

Pin 17 To 33:

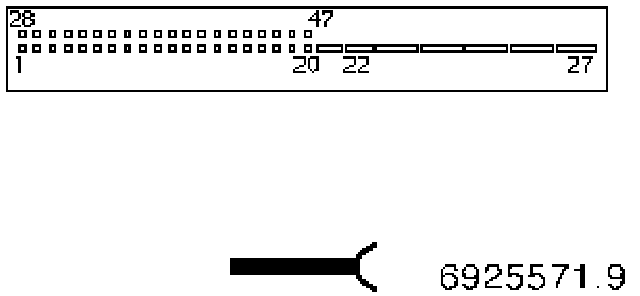

Pin 34 To 47:
A49*1B Adapter 612330, Storage Location F104
