A46_1B



A46 Digital Motor Electronics (N63 Engine)

Pin assignments A46*1B


Pin 1 To 15:

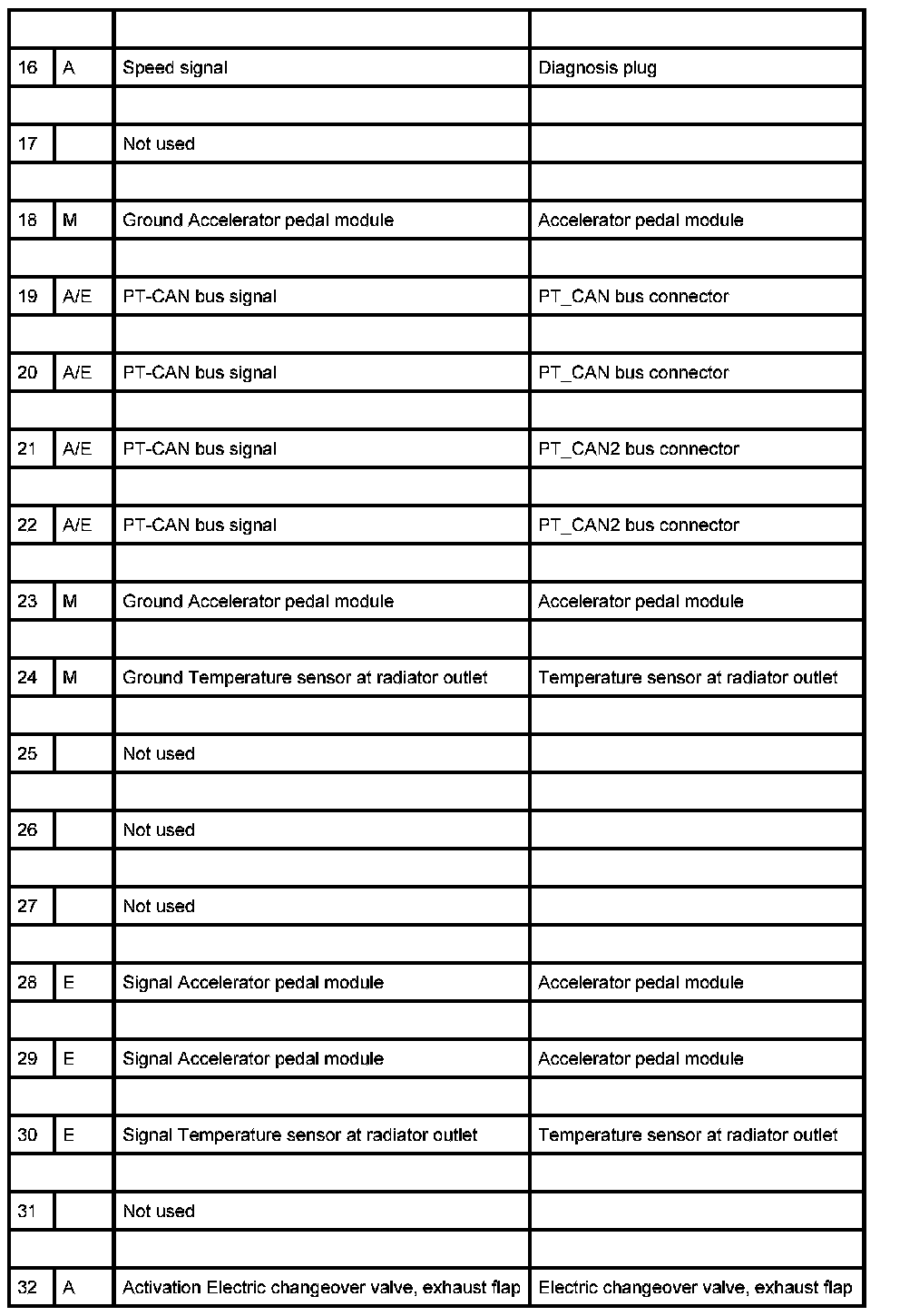

Pin 16 To 32:

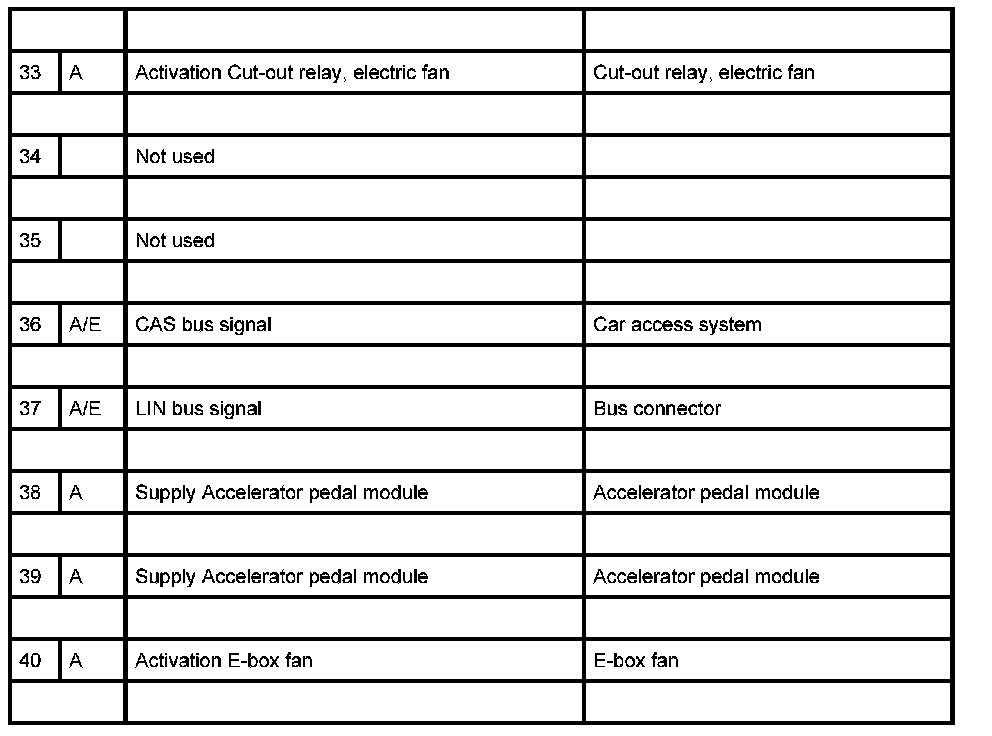

Pin 33 To 40:
