A42 Car Information Computer (USA_LHD Without RSE Rear-Cabin Entertainment System Mid without RSE Rear-Cabin Entertainment Syst

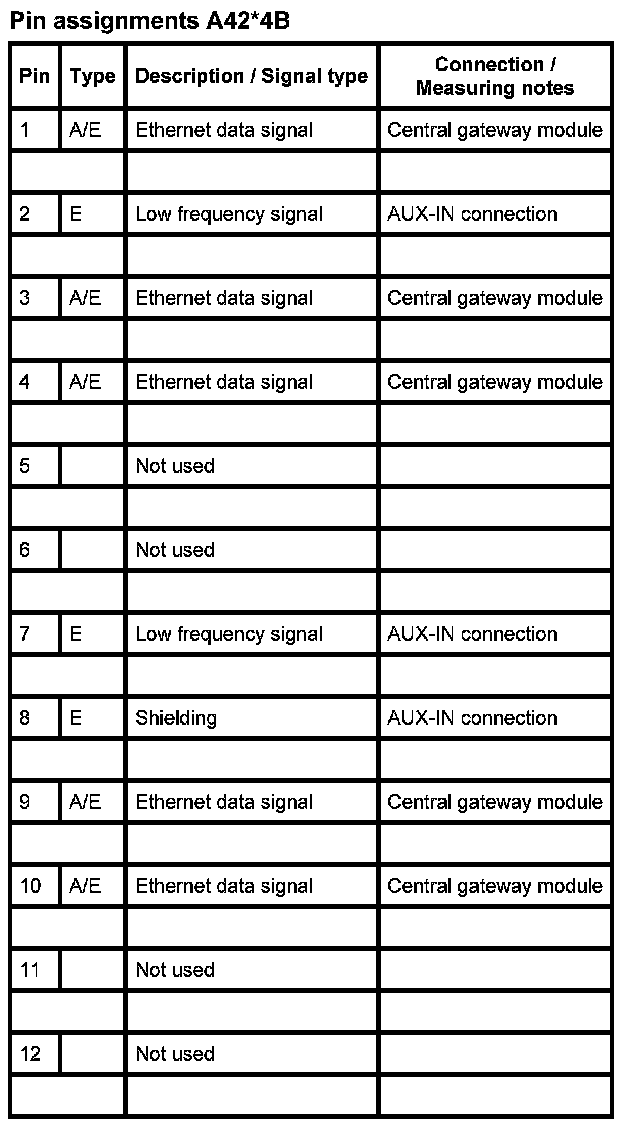

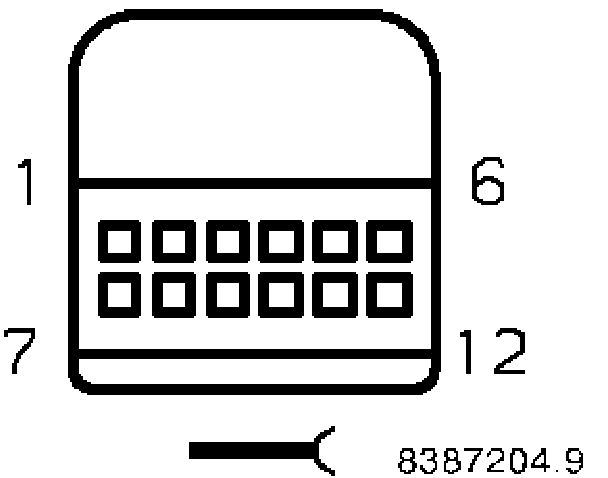

A42_4B

A42 Car Information Computer (USA_LHD Without RSE Rear-Cabin Entertainment System Mid without RSE Rear-Cabin Entertainment System, High)







A42*4B Adapter Is Being Developed
