A42 Car Information Computer (USA_LHD Without RSE Rear-Cabin Entertainment System Mid without RSE Rear-Cabin Entertainment Syst

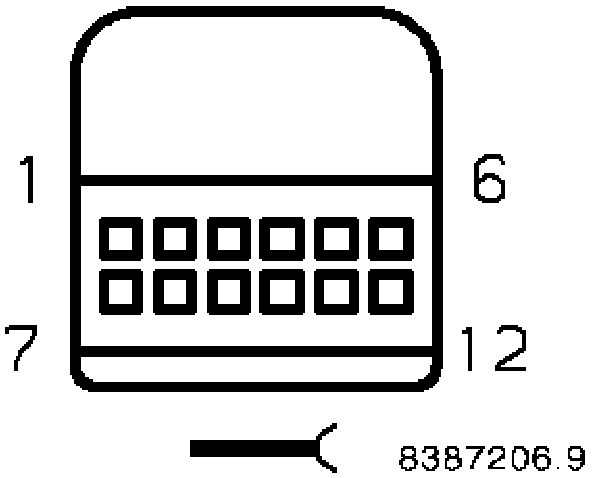

A42_3B

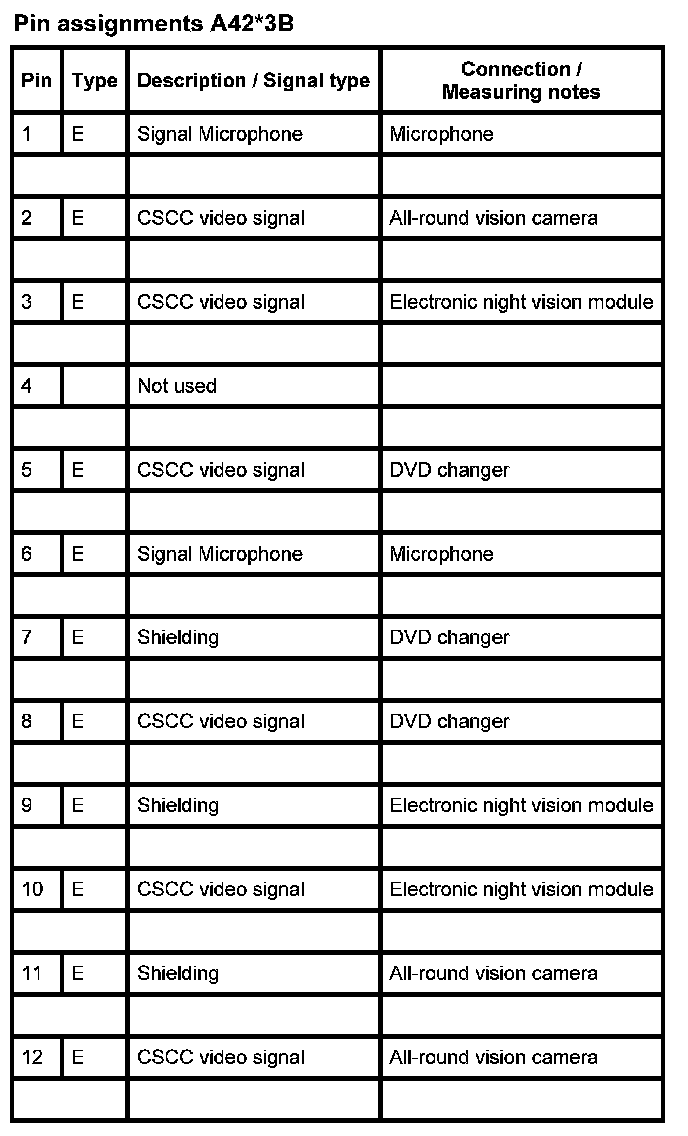

A42 Car Information Computer (USA_LHD Without RSE Rear-Cabin Entertainment System Mid without RSE Rear-Cabin Entertainment System, High)







A42*3B Adapter Is Being Developed
