A42 Car Information Computer (With RSE Rear-Cabin Entertainment System Mid or RSE Rear-Cabin Entertainment System, High)

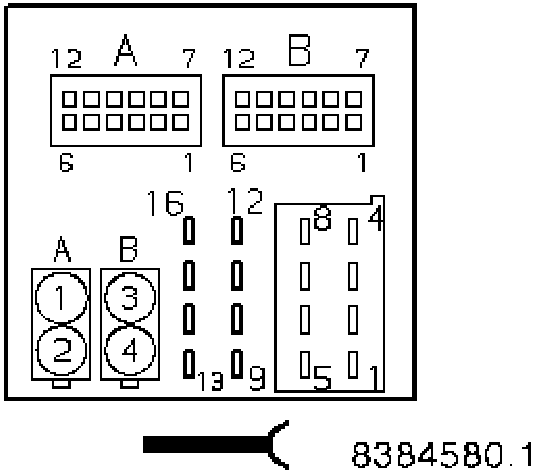

A42_1B

A42 Car Information Computer (USA_LHD With (RSE Rear-Cabin Entertainment System Mid or RSE Rear-Cabin Entertainment System, High))

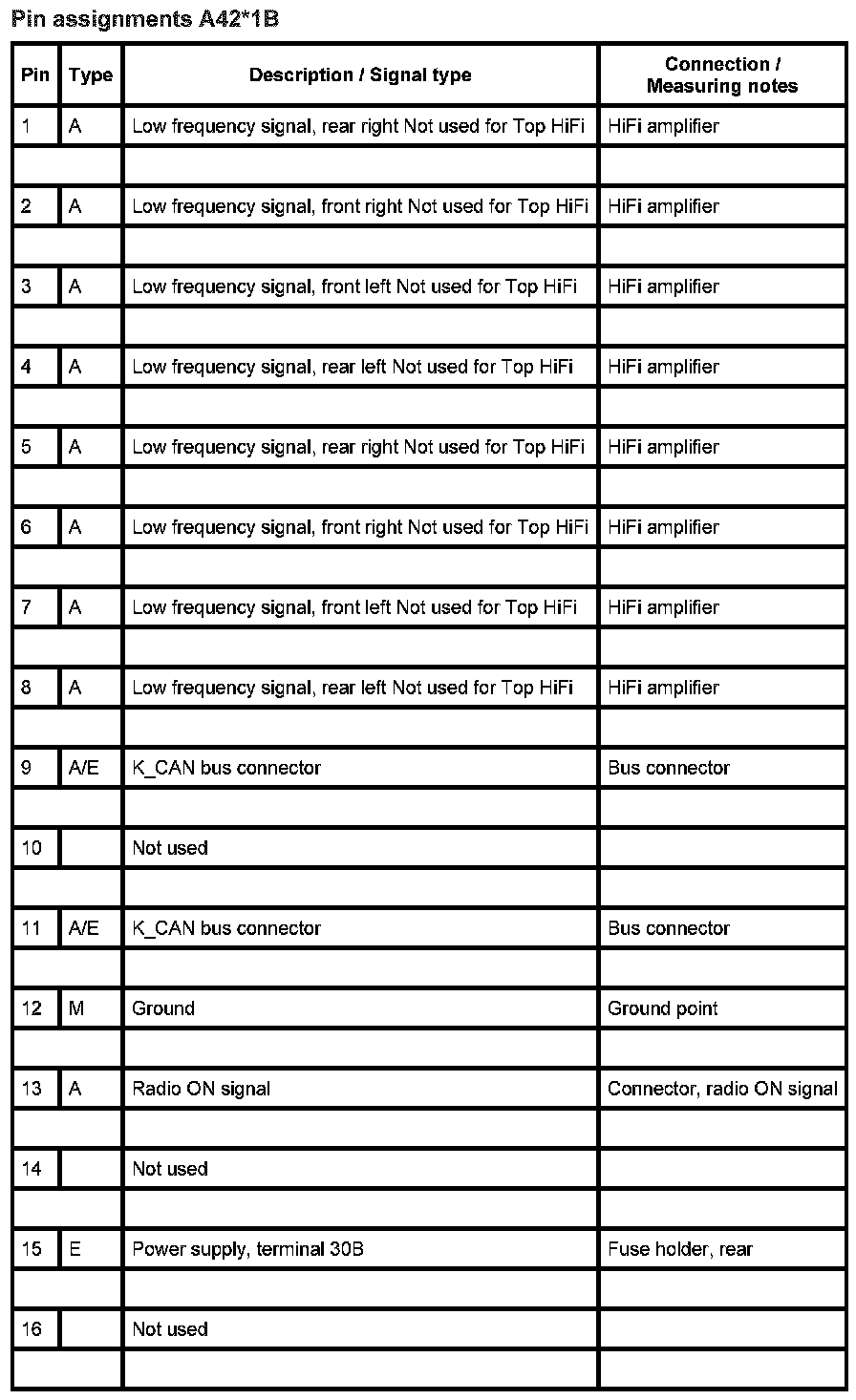

A42*1B No Adapter
