A39_1B



A39_1B

A39 Rear Compartment Automatic Climate Control

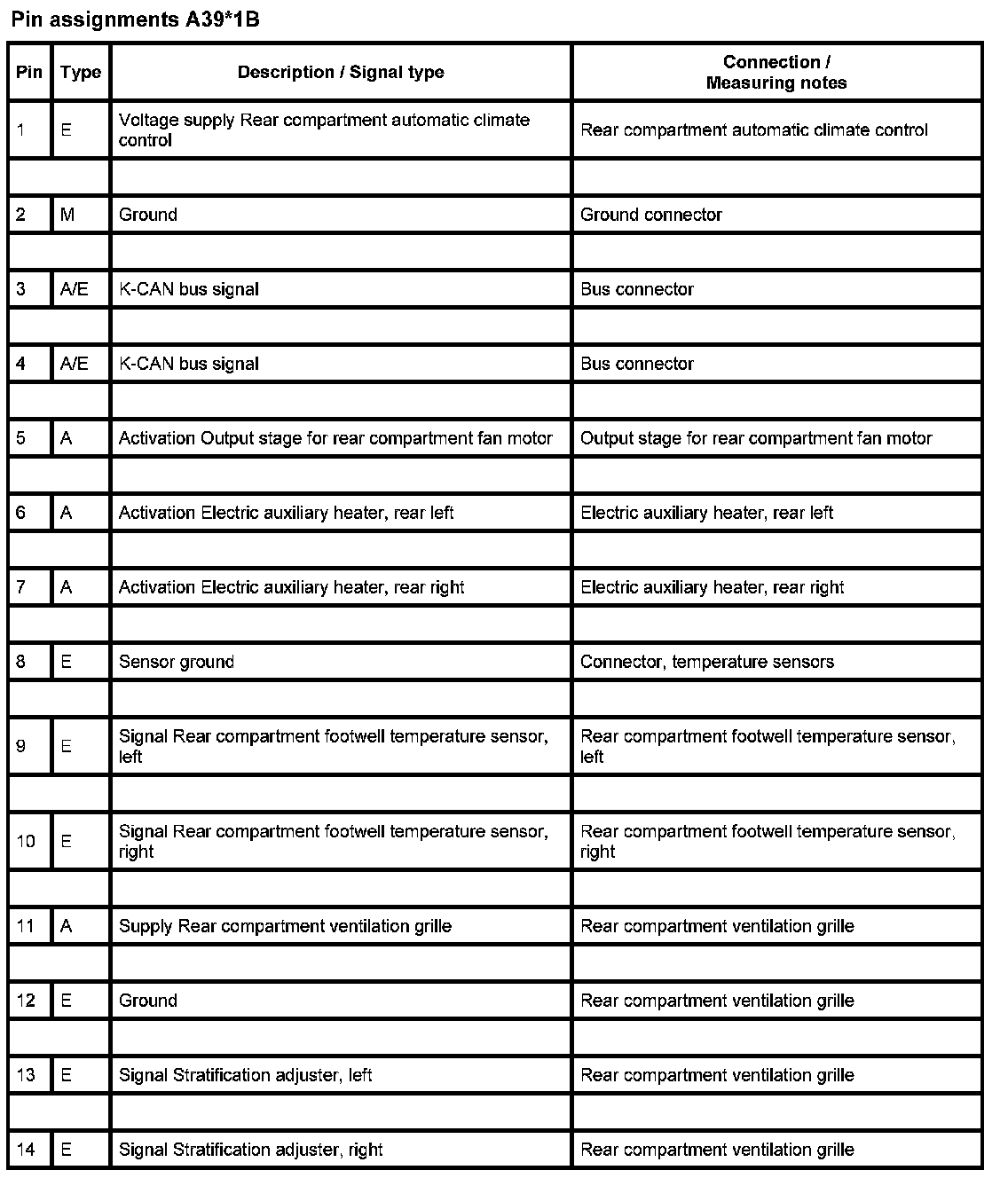

Pin 1 To 14:

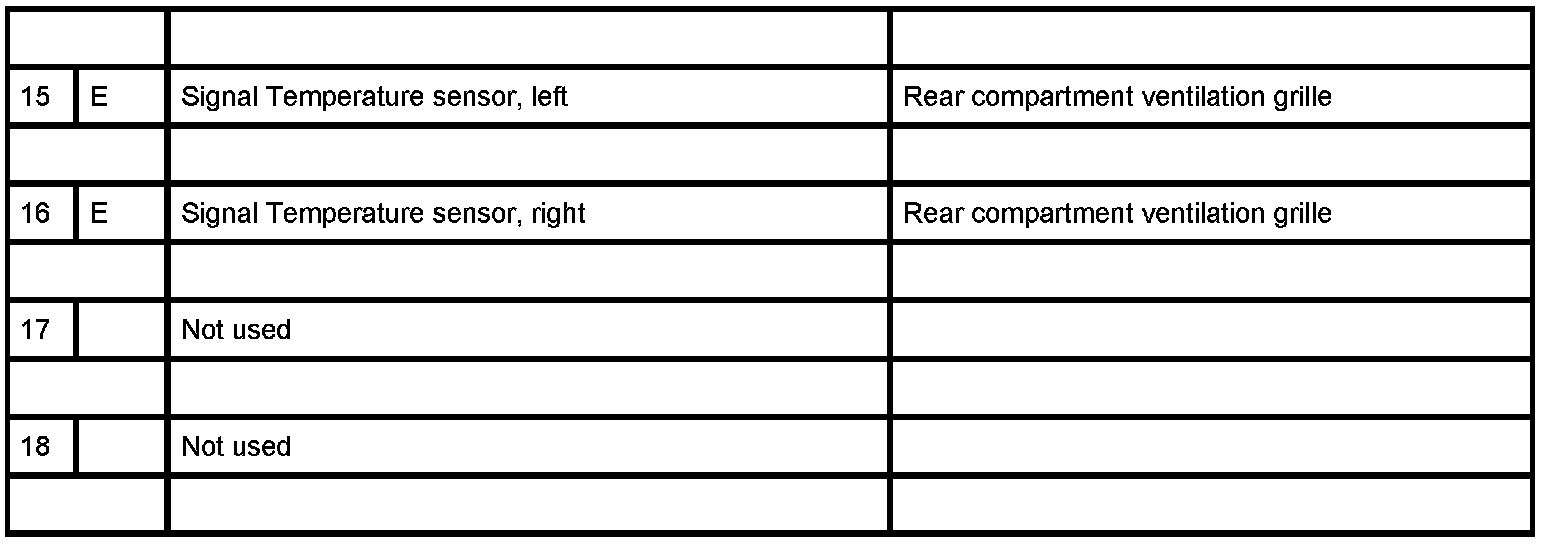

Pin 15 To 18:

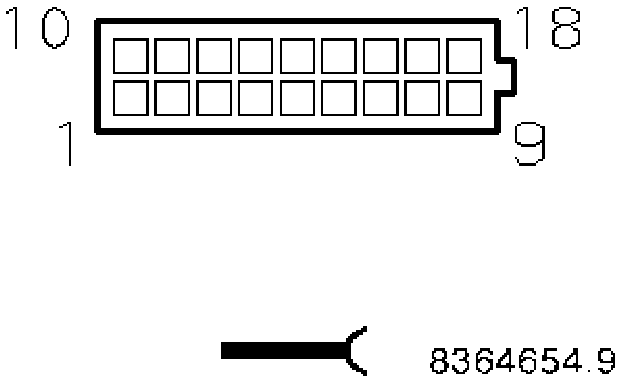

A39*1B Adapter 614470, Storage Location C110
