A37_1B
A37_1B
A37_1B

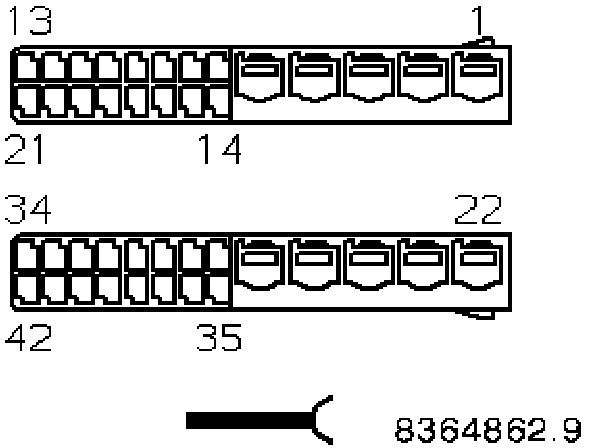

A37 HiFi Amplifier
Pin 1 To 15:

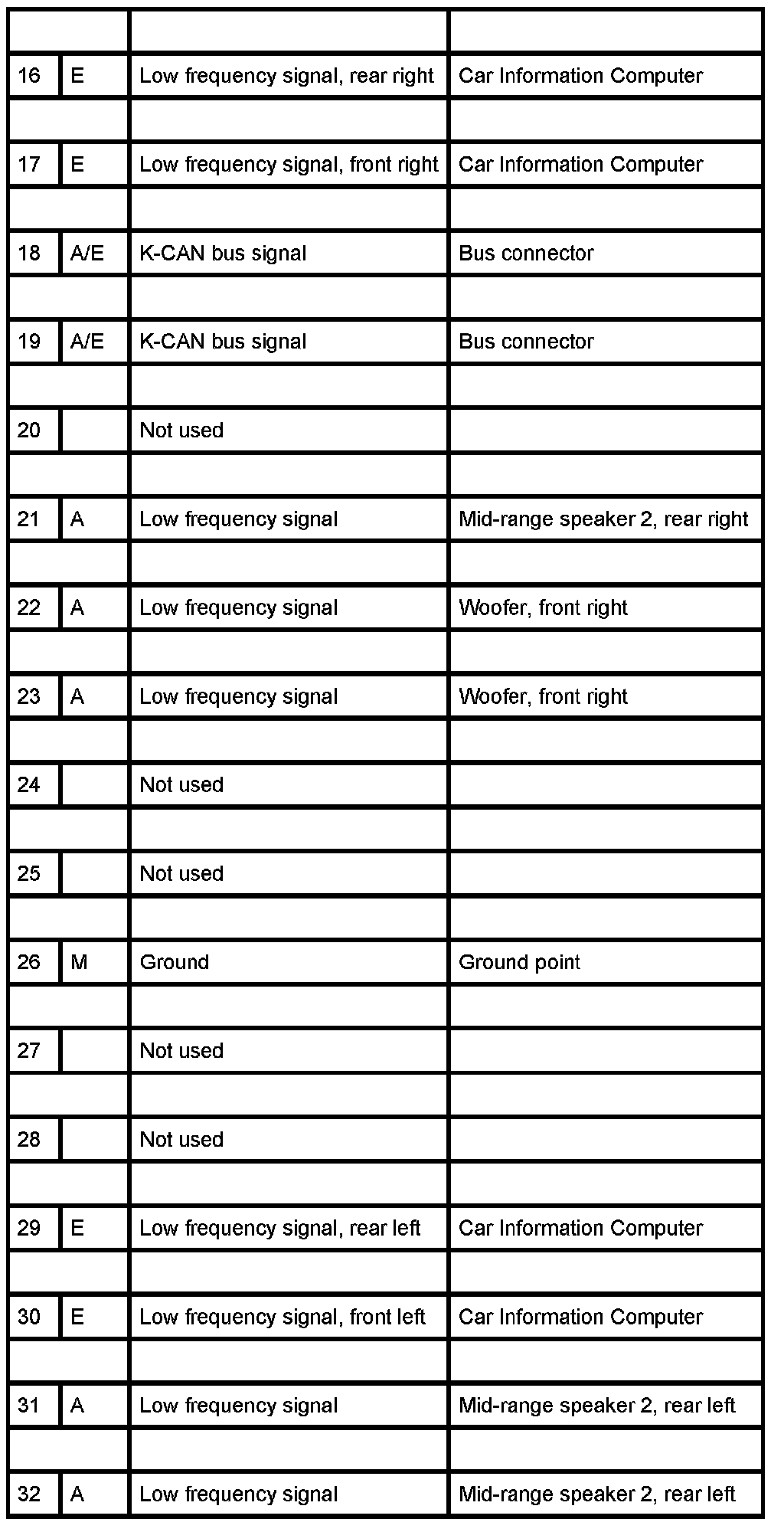

Pin 16 To 32:

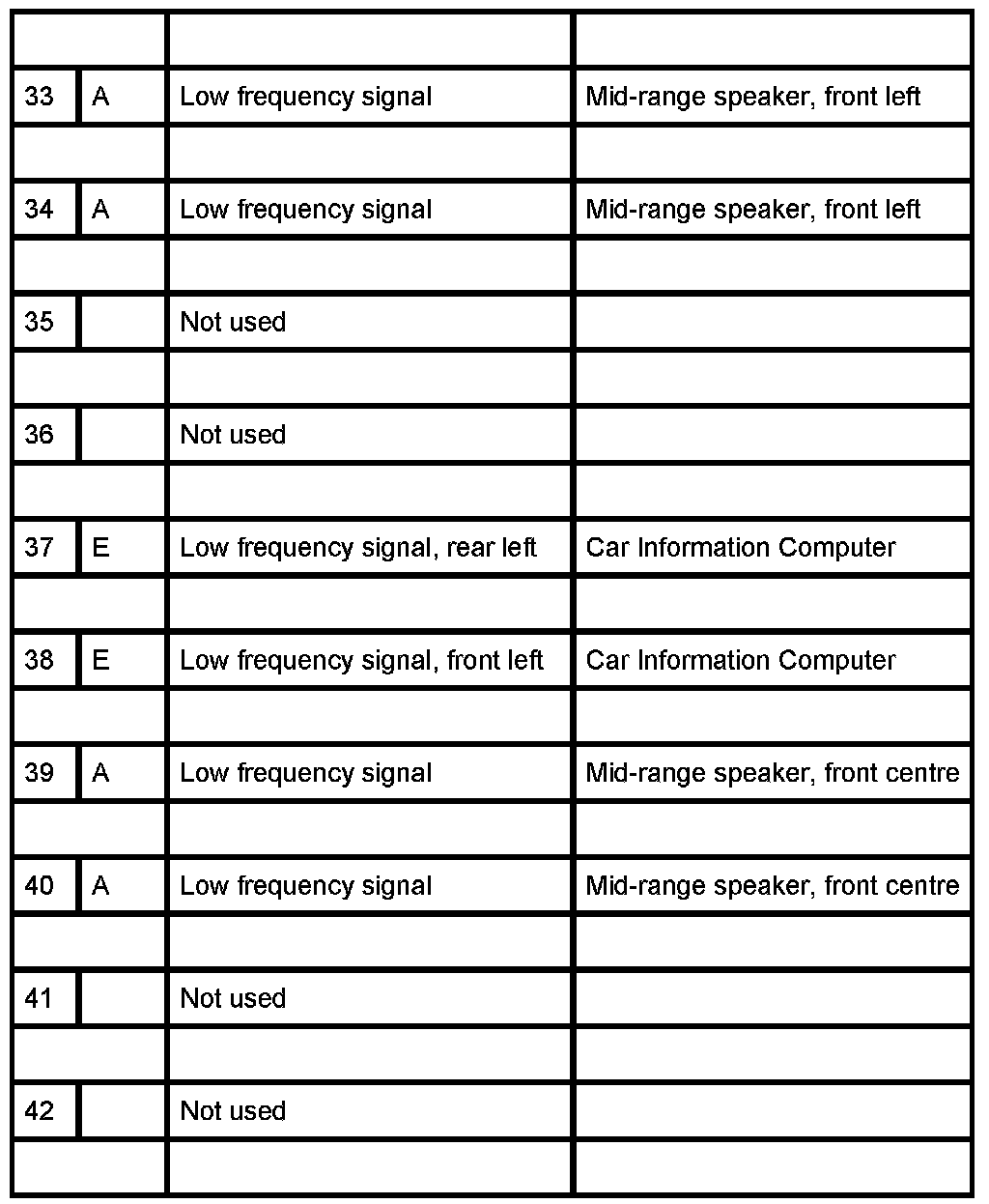

Pin 33 To 42:
A37*1B Adapter 651150, Storage Location M212
