A36_1B
A36_1B
A36_1B

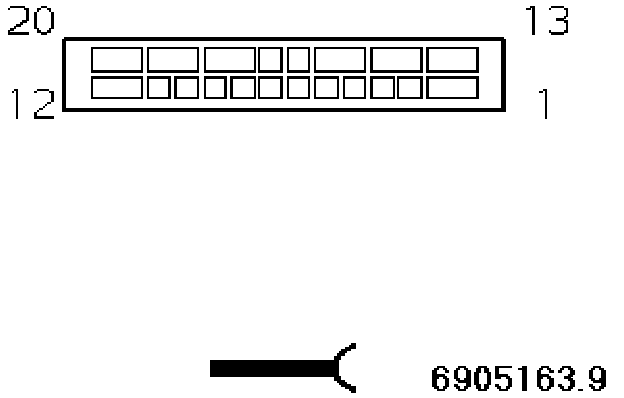

A36 Trailer Module

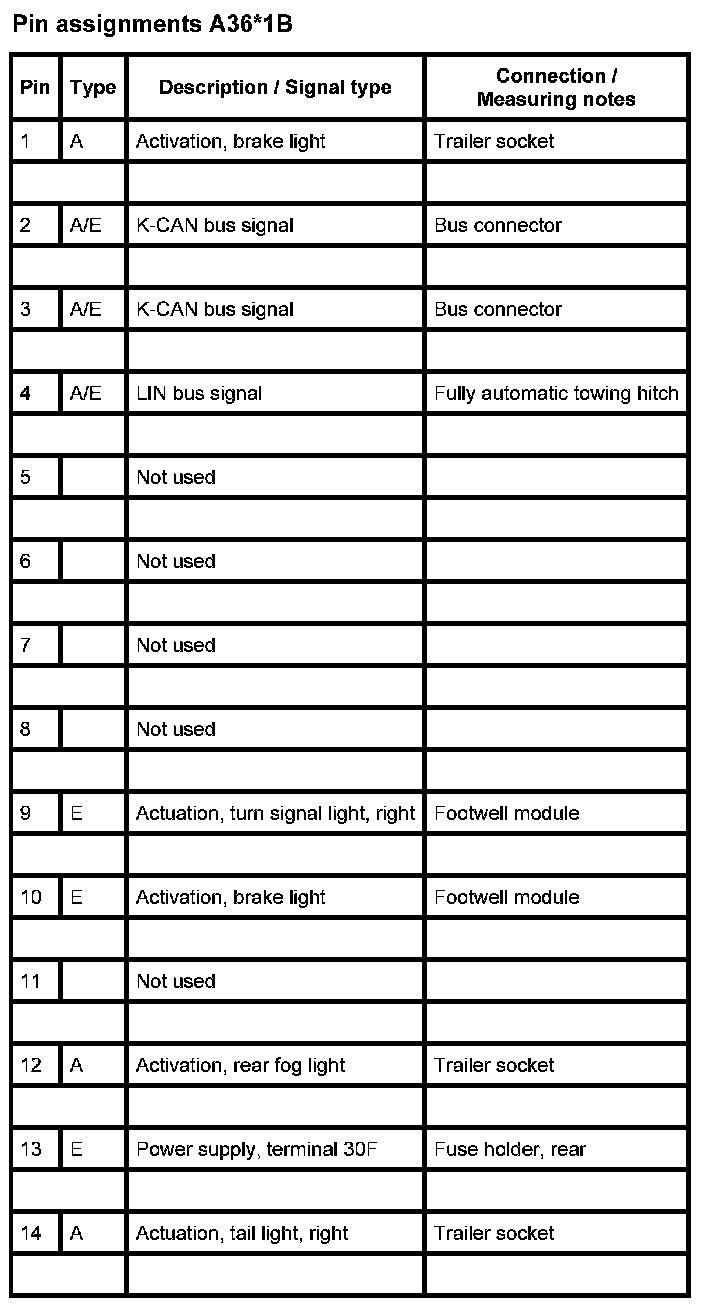

Pin 1 To 14:

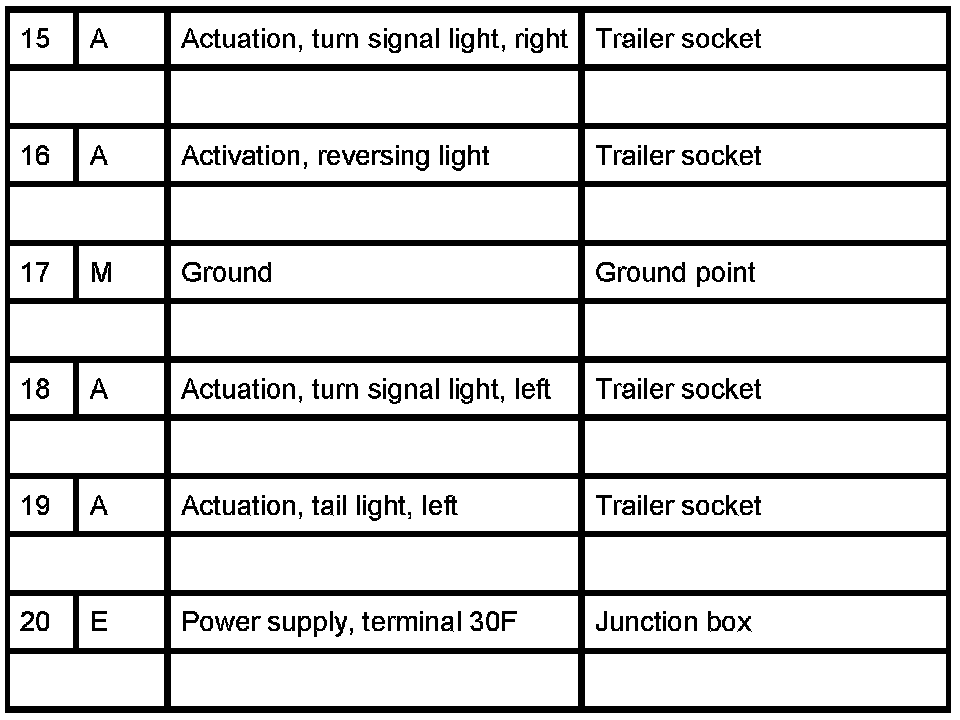

Pin 15 To 20:
A36*1B Adapter 612190, Storage Location P209
