750Li (F02) V8-4.4L Turbo (N63)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From A
>>
A34_6B
A34_6B
A34_6B
A34 Junction Box, Electronics

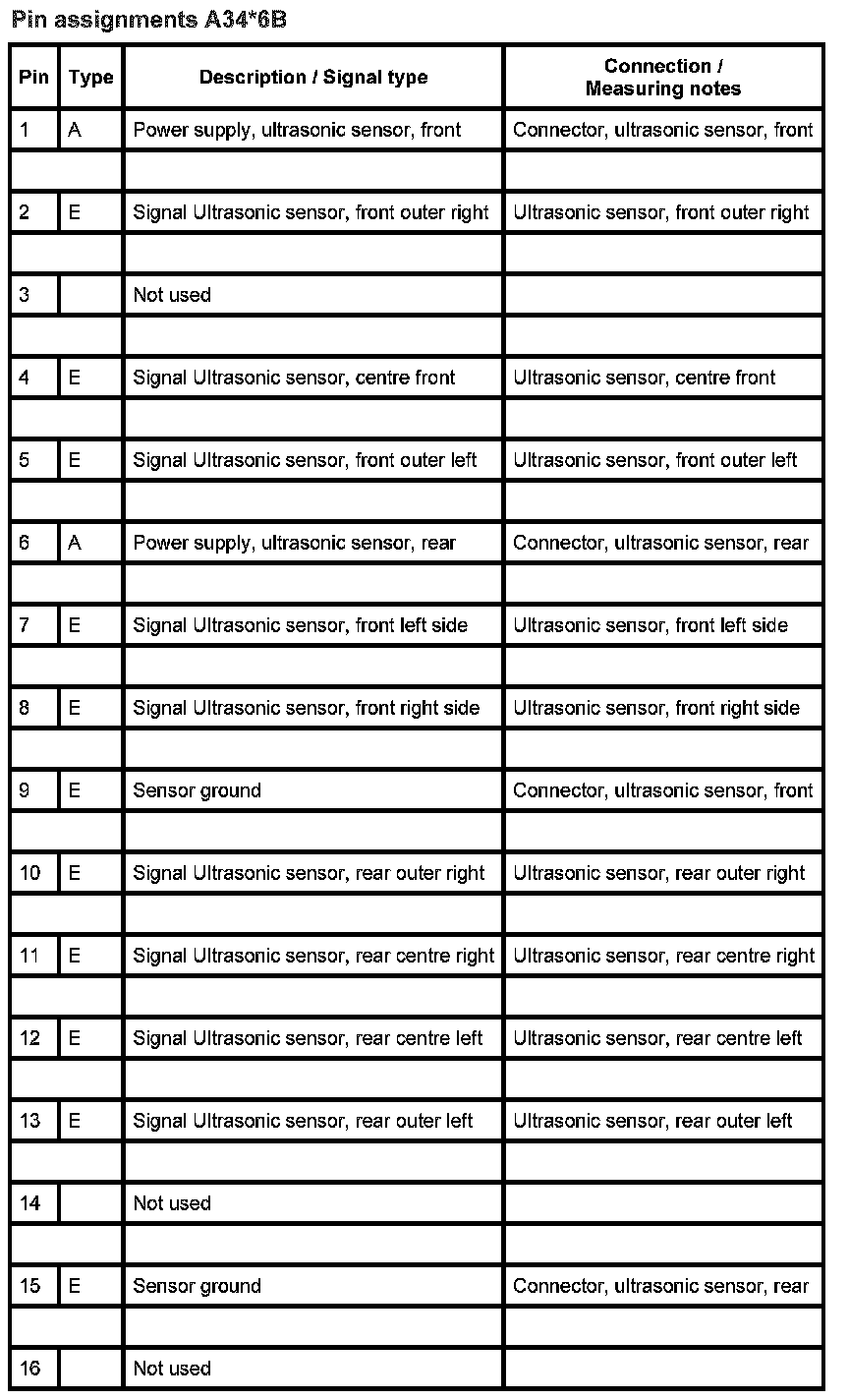

Pin 1 To 16:
Pin 17 To 18:

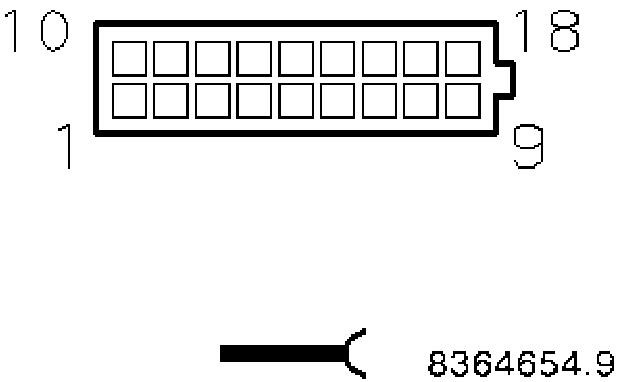

A34*6B Adapter 614470, Storage Location C110
