A34 Junction Box, Electronics

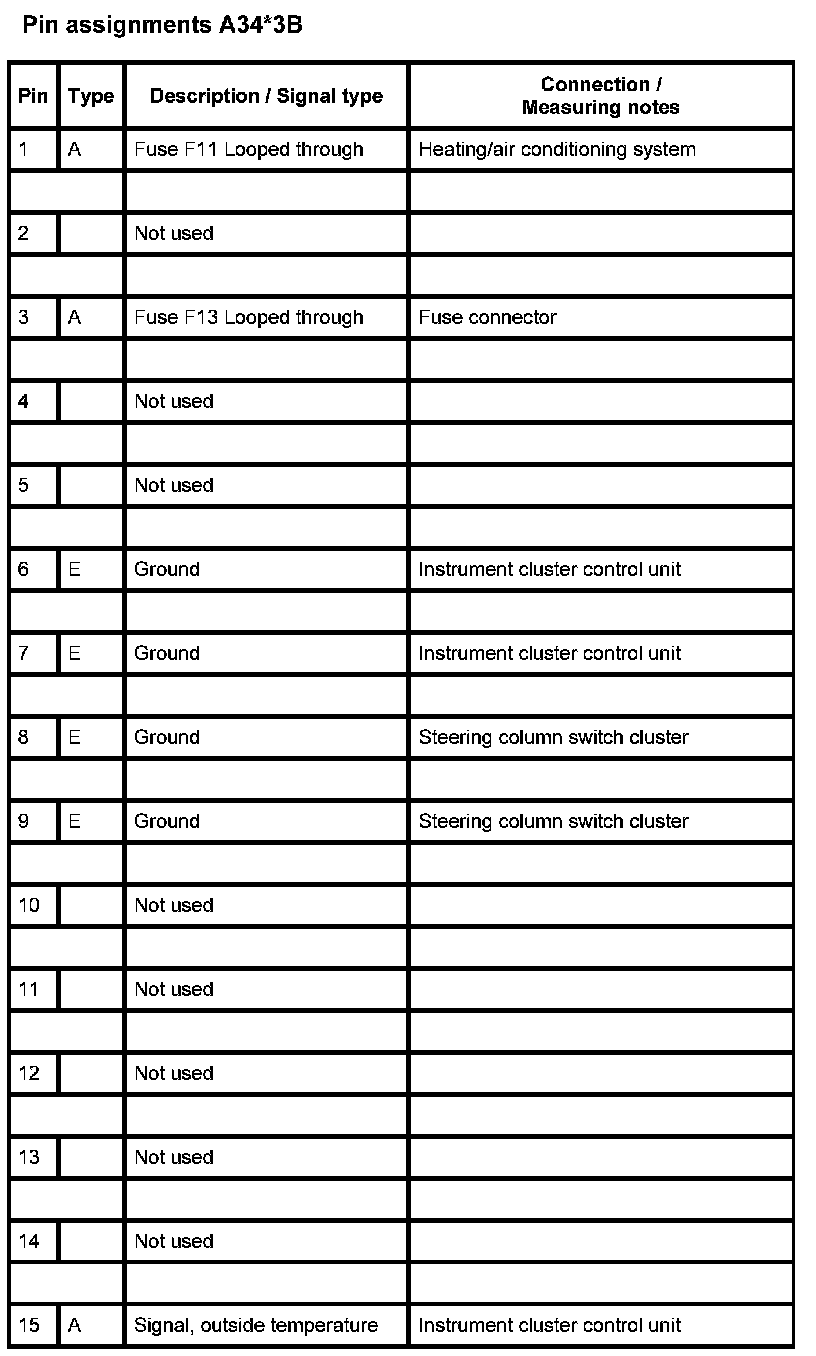

Pin 1 To 15:

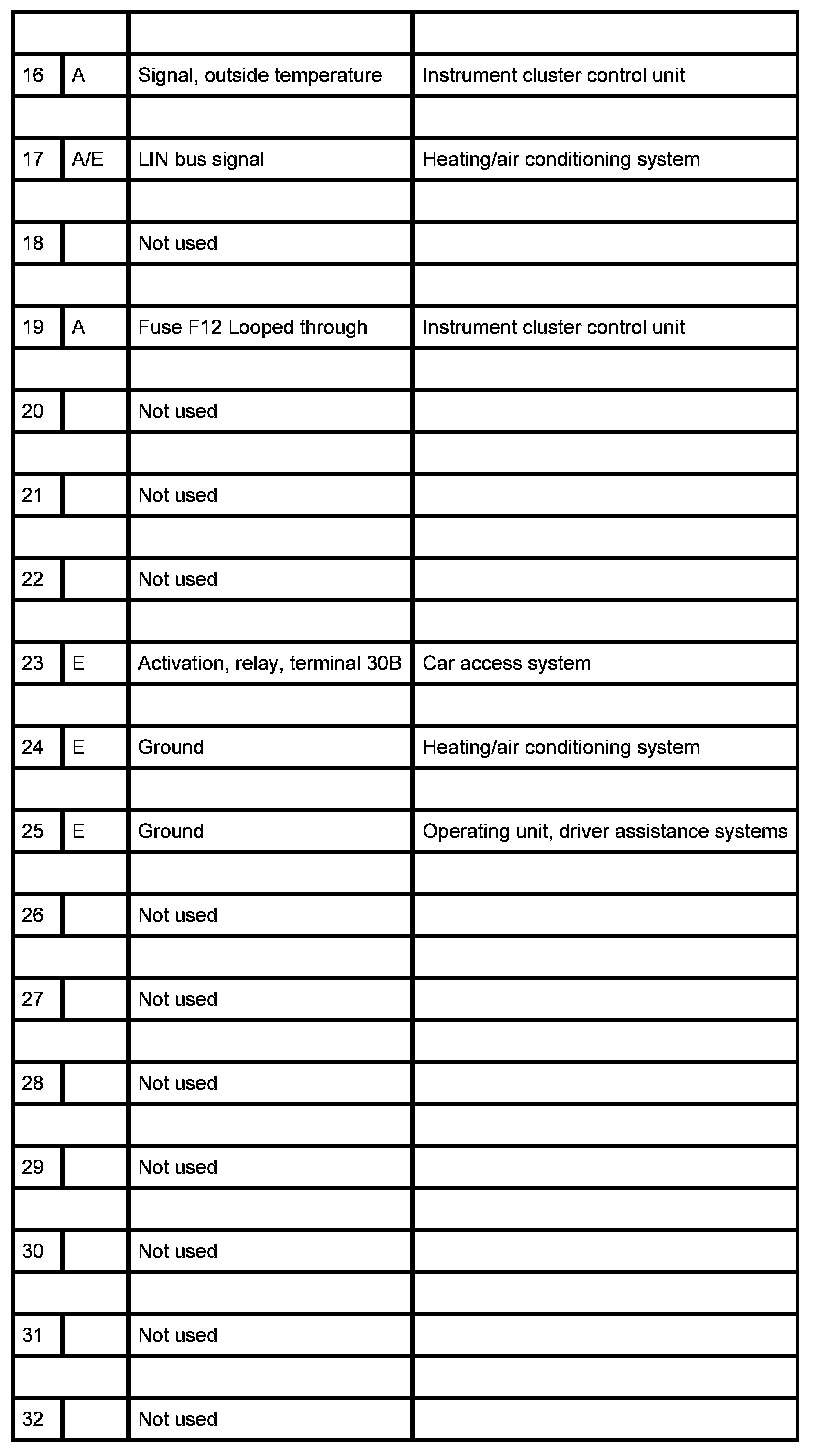

Pin 16 To 32:
Pin 33 To 49:

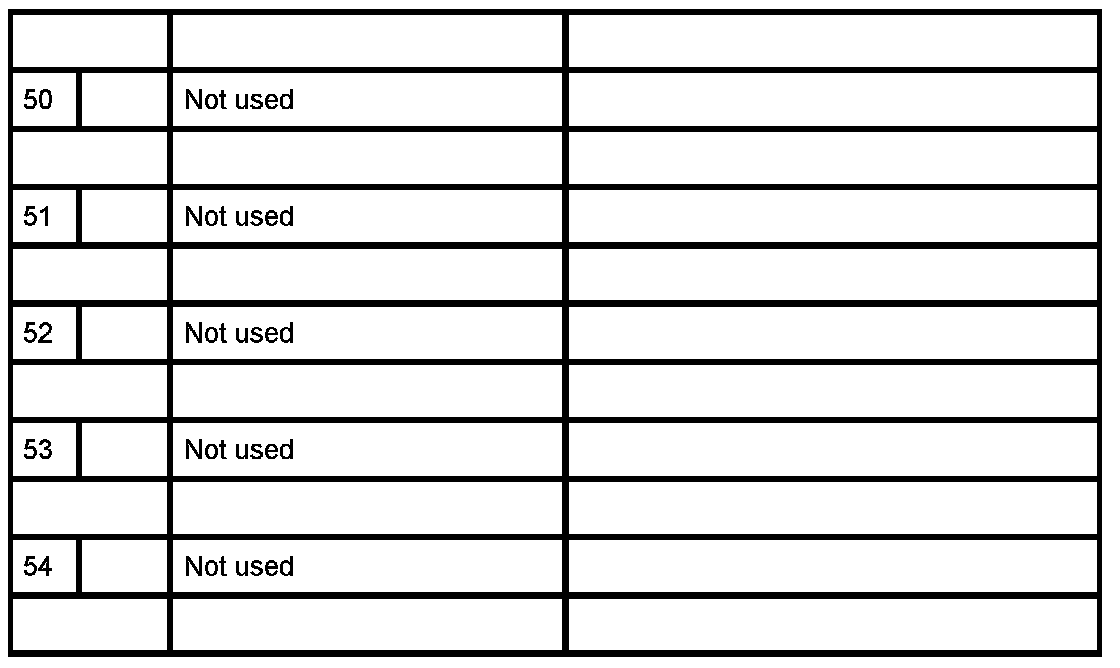

Pin 50 To 54:

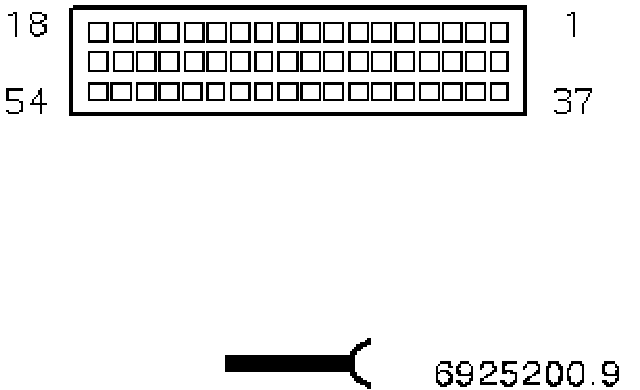

A34*3B Adapter 630410, Storage Location L201
