A34_1B



A34_1B

A34 Junction Box, Electronics

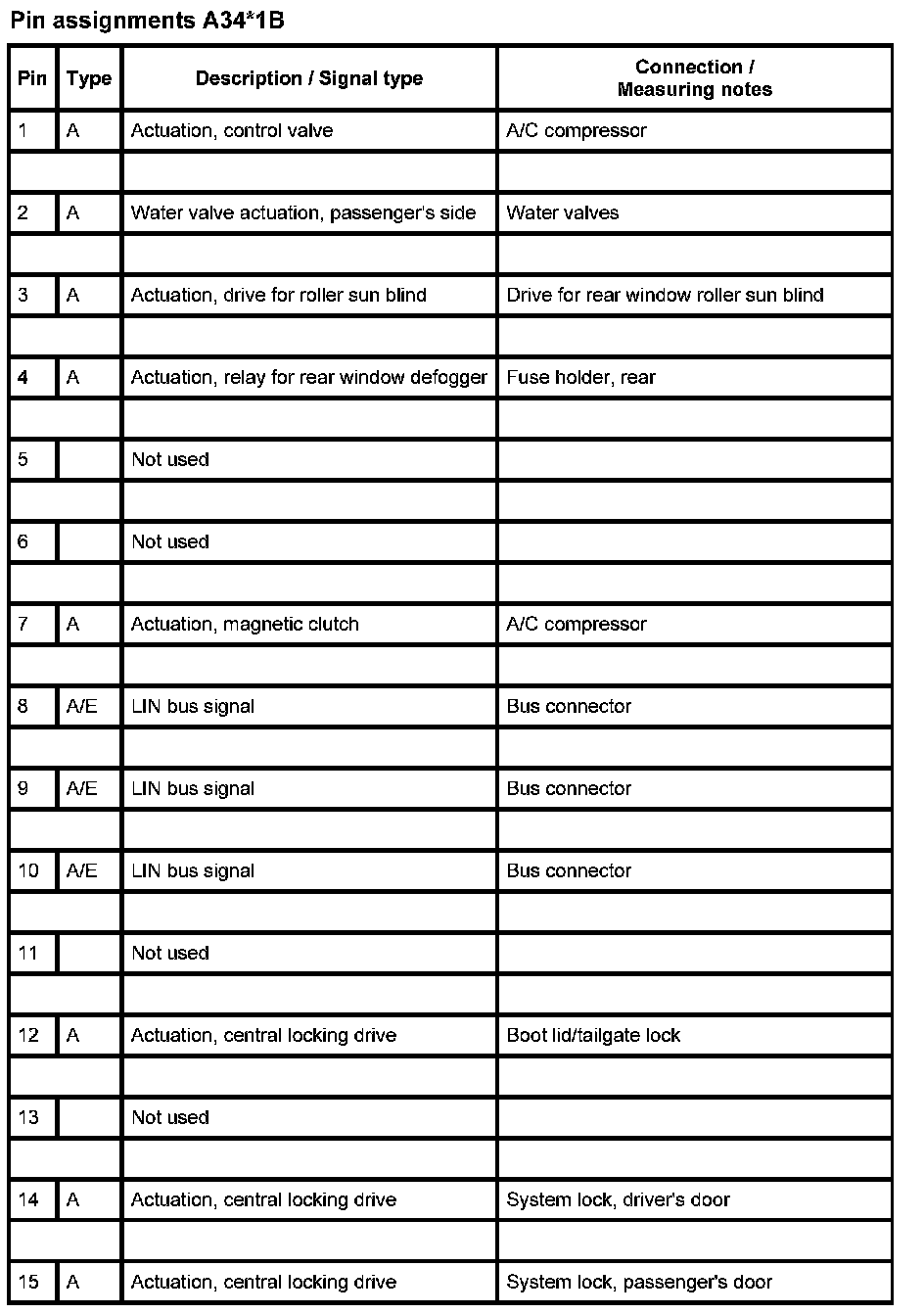

Pin 1 To 15:




Pin 16 To 32:

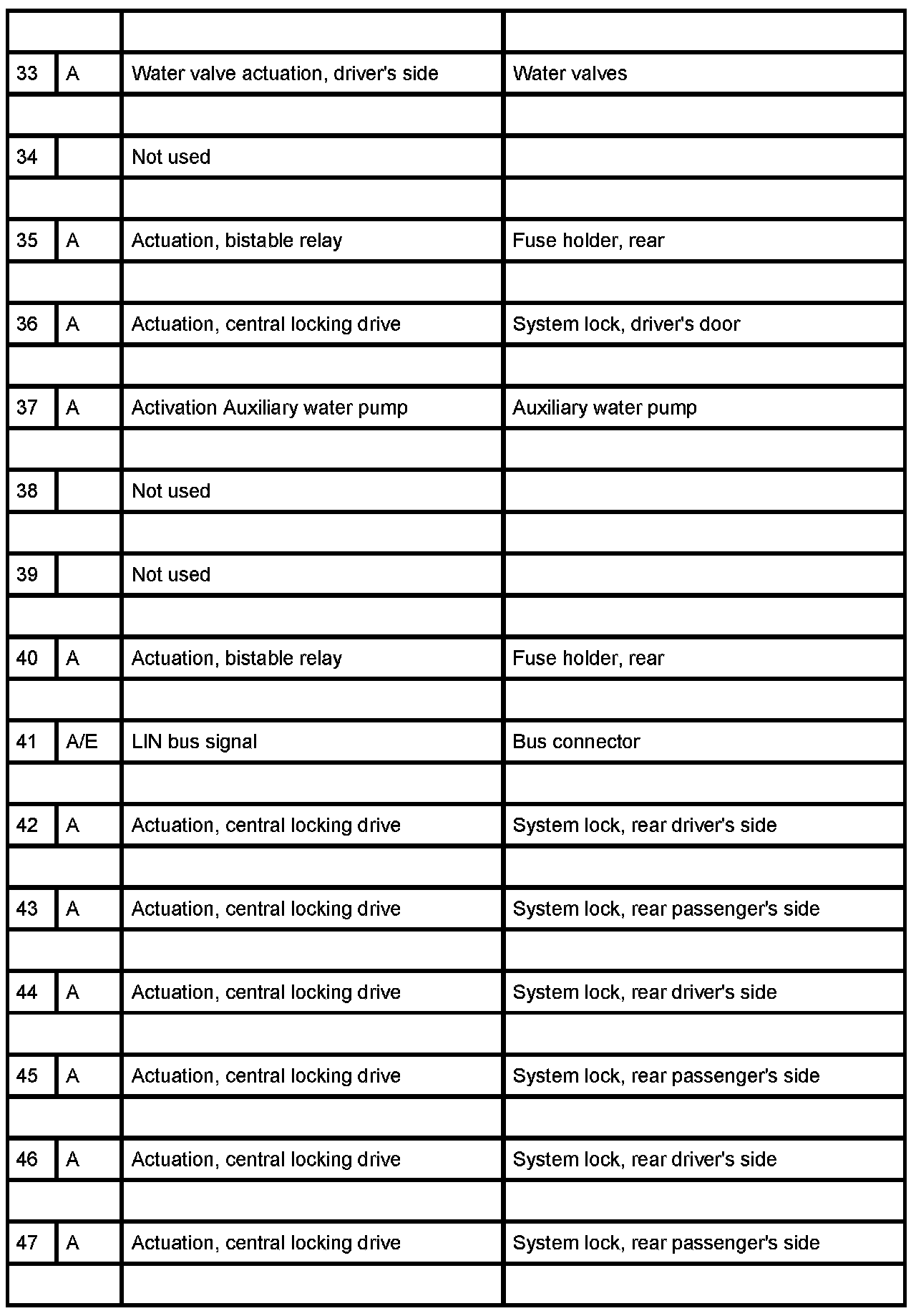

Pin 33 To 47:

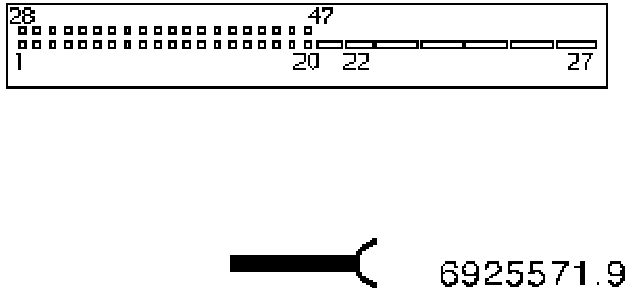

A34*1B Adapter 612330, Storage Location F104
