A26 Passenger's Seat Module (Lumbar Support, Driver/Passenger With Active Seat For Driver/Passenger)



A26_3B

A26 Passenger's Seat Module (Lumbar Support, Driver/Passenger With Active Seat For Driver/Passenger)

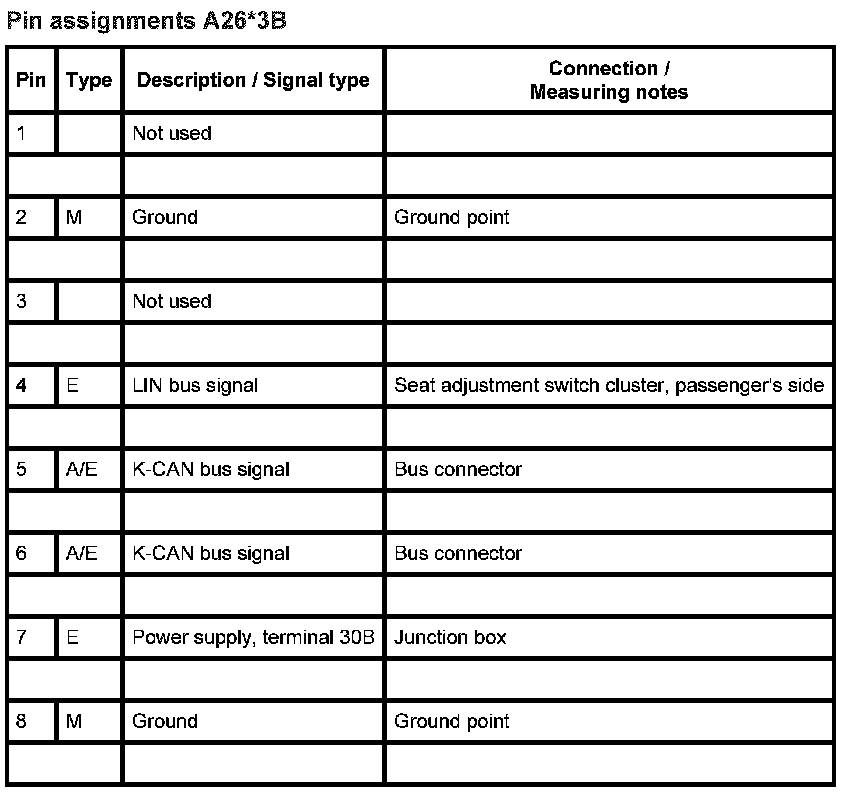

A26*3B Adapter 612180, Storage Location P208
