A21_5B
A21_5B
A21_5B

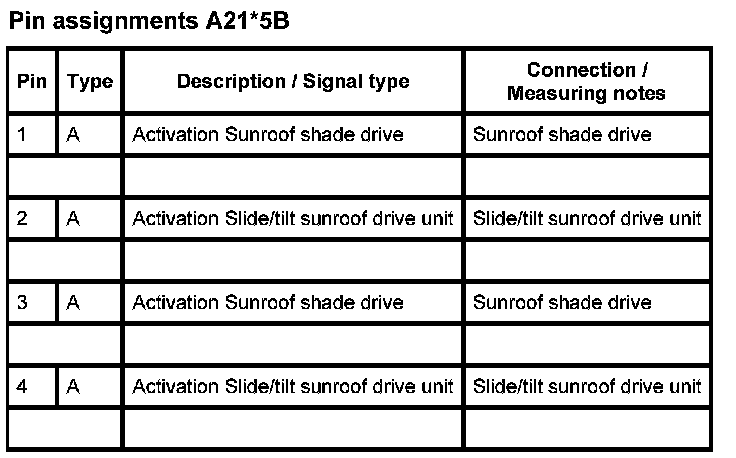

A21 Roof Functions Module, High Variant

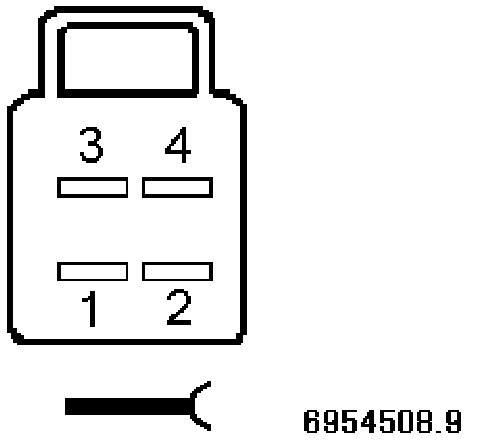

A21*5B Adapter 612350, Storage Location B105
