A21_4B
A21_4B
A21_4B

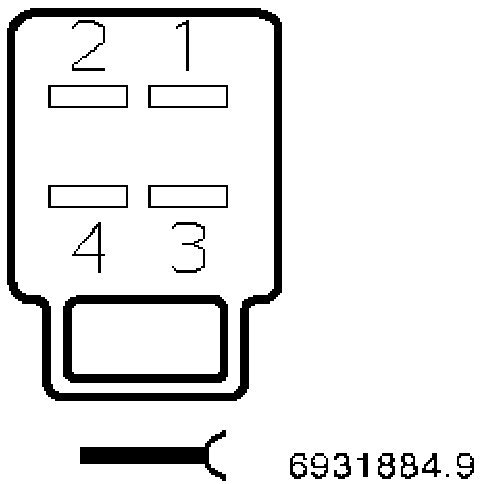

A21 Roof Functions Module, High Variant

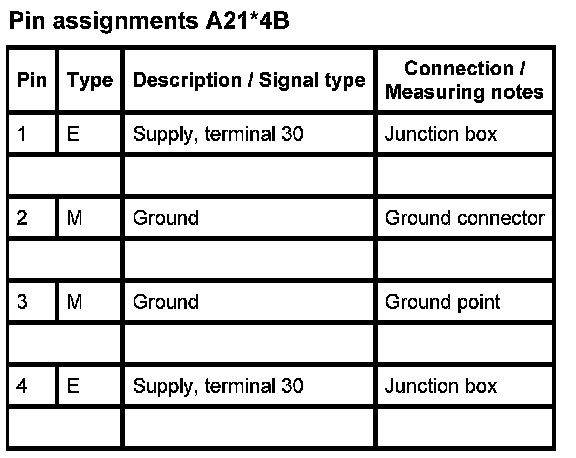

A21*4B Adapter 612350, Storage Location B105
