A16_4B
A16_4B
A16_4B

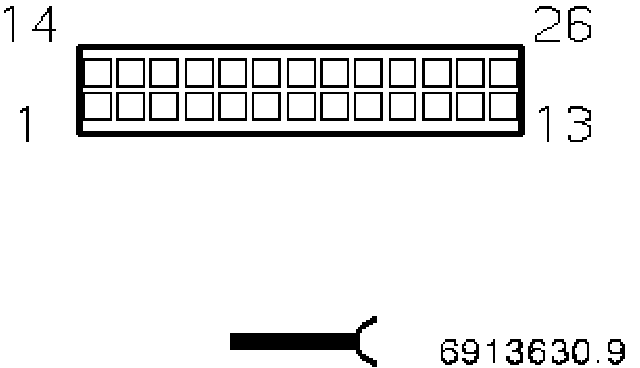

A16 Car Access System

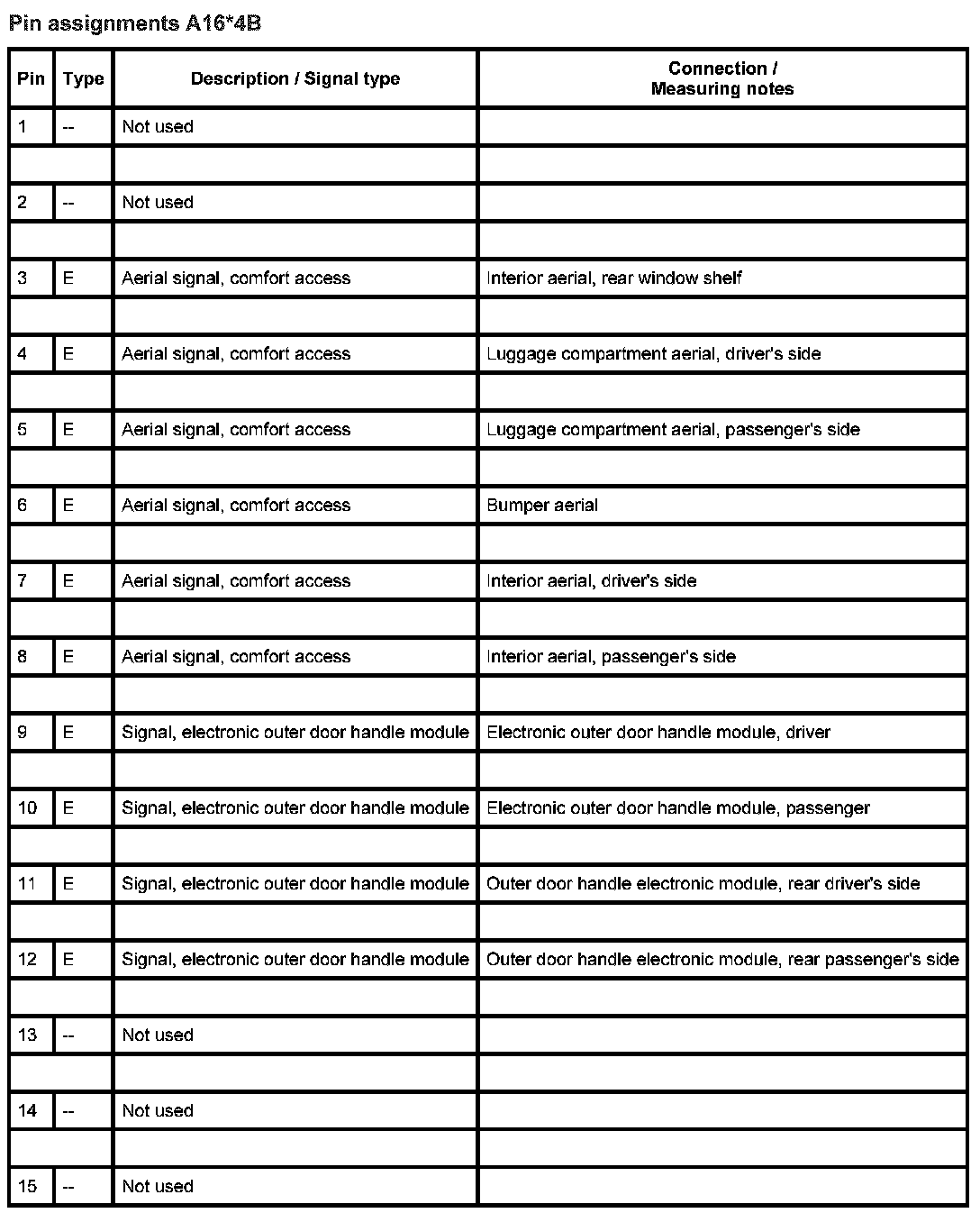

Pin 1 To 15:

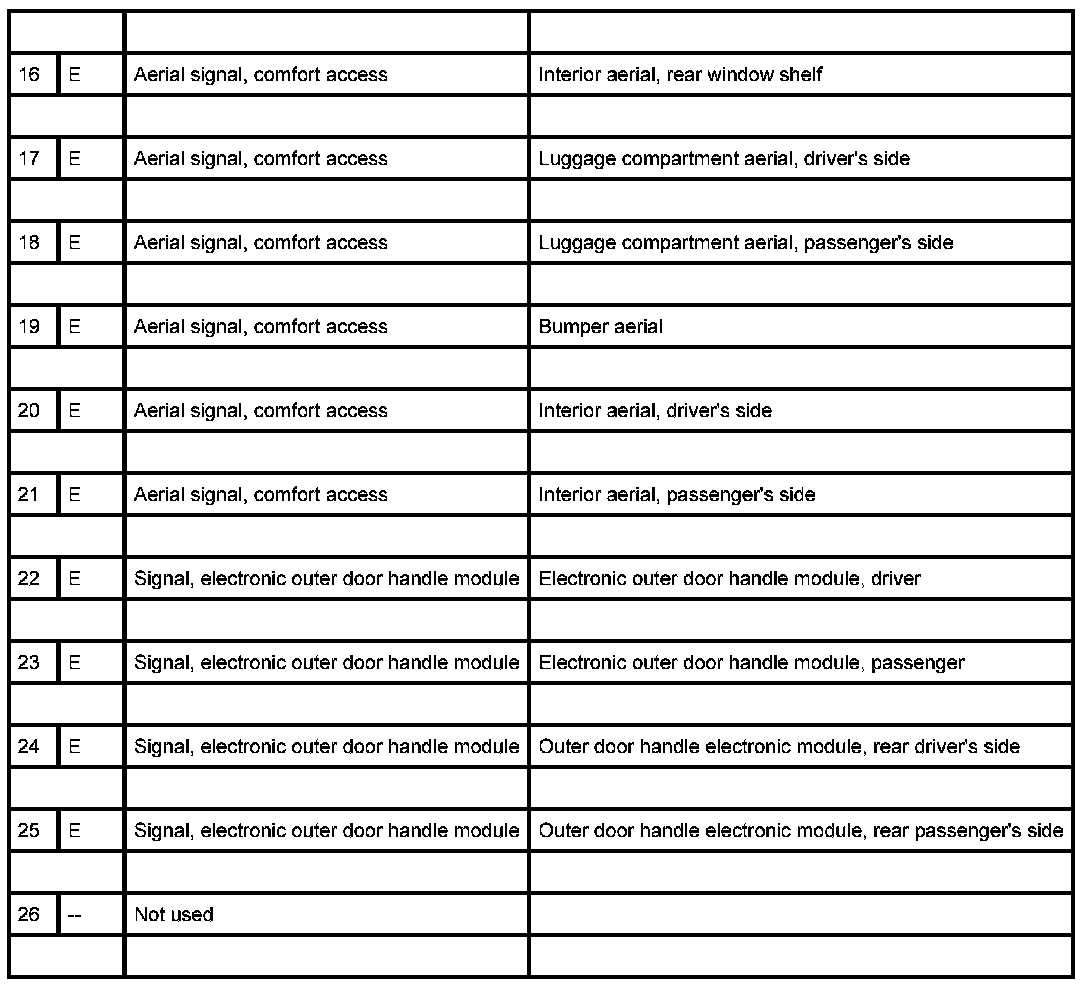

Pin 16 To 26:
A16*4B Adapter 614464, Storage Location C109
