A167 All-Round Vision Camera (VWS Video Switch)
A167 All-Round Vision Camera (VWS Video Switch)
A167 All-Round Vision
Camera
(VWS Video Switch)

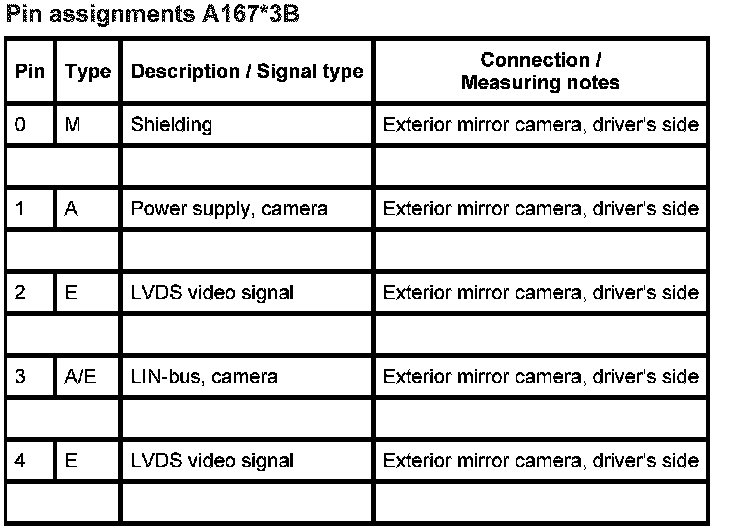

Pin assignments A167*3B
