750Li (F02) V8-4.4L Turbo (N63)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From A
>>
A11_3B
A11_3B
A11_3B
A11 Crash Safety Module (USA_LHD)

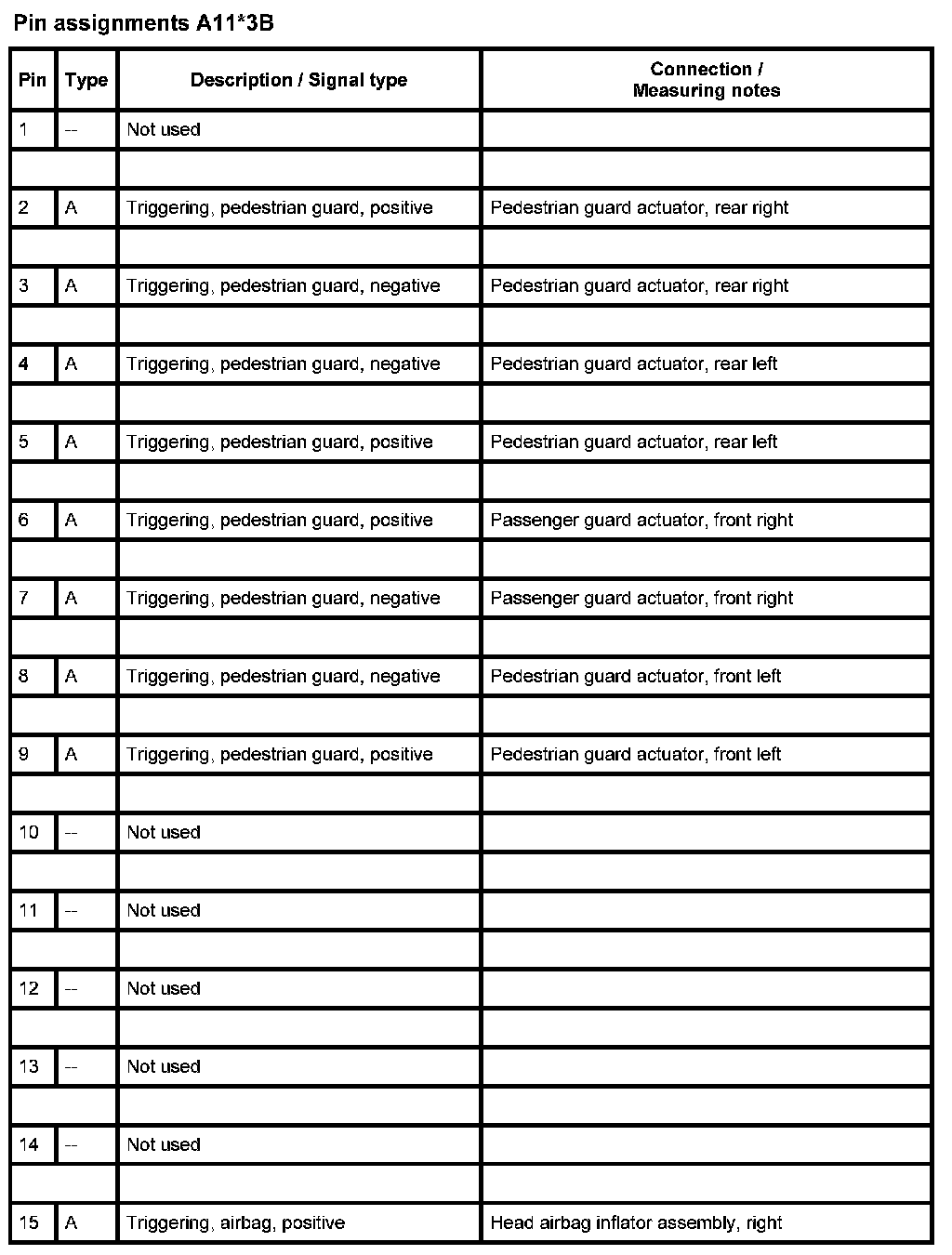

Pin 1 To 15:

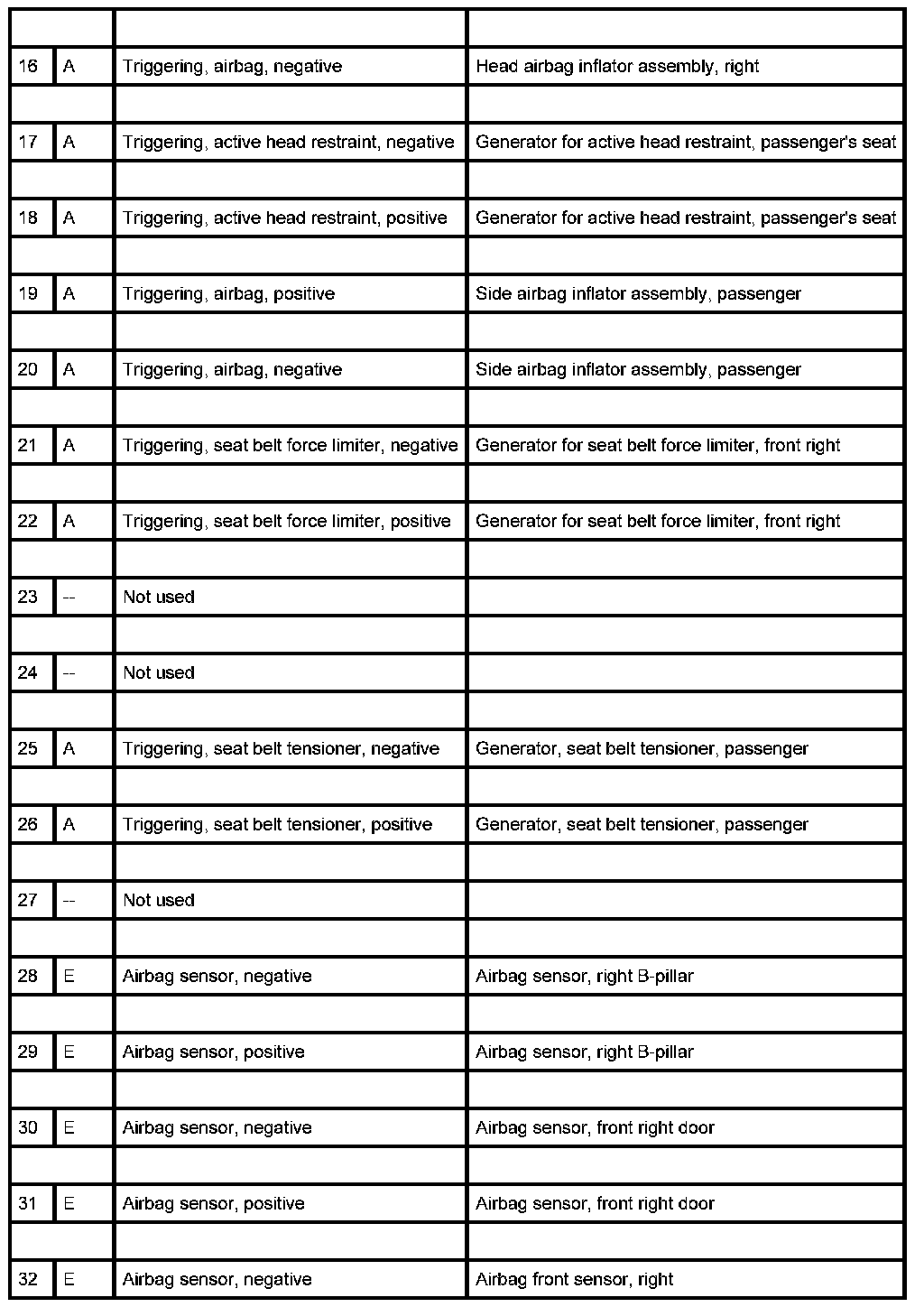

Pin 16 To 32:

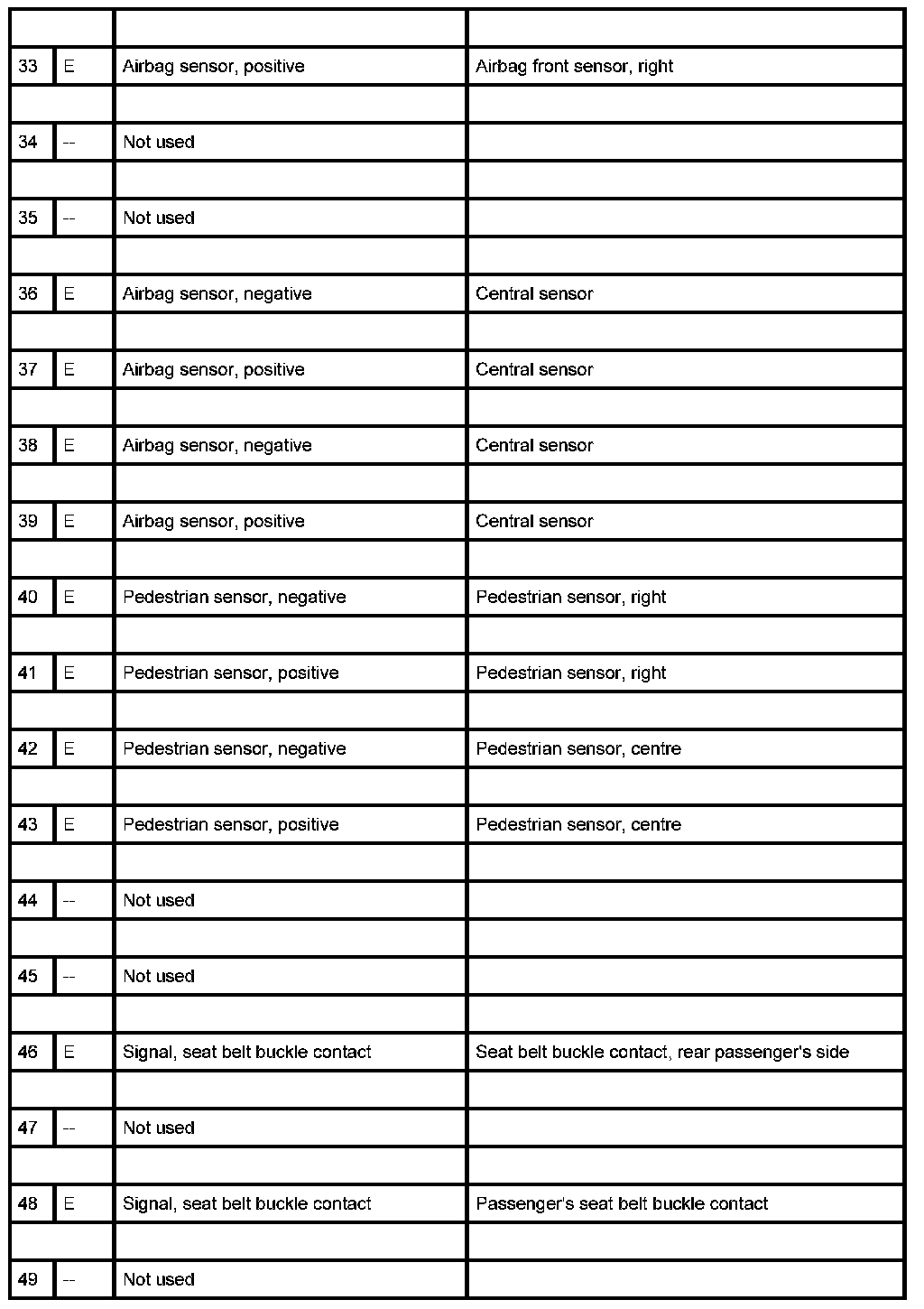

Pin 33 To 49:

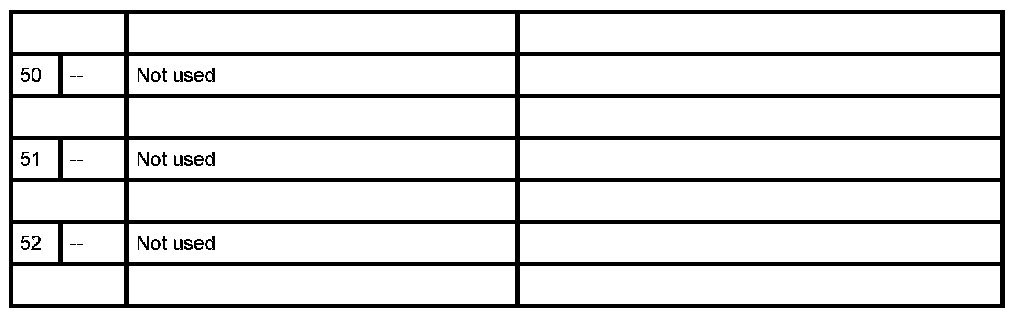

Pin 50 To 52:
A11*3B Adapter 121304, Storage Location N204
