A11_2B



A11_2B

A11 Crash Safety Module (USA_LHD)

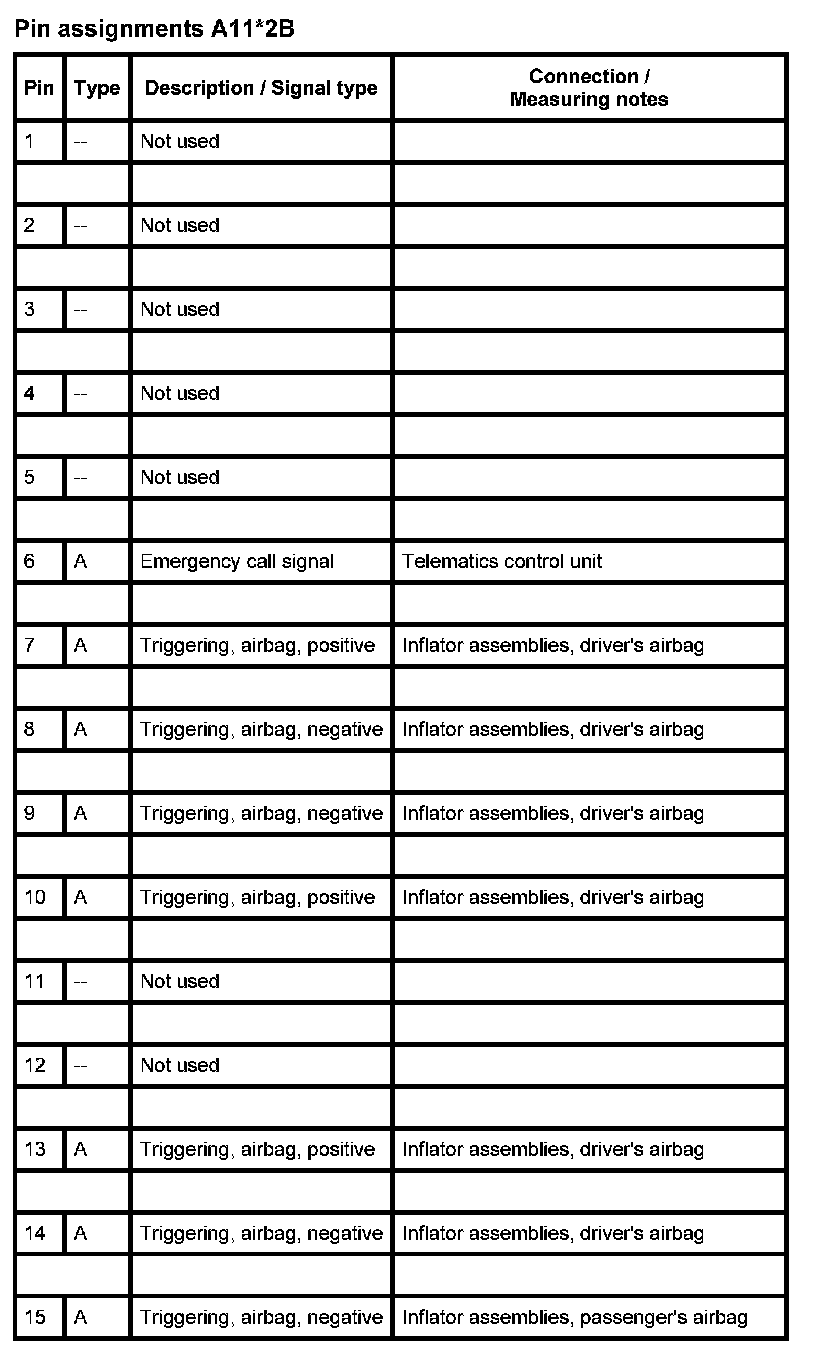

Pin 1 To 15:

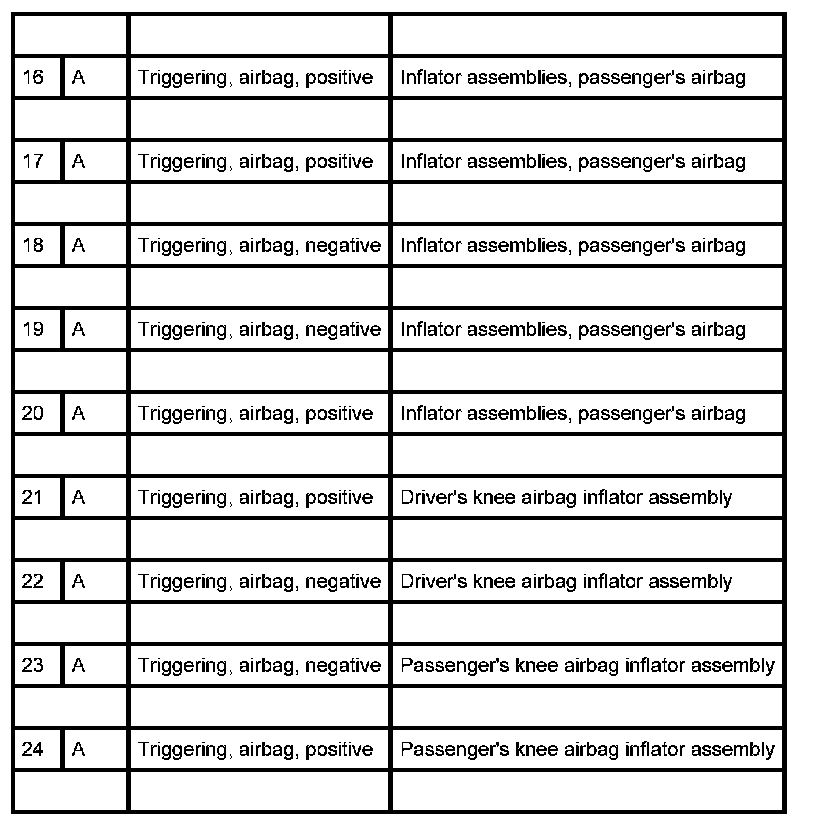

Pin 16 To 24:

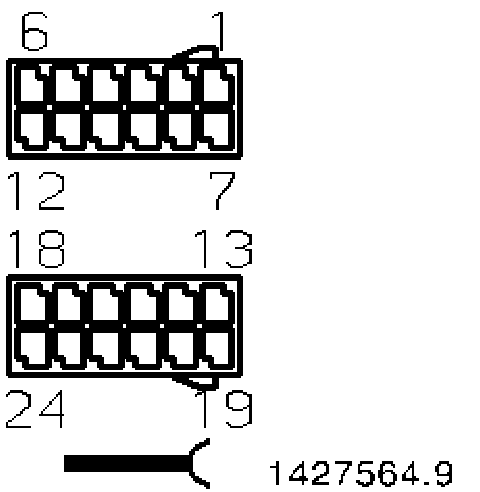

A11*2B Adapter 121302, Storage Location N202
