Home >> BMW >> 2009 >> 750Li (F02) V8-4.4L Turbo (N63) >> Repair and Diagnosis >> Diagrams >> Components >> Components With M >> M32 Drive, Seat-Back Angle Adjustment, Driver

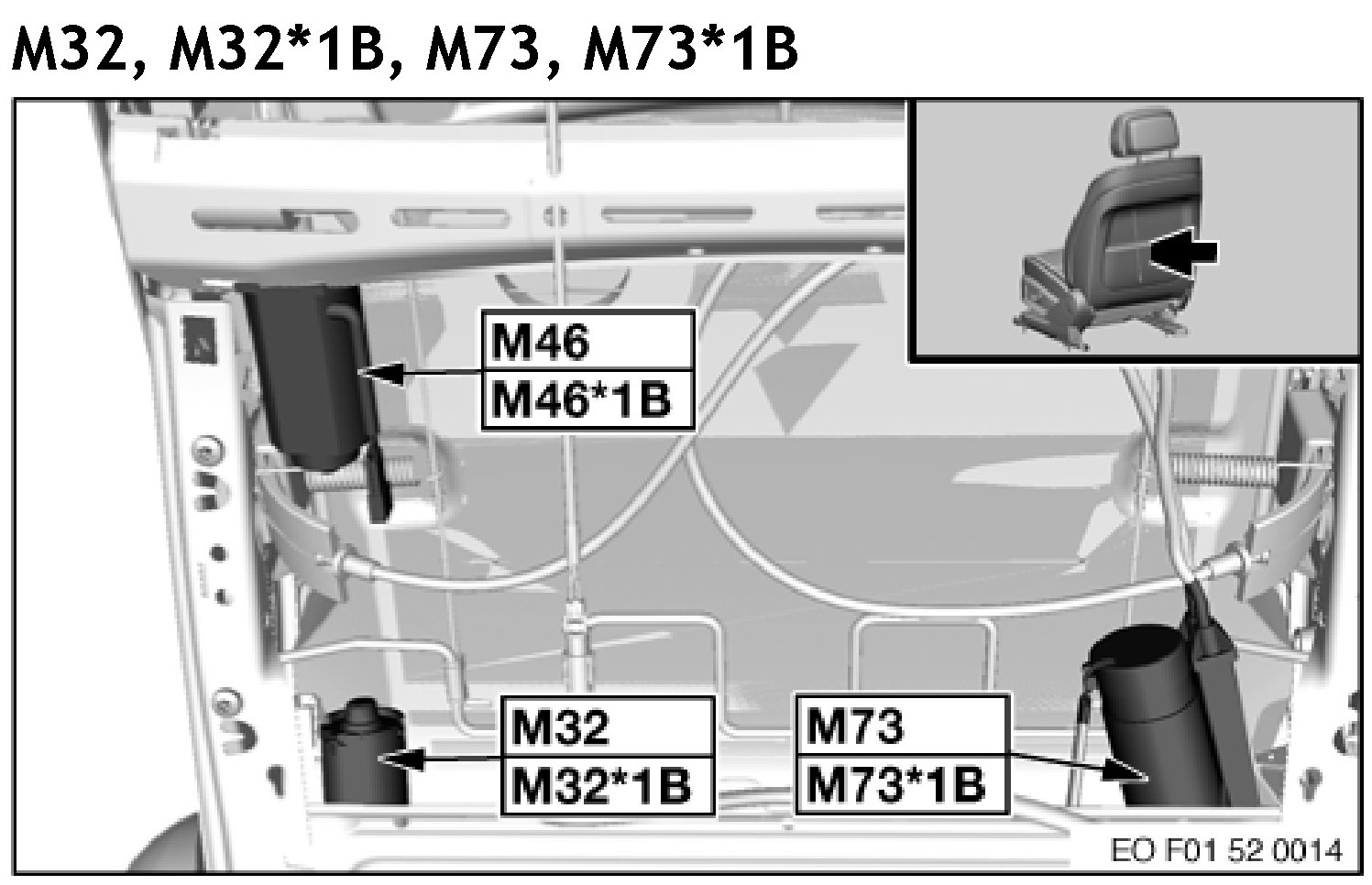

M32 Drive, Seat-Back Angle Adjustment, Driver



M32 Drive, Seat-Back Angle Adjustment, Driver

M32, M32*1B, M73, M73*1B
