52 14 426 Replacing Seat Cover For Passenger Seat (Up to 08/09)

52 14 426 Replacing seat cover for passenger seat (up to 08/09)







WARNING:
US/CND front passenger seat (with OC3 mat) only:
The upholstery can only be removed in conjunction with the OC3 mat.
If upholstery is defective, both parts may only be replaced together.
After fitting new upholstery, enable OC3 mat with BMW diagnosis system.







The operation for removing the upholstery with/without OC3 mat is described in:
- Replacing seat cover for front seat
- Removing seat occupancy mat







Enabling seat occupancy detection (OC3 mat):
- Connect BMW diagnosis system
- Release seat occupancy detection
- Delete fault memory if necessary







Seat with air conditioning:
Unfasten plug connection.

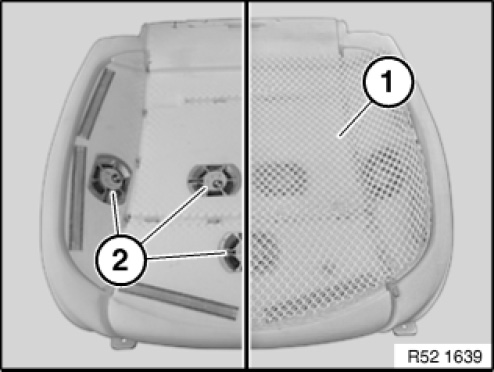

Remove dividing net (1).
Remove fans (2) from upholstery.







Installation note:

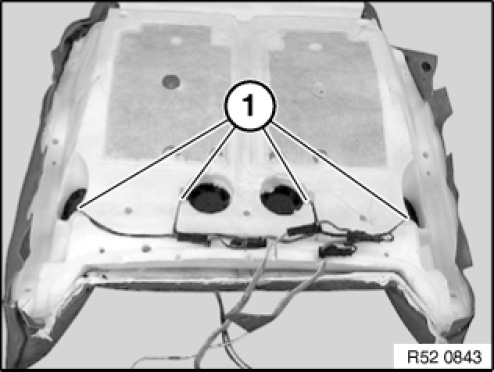

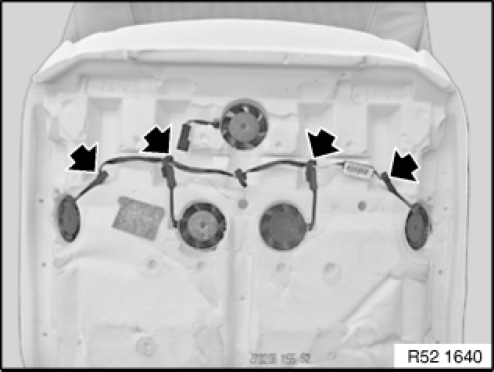

Make sure fans have correct cable routing (1).
