Thigh Support Holder on Front Left or Right Seat (Sports/Electric)

52 16 095 - Removing and installing/replacing thigh support holder on front left or right seat (sports/electric)





Necessary preliminary tasks:
- Move thigh support forwards as far as possible

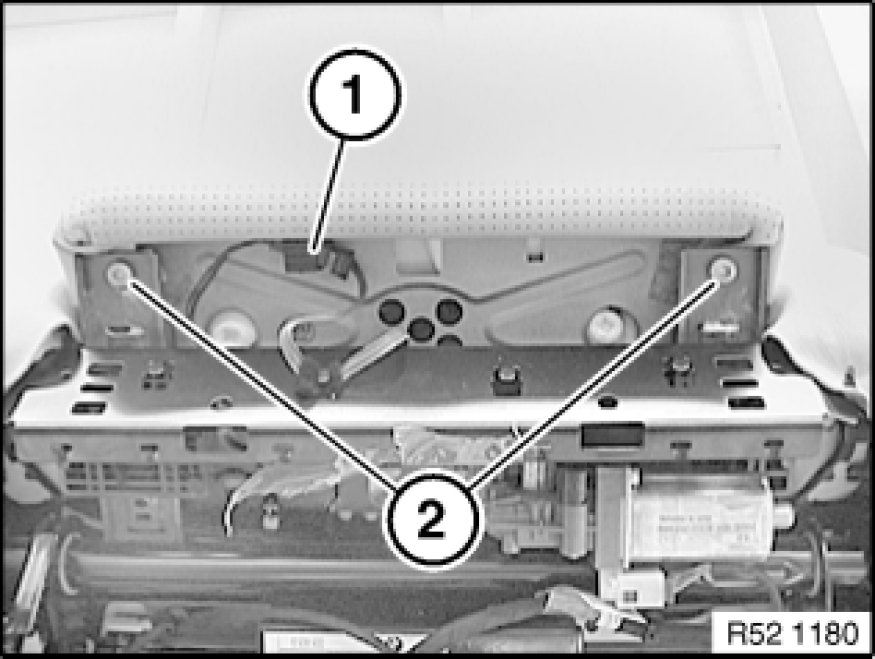

Unfasten plug connection (1) and disconnect.
Release screws (2).

Installation:
Insert screws (2) with Loctite.
Tightening torque 52 10 11AZ 52 10 Front Seats.





Detach seat cover (1) in marked area from carrier (2) for thigh support.
Feed plug out of carrier (2) for thigh support.
Remove carrier (2) for thigh support.
