Padding For Front Seat Thigh Support

52 16 ... - Replacing padding for front seat thigh support

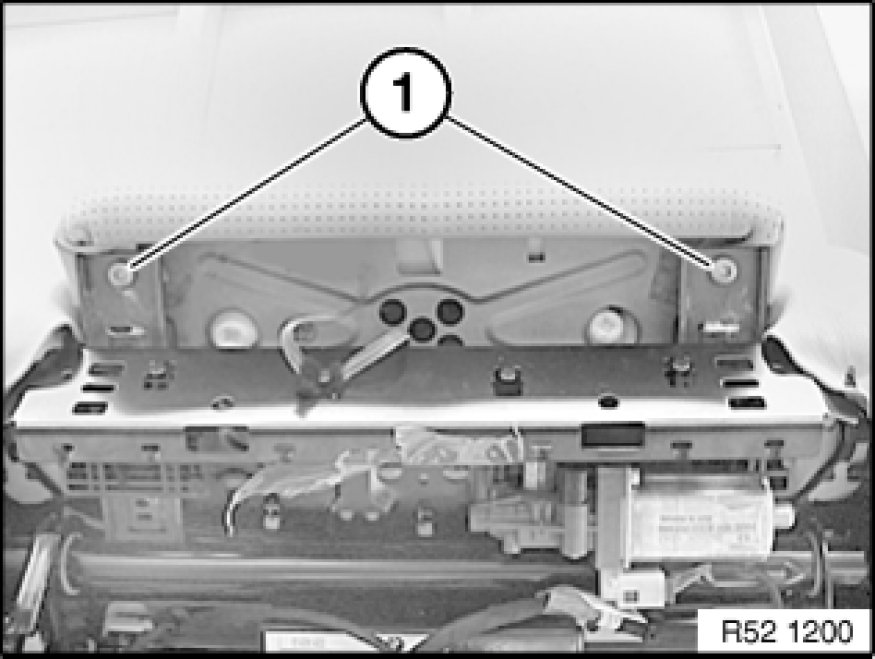

Run thigh support forward as far as possible.
Release screws (1).

Installation:
Insert screws (1) with Loctite.
Tightening torque 52 10 11AZ 52 10 Front Seats.

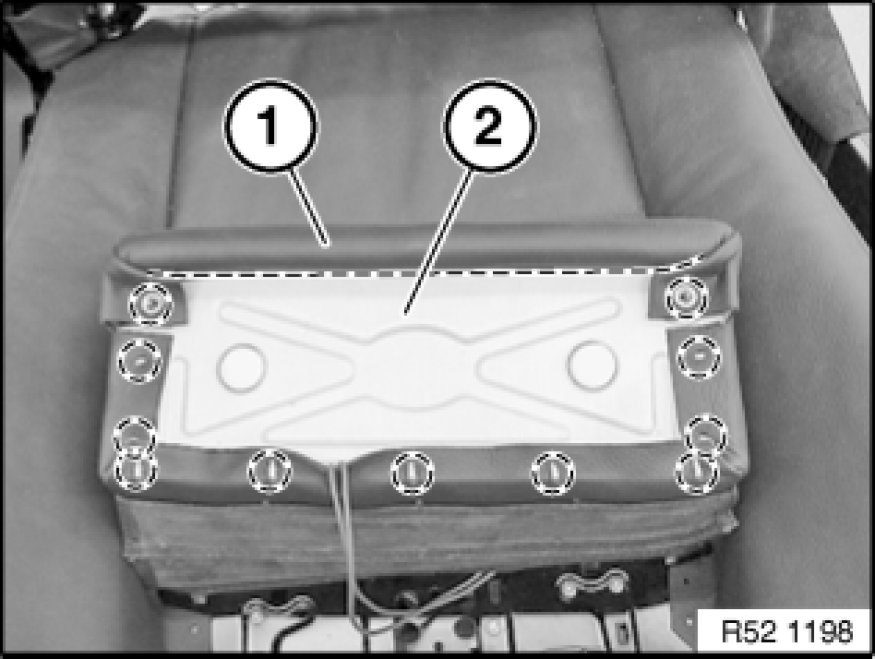

Unhook seat cover (1) from marked area.
Remove carrier (2) for thigh support.





For seat heating optional extra only:

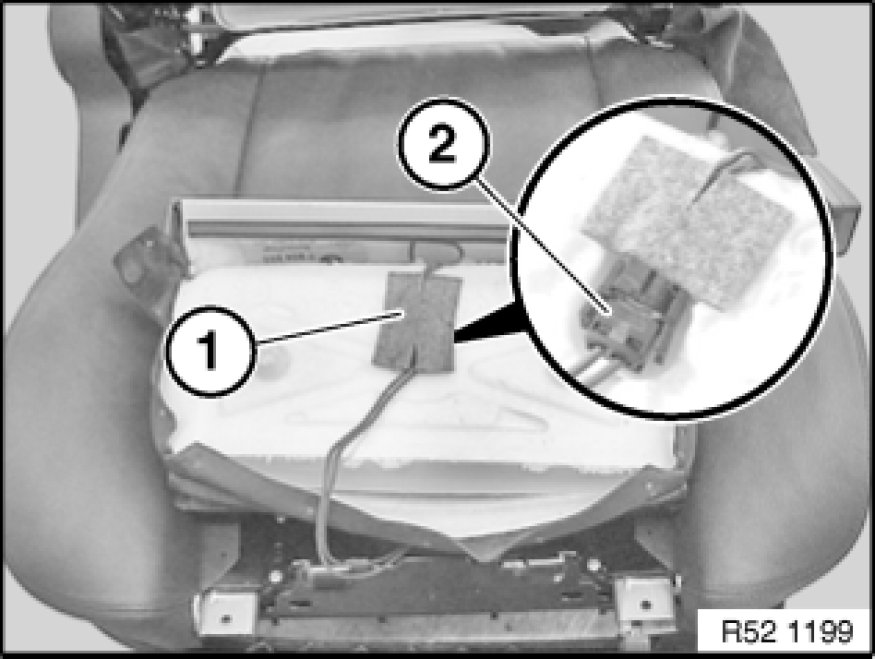

Carefully detach felt (1) from thigh support.
Unfasten plug connection (2) and disconnect.

Installation:
Ensure correct cable routing.

Remove padding from cover.
