Padding for Front Seat Thigh Support

52 17 ... - Replacing padding for front seat thigh support





Necessary preliminary tasks:
- Remove thigh support Left or Right Thigh Support





Note:

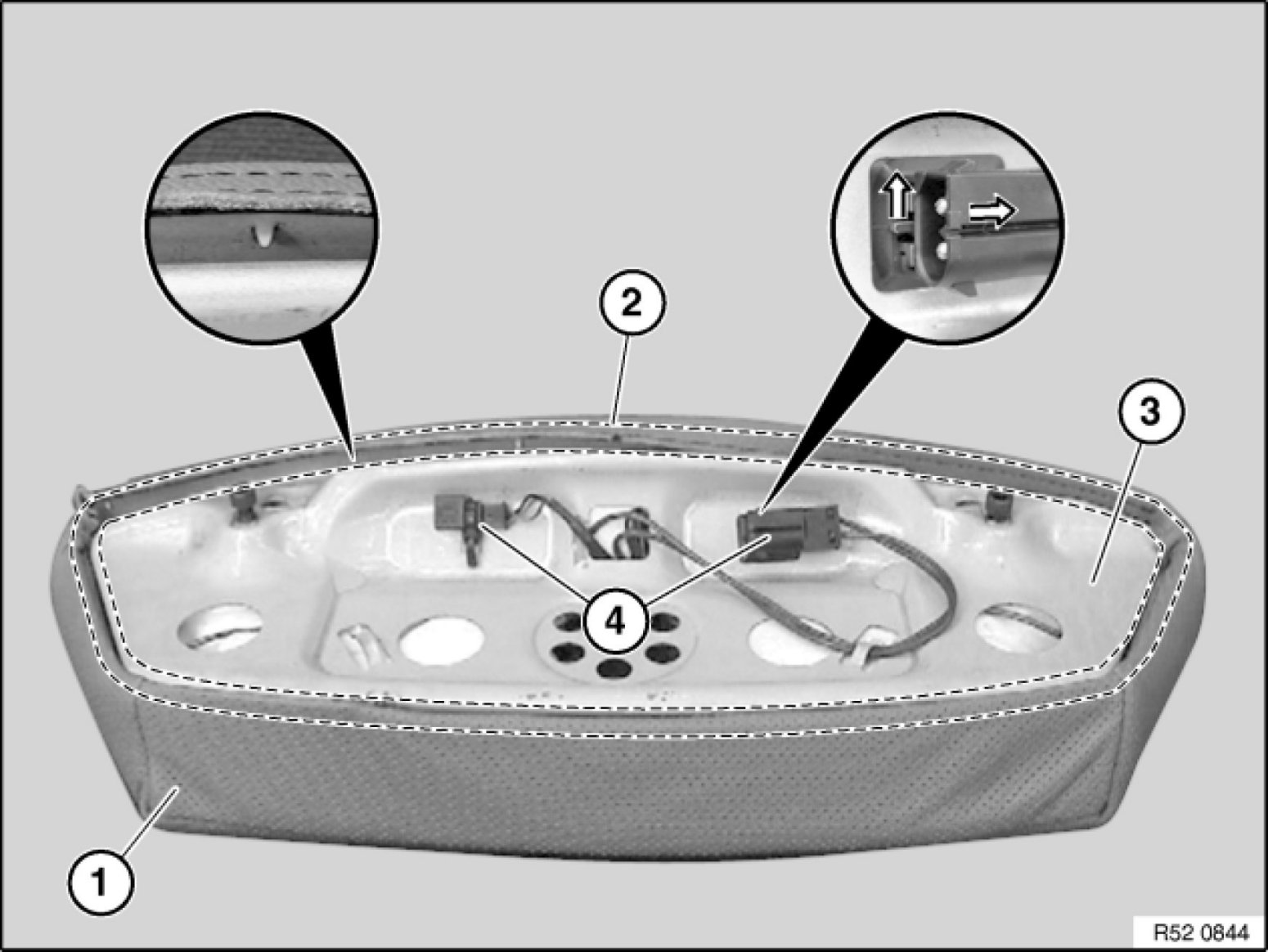

Picture shows versions with air conditioning and seat heating.

Lever out cover welt in area (2).

Installation:
Cover welt is fastened by hooks in trim (3).

Remove plug connections (4) and feed out through trim (3).

Remove trim (3) from padding and cover (1).

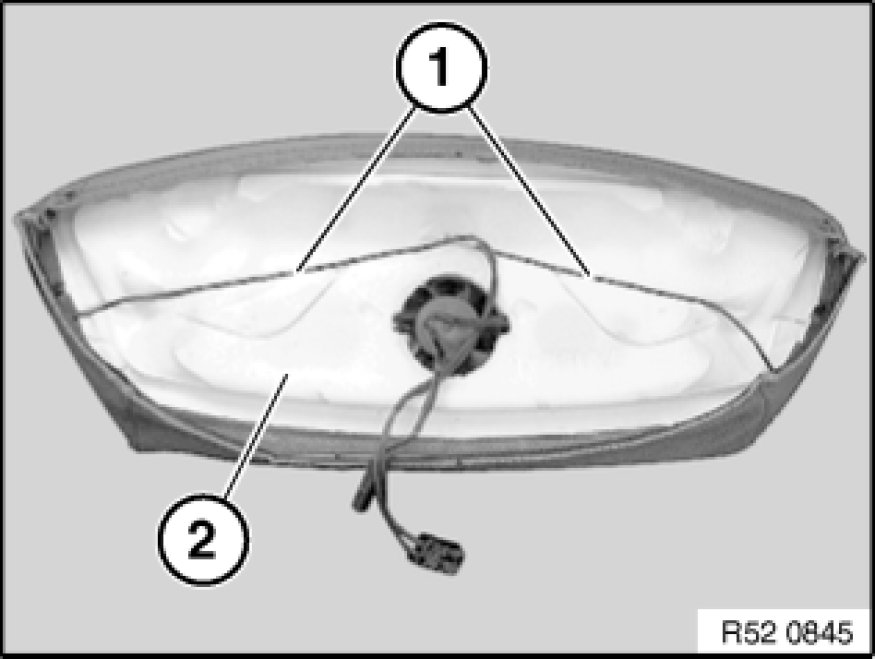

Version with seat heating or air conditioning:
Feed out cable (1) and remove padding (2).

Installation:
Ensure correct cable routing (1).

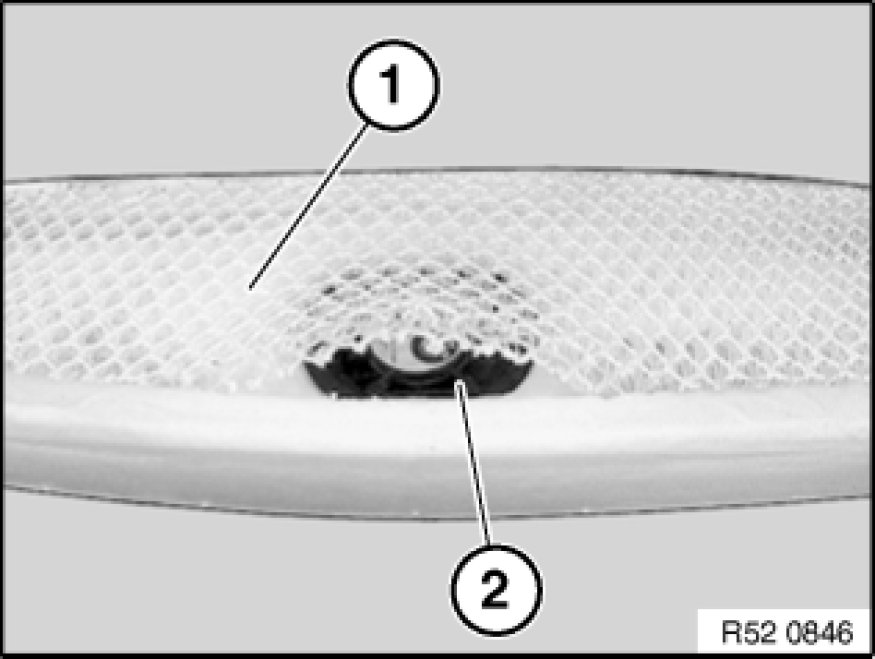

Version with air conditioning:
- Remove separating net (1).
- Lift out fan (2).
