Padding For Drivers Seat Backrest

52 14 422 - Replacing padding for driver's seat backrest





Necessary preliminary tasks:
- Remove backrest cover

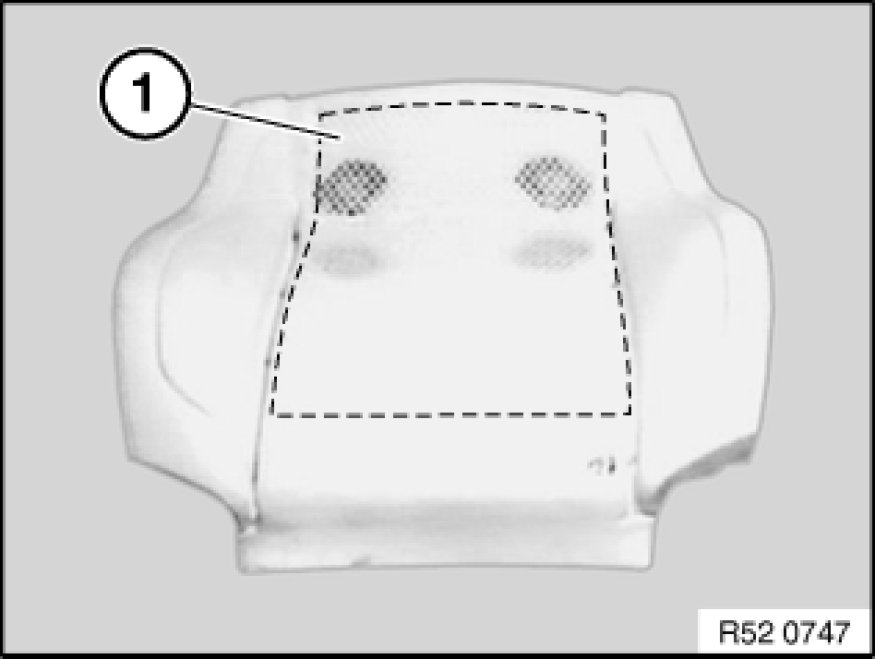

Remove dividing net (1) towards top.

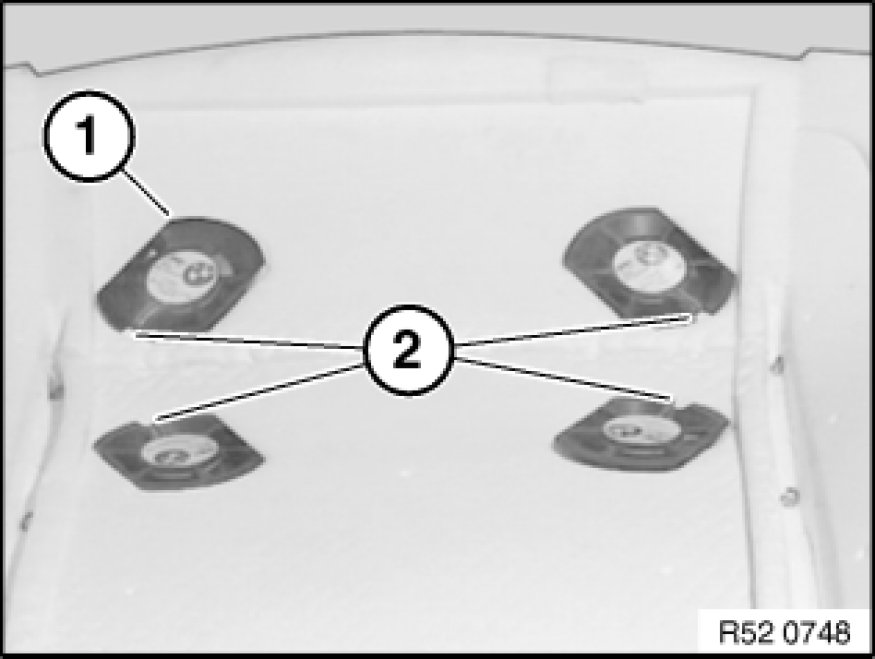

Remove fan (1) towards top.

Installation:
Make sure fans have correct cable routing (2) (cables point to each other).
