Outer Upper Rail Trim

52 14 ... - Removing and installing outer upper rail trim





Move seat backwards and upwards.
Unclip trim (1) towards front.





Driver's seat only:

Note:
Version with anchor fitting tensioner.

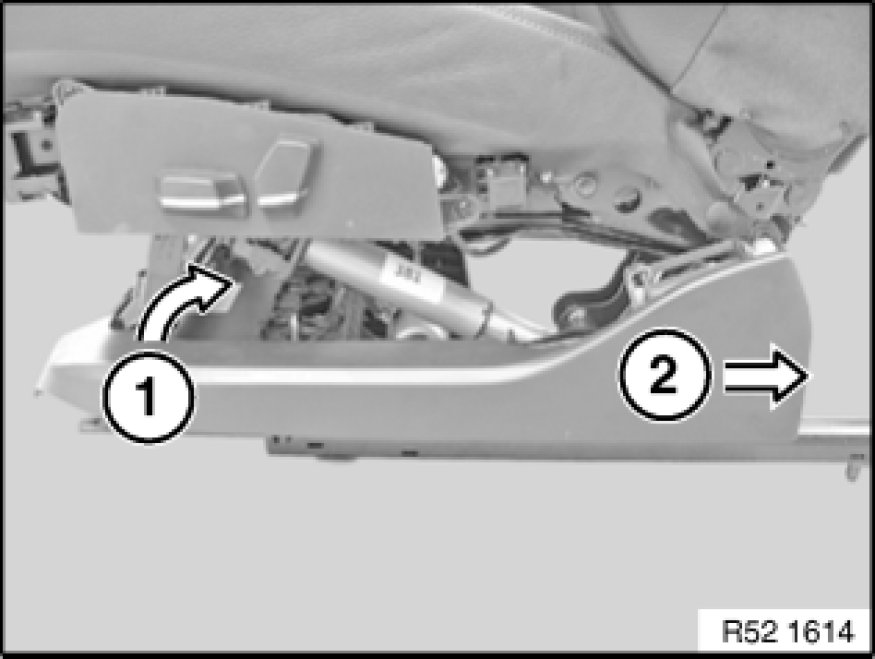

Feed trim out of seat mechanism:
1. upwards,

2. slide towards rear

Feed out trim.
