Covers On Seat Rails

52 14 ... - Removing and installing covers on seat rails





Front cover:
Move front seat as far back as possible.

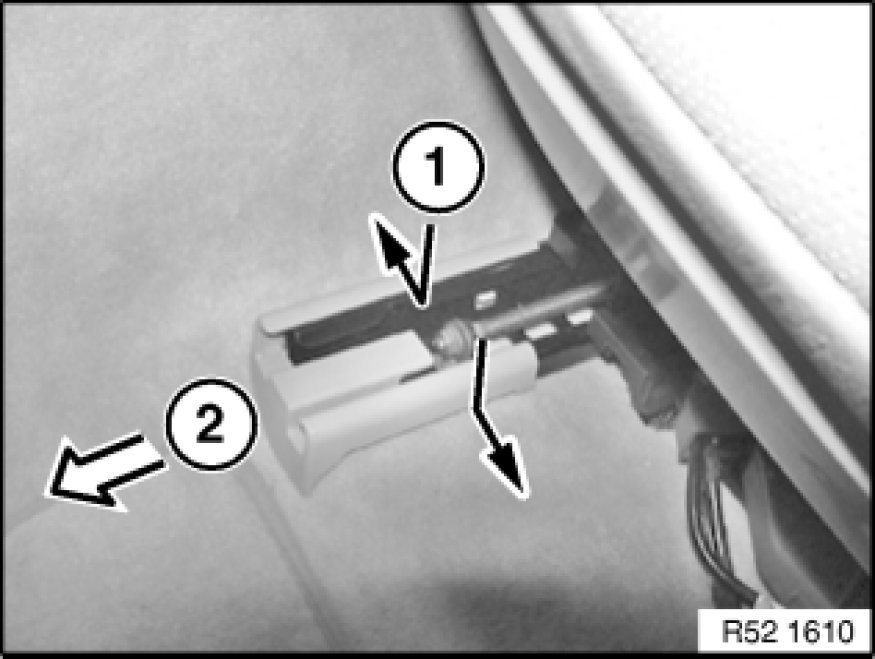

1. Press retaining lugs of cover with screwdriver downwards and carefully lift off sideways from seat rail
2. Simultaneously detach cover

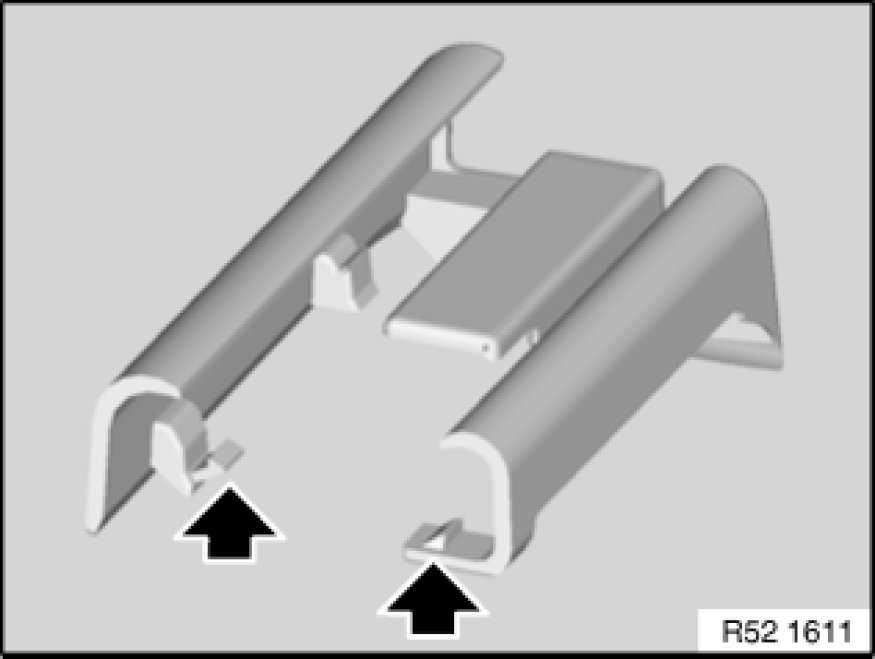

Overview of front cover.

Installation:
Retaining lugs must not be damaged.





Rear cover:
Move front seat as far forward as possible.

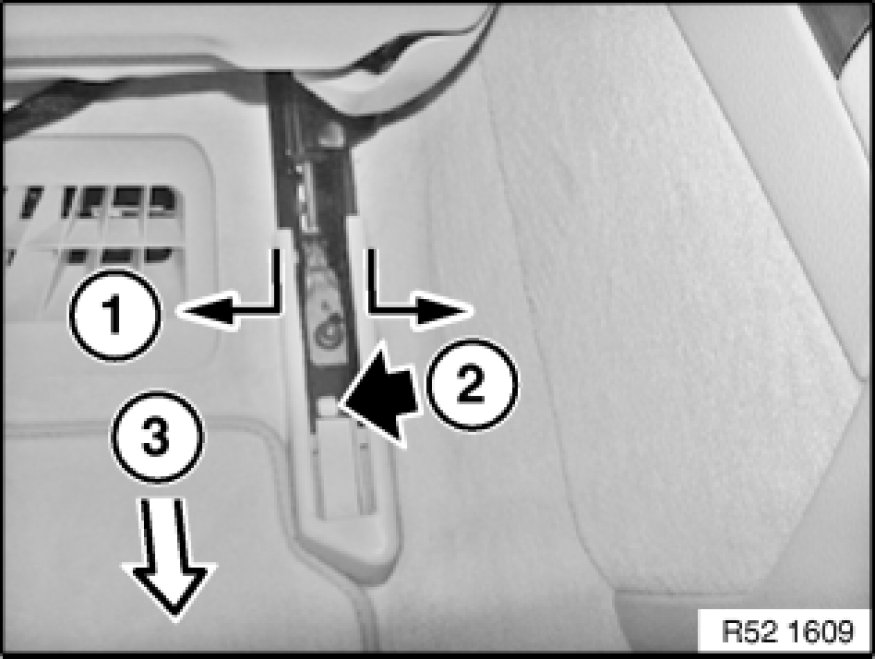

1. Press retaining lugs of cover with screwdriver downwards and carefully lift off sideways from seat rail
2. Press locking tab
3. Simultaneously detach cover





Overview of rear cover.

Installation:
Retaining lugs must not be damaged.
