Carrier Plate For Rear Cabin Monitor

52 14 209 - Removing and installing carrier plate for rear cabin monitor





Special tools required:
- 52 0 050 52 0 050 Pliers





Necessary preliminary tasks:
- Remove rear cabin monitor 65 50 125 Removing and Installing/Replacing Left or Right Rear Monitor

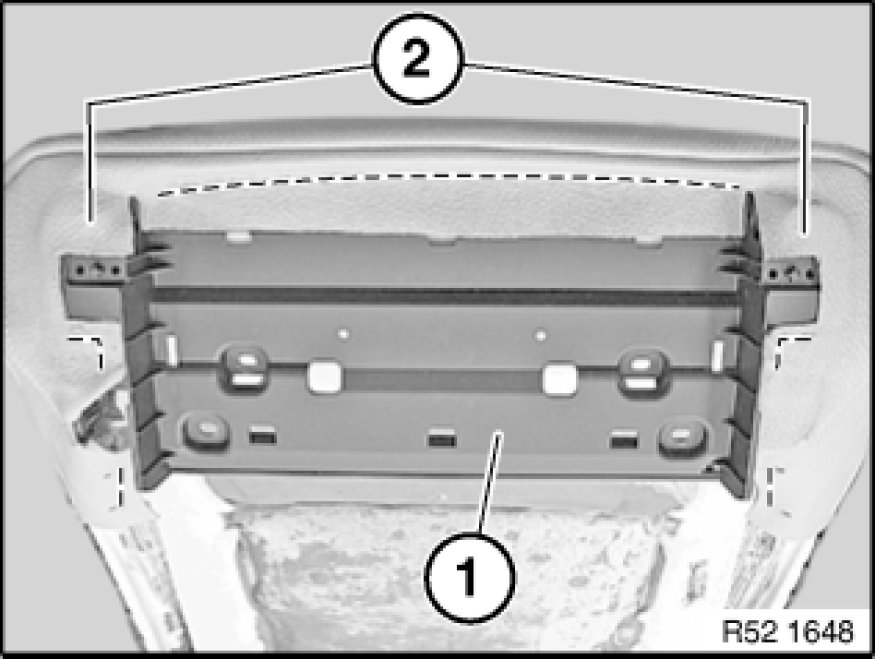

Release tacker in marked area from carrier plate (1).
Remove retainers (2) at top left and right.

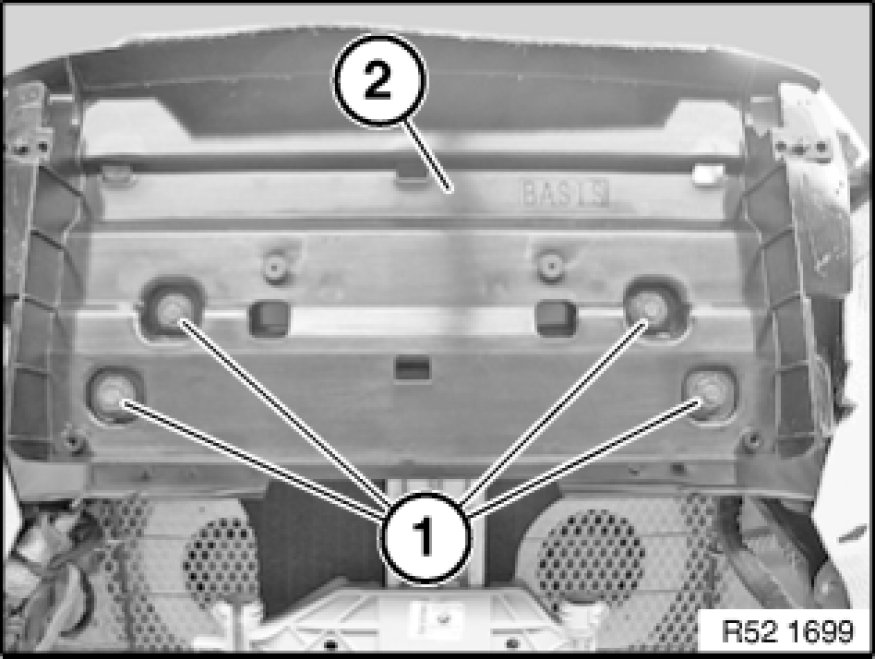

Unscrew nuts (1).
Remove carrier plate (2).





Installation:
Mount head restraint to pretension backrest cover.
The seam of the backrest cover must not be wavy and must be flush with the backrest frame top edge.
Align backrest cover centrally.
Tack backrest cover with pneumatic tacker (sourcing reference: see BMW workshop equipment) front inside outwards to carrier plate (1).
/ Tacker on carrier plate at top.
4 Tacker on left and right in side area.
Bend new retainers closed with pliers 52 0 050 52 0 050 Pliers.
Backrest cover must not show any folds.
