52 14 403 Replacing Seat Cover For Front Passenger Seat (Normal/Electrical) (Up to 08/09)

52 14 403 Replacing Seat Cover For Front Passenger Seat (Normal/Electrical) (Up To 08/09)

Special tools required:







Necessary preliminary tasks:
- Remove front passenger seat
- Remove rear panel on front seat backrest
- Remove inner cover on front seat
- Remove switch combination







WARNING:
US/CND front passenger seat (with OC3 mat) only:
To avoid damaging the OC3 mat, it is essential to carry out the following operations with extra care.







When replacing seat cover:
If seat cover is defective, seat cover and padding with OC3 mat must be replaced together.
New seat cover is supplied with upholstery, OC3 mat and if necessary seat heating.

When replacing padding with OC3 mat:
If OC3 mat or upholstery is defective, both parts may only be replaced together.
These must be fitted with the seat cover from the car.







Enabling seat occupancy detection (OC3 mat):
- Connect BMW diagnosis system
- Release seat occupancy detection
- Delete fault memory if necessary.

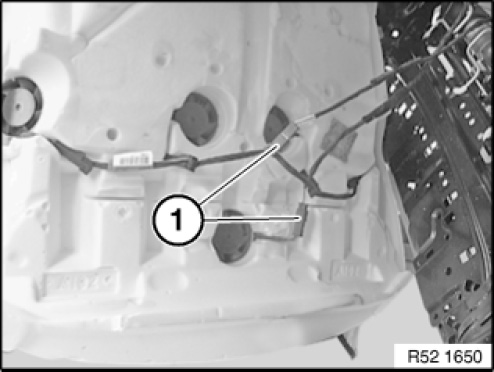

Cut open cable strap (1).

Installation note:
Replace defective cable strap.

Raise tab and pull connector from connector housing.

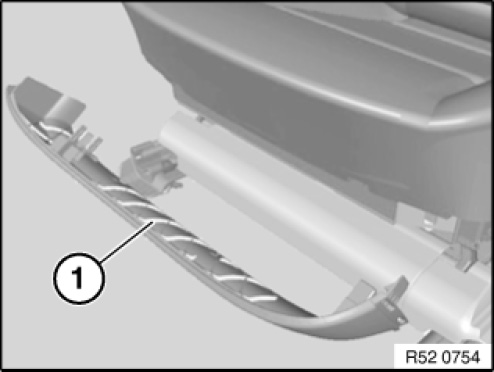

Remove cover (1) on front seat:
- Press clip on door side outwards
- Press clip on tunnel side upwards
- Pull cover (1) forwards out of seat mechanism

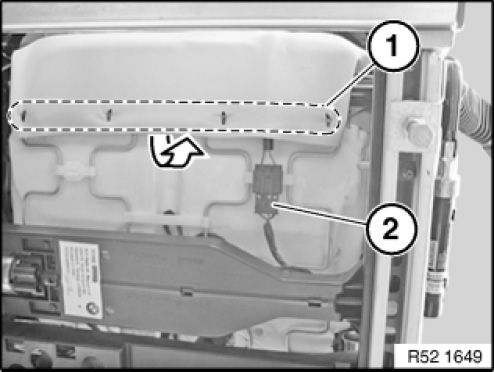

Unhook seat cover on at all attachment points (1).

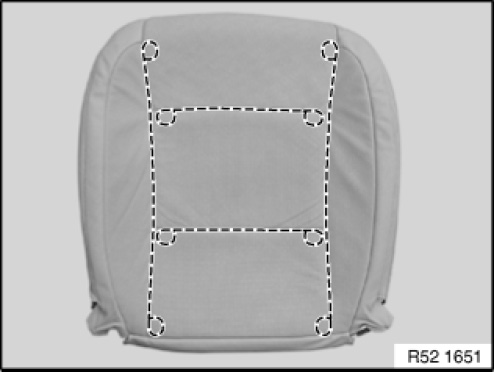

Unhook seat cover in marked area (1).

With seat heating only as optional equipment:
Disconnect plug connection (2).
Remove seat cover complete with upholstery.







With climate control only as optional equipment:
Release plug connections (1) and disconnect.

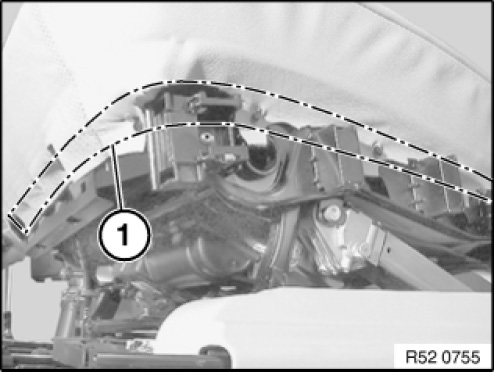

Detach all clamps in side area from longitudinal wires (1).

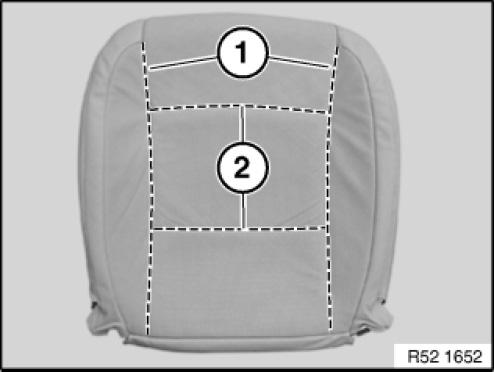

Pull trim wires (1) forward out of seat cover.
Carefully fold back seat cover and release clamps from cross-wires (2).
Remove seat cover from upholstery.

IMPORTANT: Remove all remnants of clamps from seat cover and upholstery.







Replace seat cover:
Pull trim wires out of seat cover.

Installation note:
Slide trim threads into new seat cover. If necessary, cut mounting for trim threads.







Installation note:

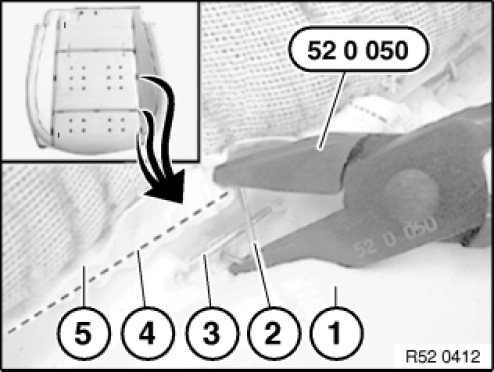

Bend new clamp (2) 52 0 050closed with pliers.
1. Upholstery
2. Clamps
3. Trim wire in seat cover
4. Trim wire in upholstery
5. Seat cover
