Information on parallel installation of TCU and ULF-SBX-H
In this vehicle, the following control modules are installed in parallel:
- TCU Telematic control module
- ULF-SBX-H Interface box High

These control modules implement the following functions:
- TCU Telematic Control Module
The TCU covers all the telephone and Telematic functions. All antennas as well as other telephone hardware are connected to the TCU.
- ULF-SBX-H interface box High
With parallel installation, the ULF-SBX-H exclusively operates the optional extra 6FL "USB audio port".
Telephone functions are not implemented in this control module.

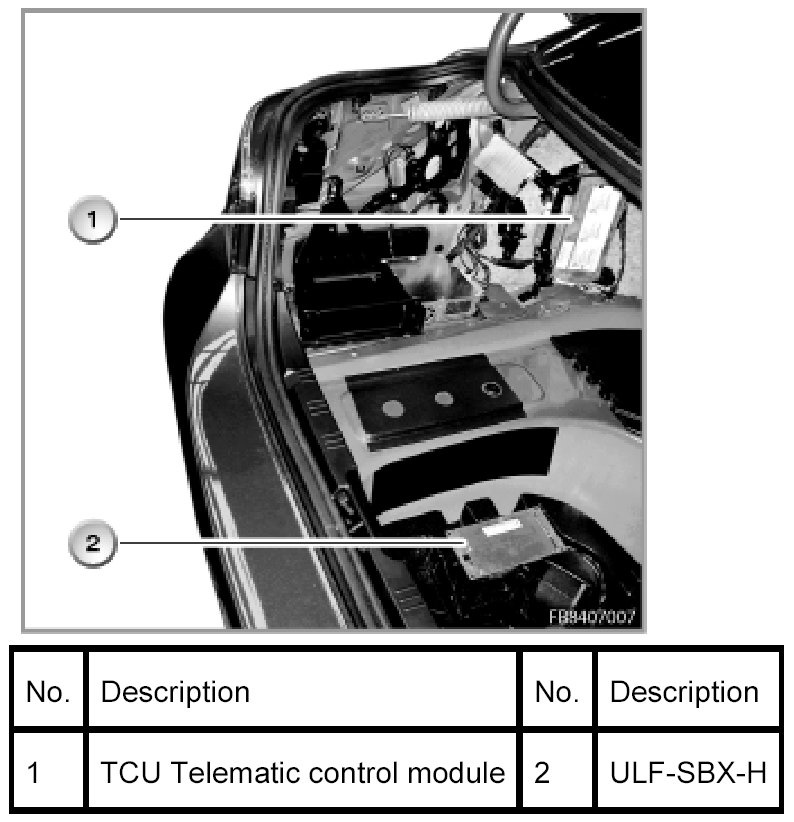

The installation location of the TCU Telematic Control Module and the ULF-SBX-H interface box High is shown below with the E60 as an example.







For advanced information on the basic layout and basic functions of the TCU and ULF-SBX-H, please consult the SBT.
