84 50 060 Removing and Installing/Replacing Bluetooth Aerial

84 50 060 Removing And Installing/Replacing Bluetooth Aerial (Up To 03/2010)







Necessary preliminary tasks:
- Remove both trim panels for roof pillar
- Remove both rear grab handles
- Remove interior roof light
- Remove upper B-pillar trim
- Remove both front grab handles

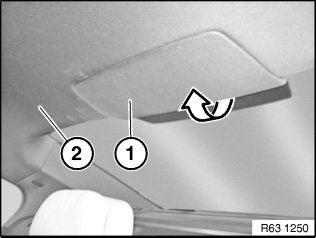

Remove auxiliary brake light trim (1) in direction of arrow from headlining (2)

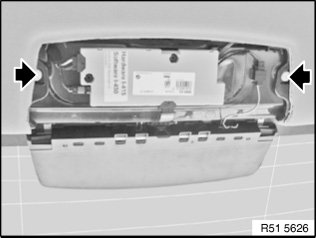

Unclip headlining.

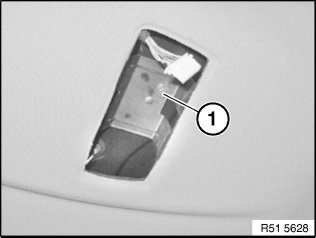

Release screw (1).







Partially lower headlining (1).

Installation note:
Make sure edge protection (2) is correctly seated.

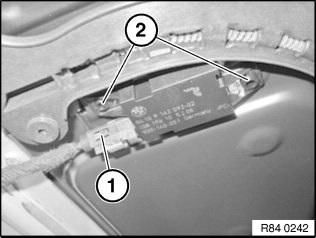

Unfasten plug connection (1) and disconnect.
Unclip Bluetooth aerial (2) and remove.
