Clutch Pedal Assembly: Service and Repair

35 31 000 - Removing and installing / replacing clutch pedal





Necessary preliminary tasks:
- Remove pedal trim 51 45 185 Removing and Installing/Replacing Panel For Pedals.
- Remove CAS control unit Service and Repair
Check function after completing tasks.

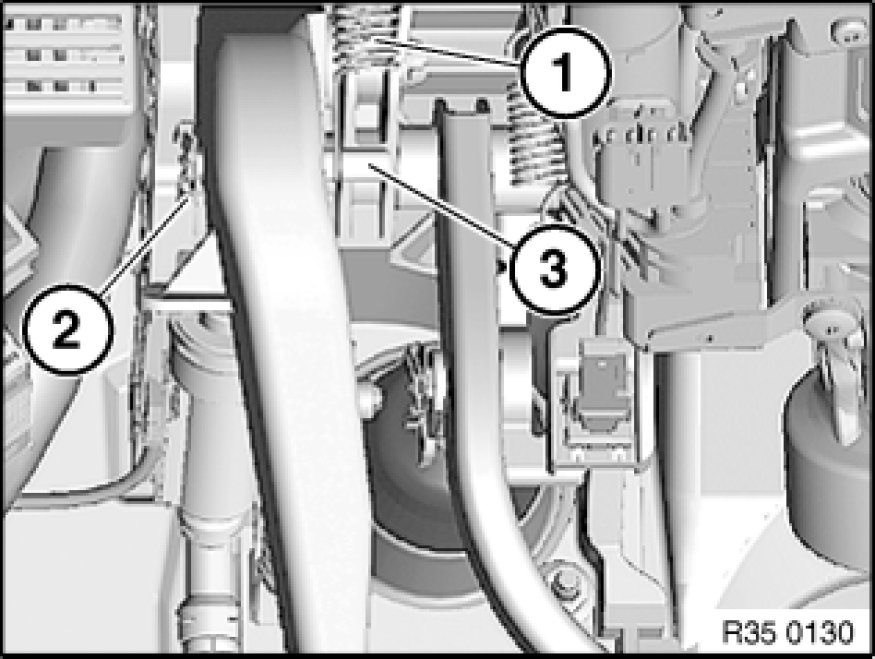

Disconnect return spring (1).
Unclip fastener (2).
Pull out pin (3).
If necessary, disconnect over-center helper spring.

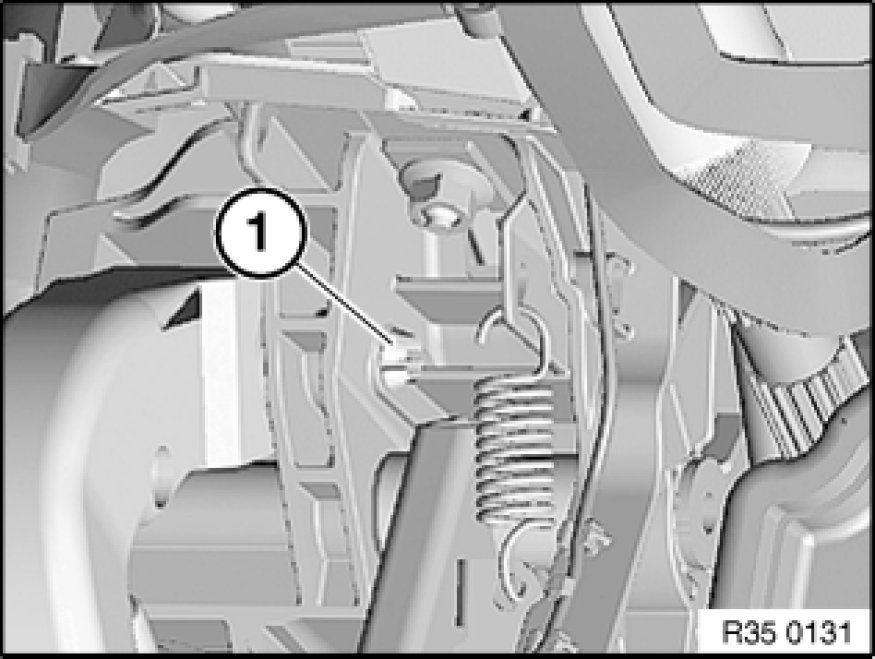

Press hook (1) together and pull out pin.

Installation:
Replace pin.

Remove clutch pedal.
