Replacing Torque Converter Shaft Seal (GA6HP26Z/6HP32Z)

24 31 010 - Replacing torque converter shaft seal (GA6HP26Z/6HP32Z)





Special tools required:
- 00 1 450
- 24 0 200 24 0 200 Support
- 24 2 351 24 2 350 Extractor
- 24 2 352 24 2 350 Extractor
- 24 2 353 24 2 350 Extractor
- 24 2 360 24 2 360 Drift





Necessary preliminary tasks:
- Remove automatic transmission Removing and Installing Automatic Transmission (6HP26Z)





Important!
After completion of work, check transmission oil level.
Use only approved transmission oil.
Failure to comply with this instruction will result in serious damage to the transmission.

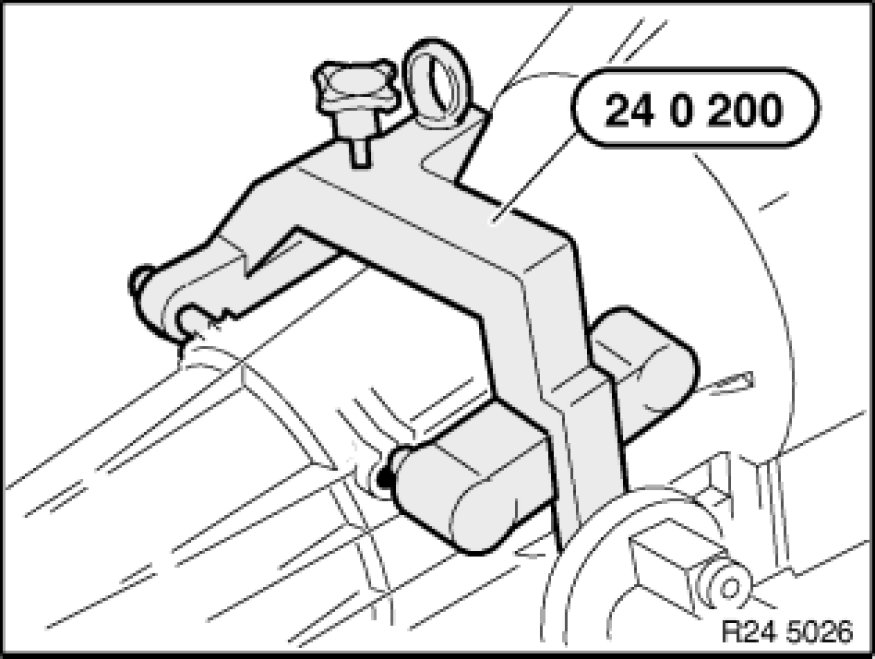

Secure transmission with special tool 24 0 200 24 0 200 Support to assembly stand 00 1 450.
Remove torque converter Service and Repair.

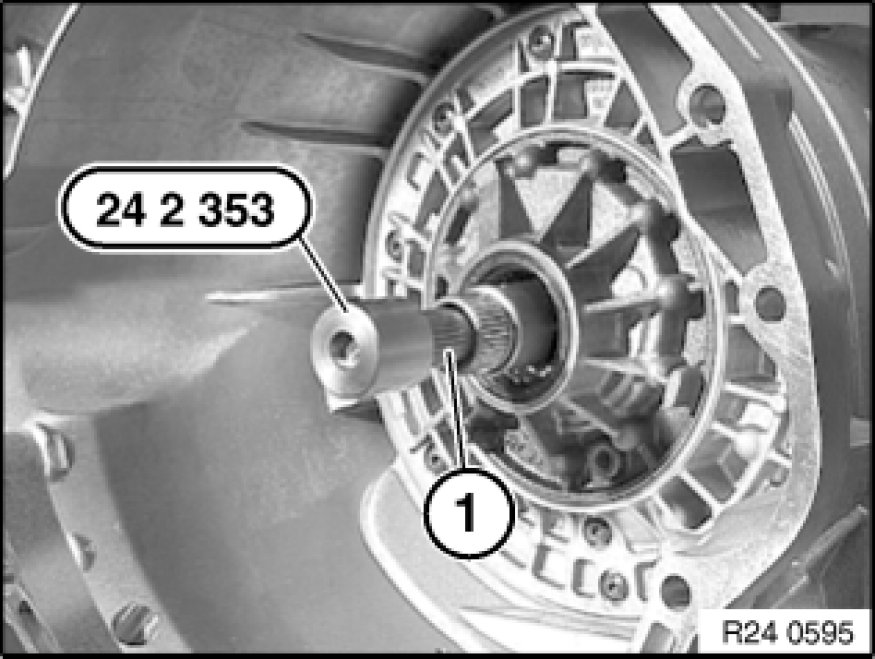

Attach special tool 24 2 353 24 2 350 Extractor to drive shaft (1).

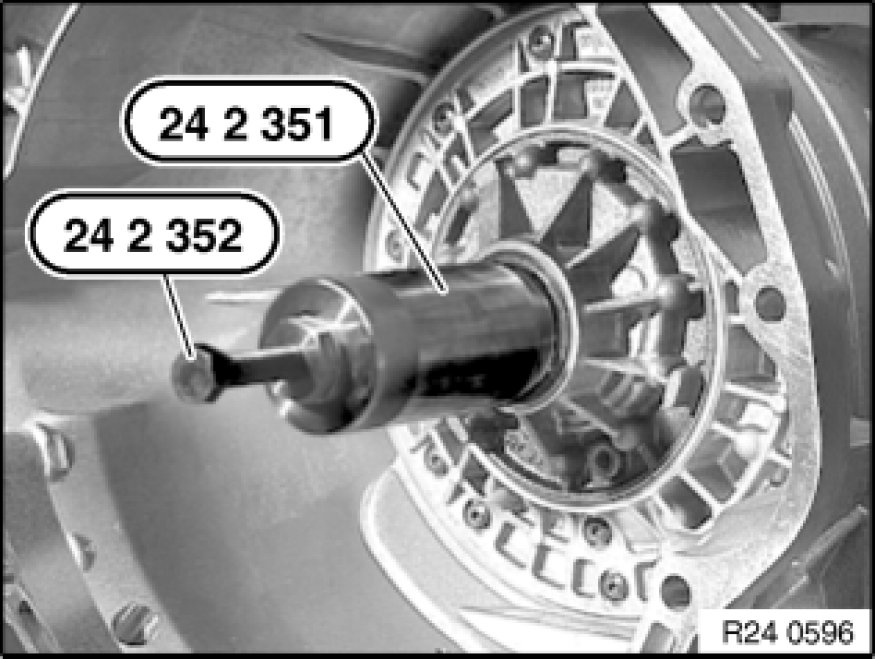

Screw in special tool 24 2 351 24 2 350 Extractor until it is firmly connected with shaft seal.
Screw in special tool 24 2 352 24 2 350 Extractor to remove shaft seal.





Oil sealing lip on shaft seal.

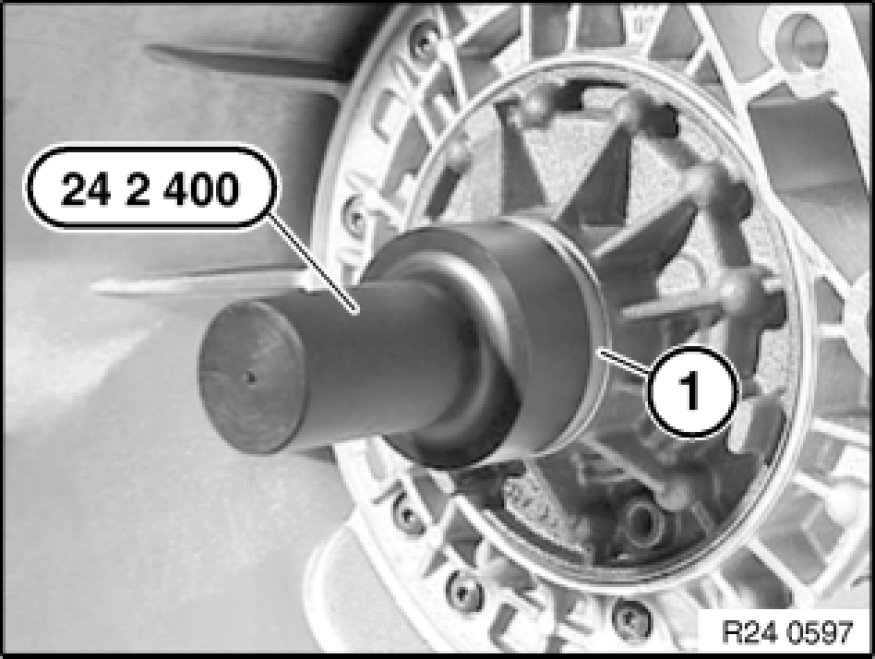

Drive in shaft seal (1) with special tool 24 2 360 24 2 360 Drift as far as it will go.
